Parts Location [07/2015 - ]: Illustration

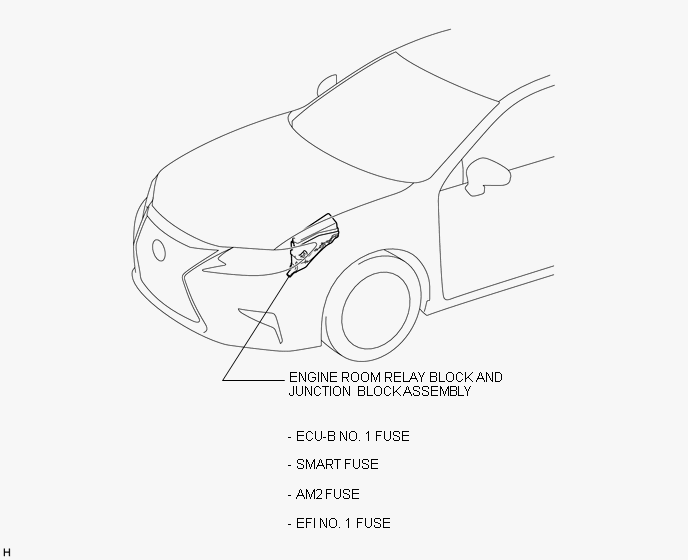

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (1 Of 6)
GTY634457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

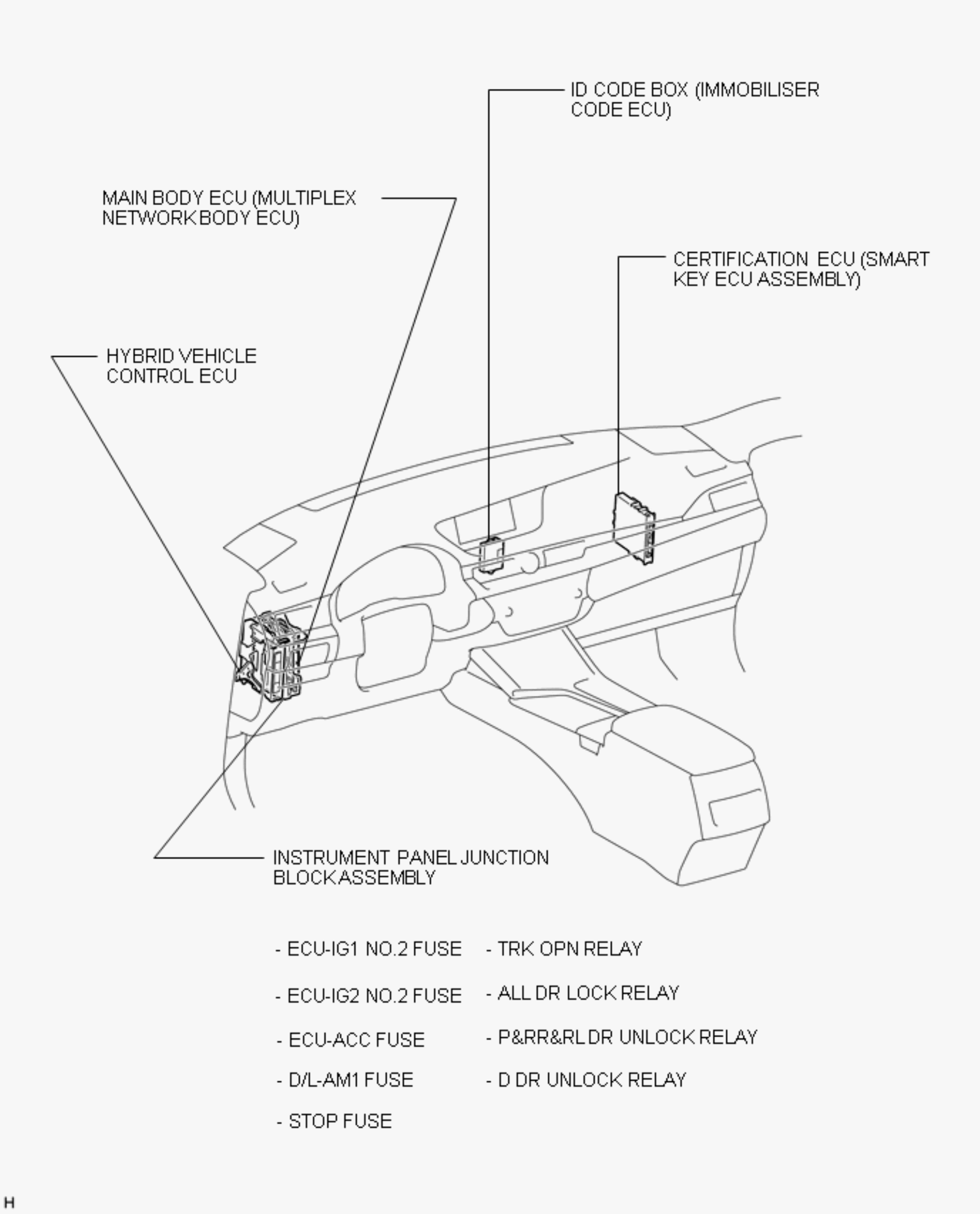

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (2 Of 6)
GTY648793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

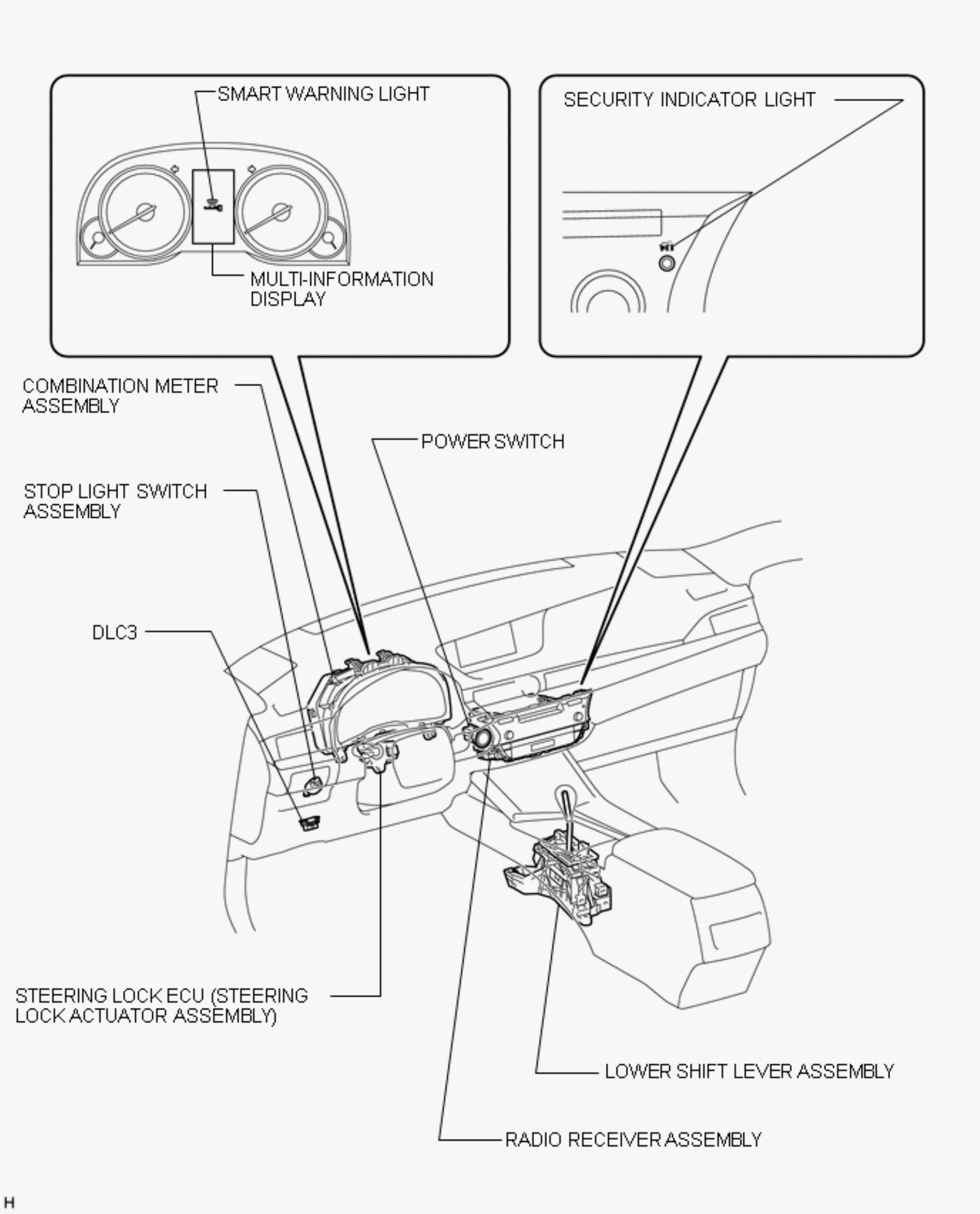

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (3 Of 6)
GTY644029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

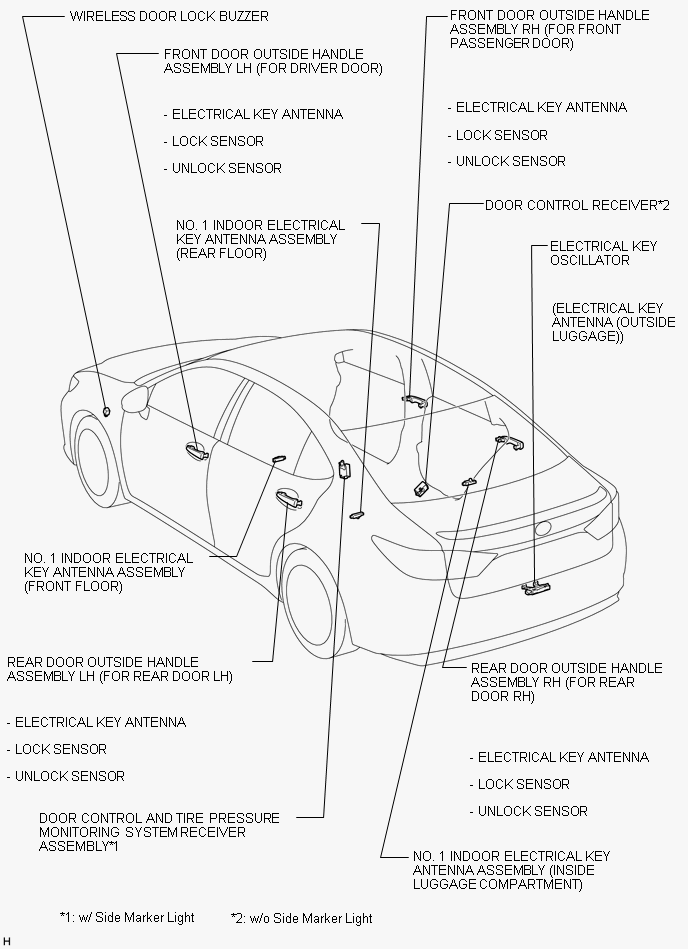

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (4 Of 6)
GTY681119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

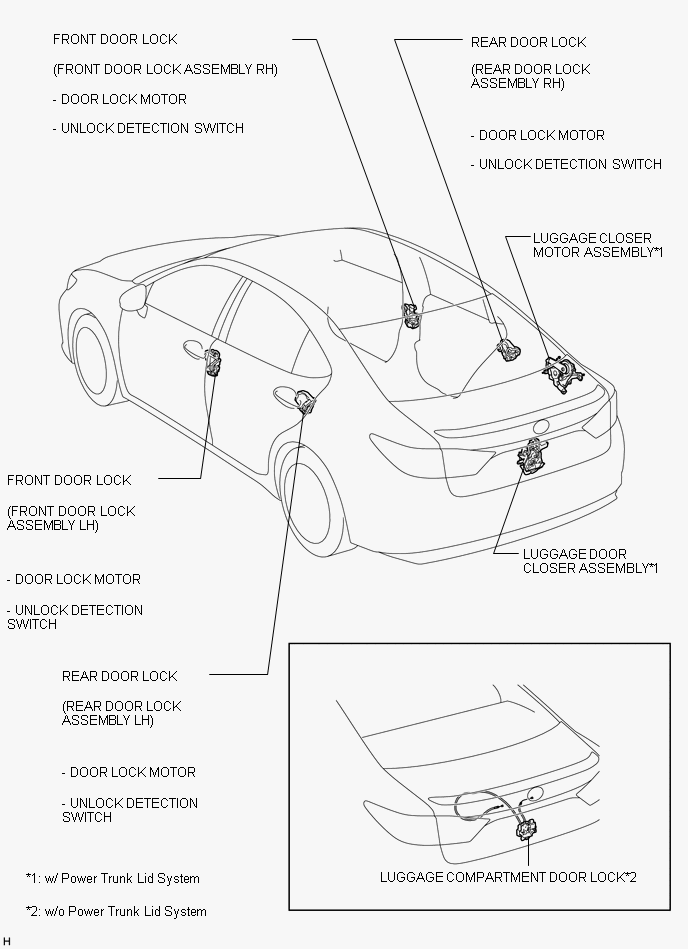

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (5 Of 6)
GTY682430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

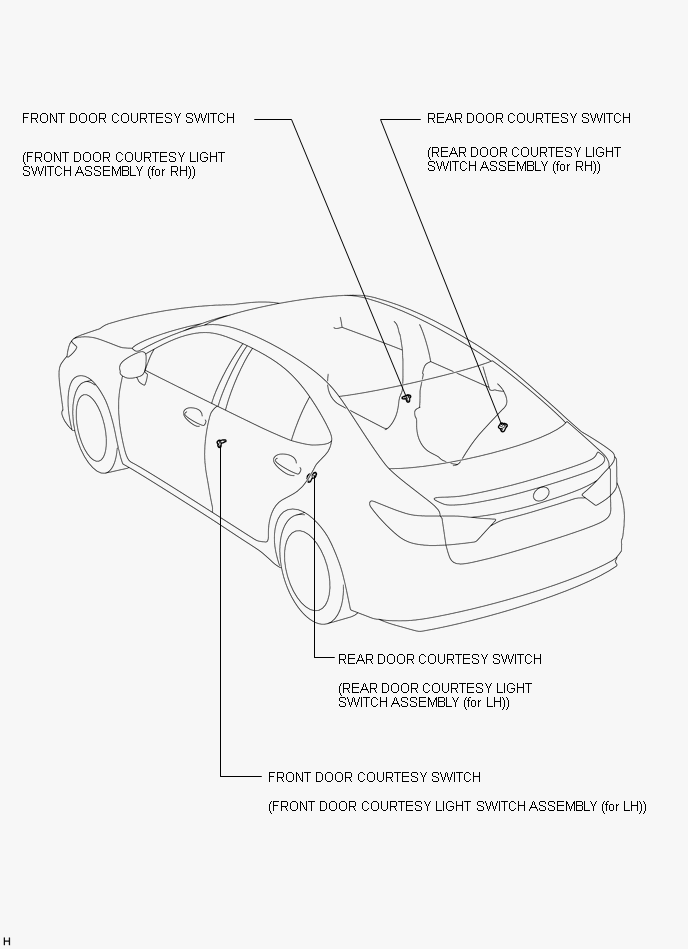

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (6 Of 6)
GTY684200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
