System Description [07/2015 - ]

SYSTEM DESCRIPTION

The following pattern will be used: "Operation" indicates user operation using the smart access system with push-button start. "Expected operation of the vehicle" indicates how a known good vehicle will react in accordance with each operation. "Suspected Area/Diagnosis" indicates suspected malfunctioning areas and tips for each diagnosis if the vehicle did not react as expected.

Example: Operation No.

Operation	-
Expected operation of the vehicle	-
Waveform or Output Value	-

Suspected Area	Diagnosis
-	-

BASIC PRECAUTIONS
1. DTC numbers and ECU Data Lists of the smart access system with push-button start can be checked using the Techstream.
2. Check for DTCs using the following procedure. If any DTCs are output, diagnose those DTCs first.
  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG).
  3. Enter the following menus: Body Electrical / Smart Key, Power Source Control or Starting Control / Trouble Codes.
3. When using the Techstream with the vehicle power switch off, connect the Techstream to the vehicle and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Access. While using the Techstream, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the Techstream and the vehicle.
4. If cancel is selected for the smart access system with push-button start customize setting, cancel the smart key cancel setting. Refer to CUSTOMIZE PARAMETERS [07/2015 - ]
DIAGRAM OF SMART ACCESS SYSTEM WITH PUSH-BUTTON START

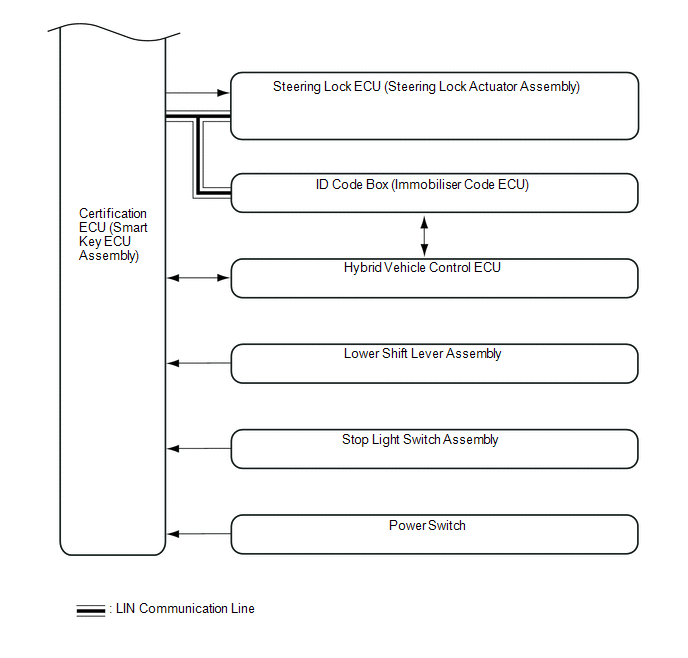

Fig 1: Smart Access System Diagram (With Push-Button Start System) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

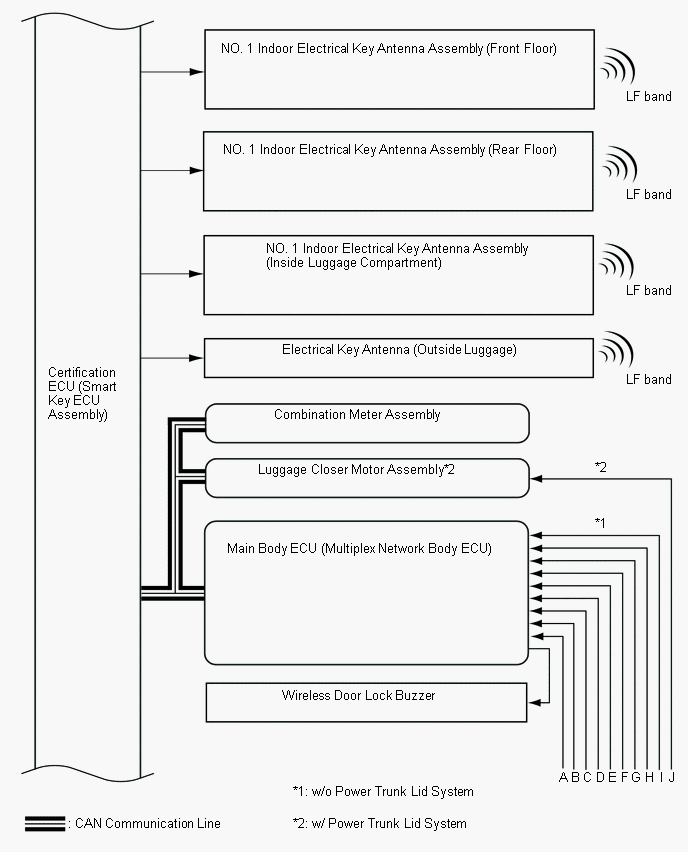

Fig 2: Smart Access System Diagram (With Push-Button Start System) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

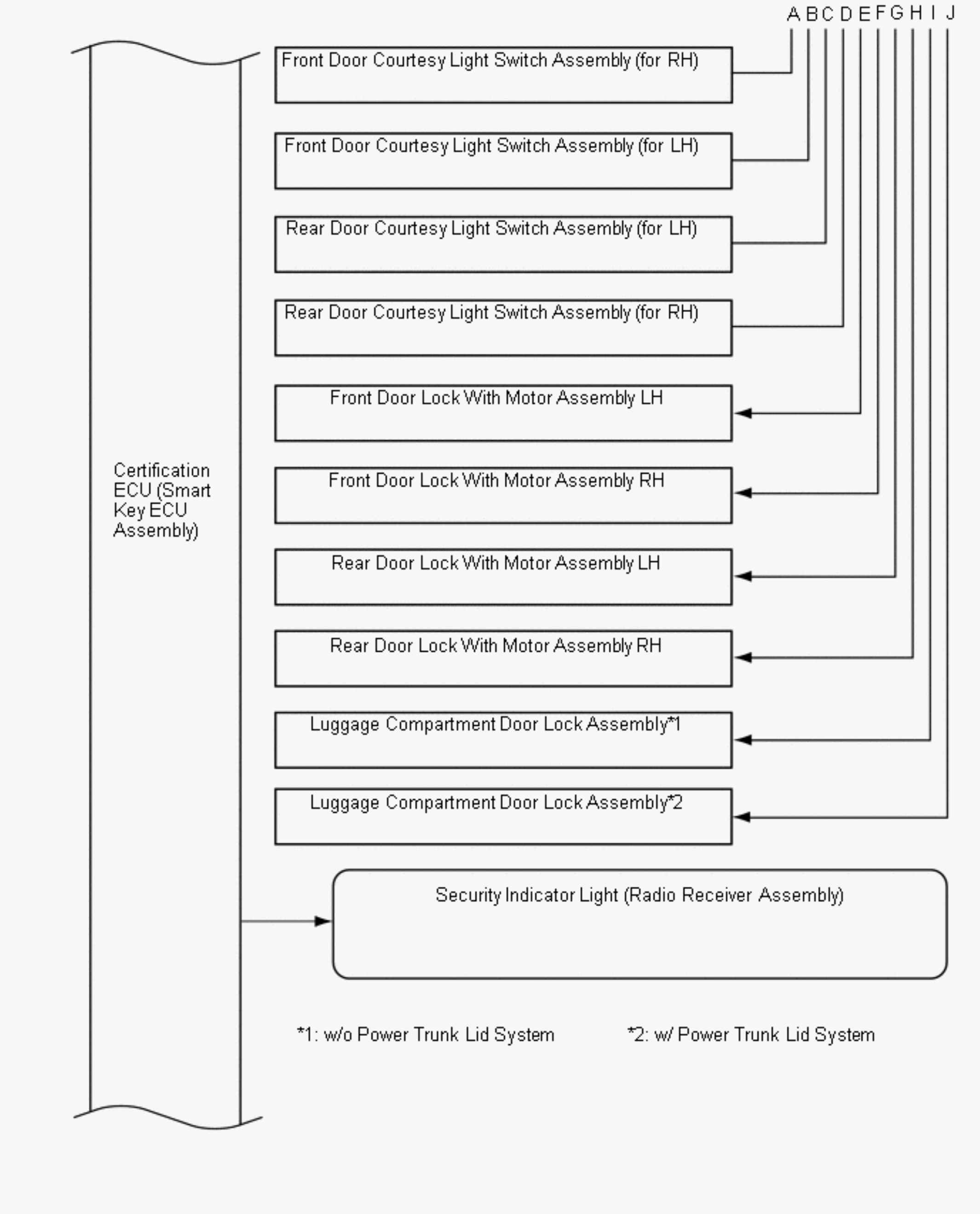

Fig 3: Smart Access System Diagram (With Push-Button Start System) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

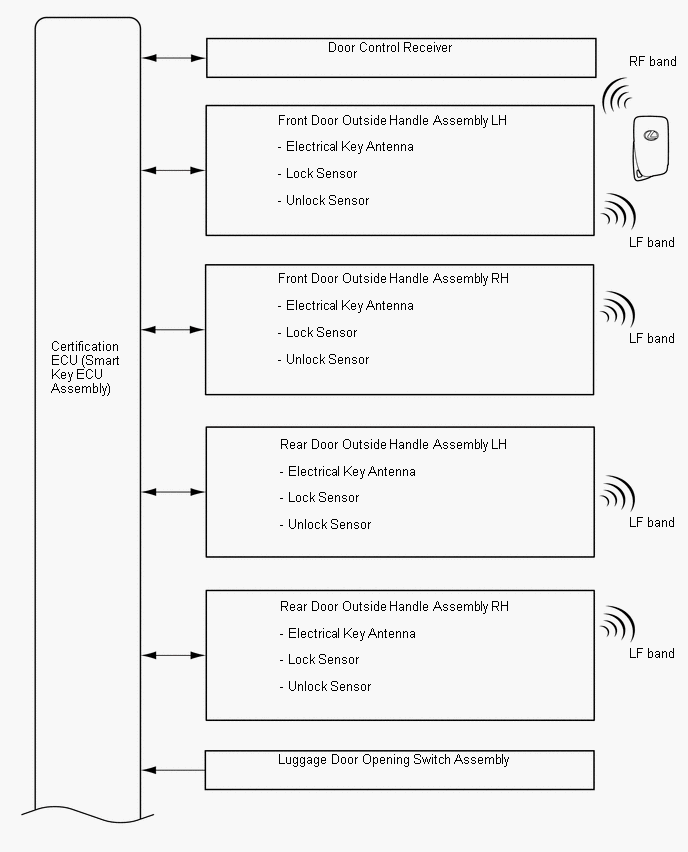

Fig 4: Smart Access System Diagram (With Push-Button Start System) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

MULTI CHANNEL FUNCTION

The electrical key transmitter sub-assembly and door control receiver can operate on two different RF channels. When an electrical key transmitter sub-assembly is brought within an exterior detection area, key verification begins. If key verification fails due to wave interference, the channel will be switched and key verification will be performed again.

The multi channel system begins verification using the channel on which the last verification was successfully performed. When verification fails, the system switches to the other channel.

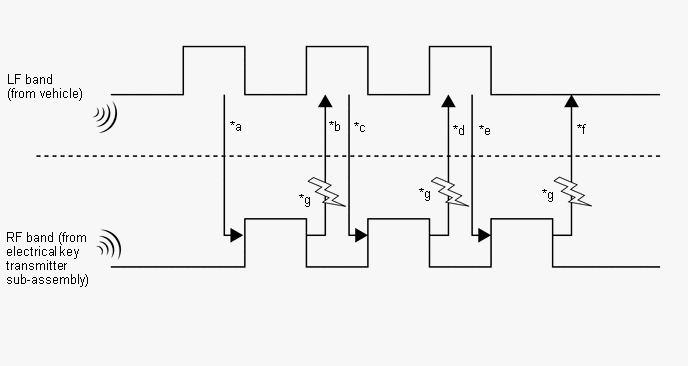

Fig 5: Multi Channel Function

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Exterior detection areas are created using LF waves (emitted from the vehicle at intervals of 0.25 seconds) to receive a response from the electrical key transmitter sub-assembly.
*b	When the electrical key transmitter sub-assembly is brought into an exterior detection area, it receives LF waves from the vehicle. Using RF waves, the electrical key transmitter sub-assembly responds to the vehicle.
*c	Upon receiving the response from the electrical key transmitter sub-assembly, the certification ECU (smart key ECU assembly) activates the electrical key antennas (outside) one by one. Using LF waves, the certification ECU (smart key ECU assembly) determines which exterior detection area the electrical key transmitter sub-assembly is in.
*d	The electrical key transmitter sub-assembly receives the LF waves from the vehicle and responds using RF waves. (The certification ECU (smart key ECU assembly) recognizes which exterior detection area the electrical key transmitter sub-assembly is in.)
*e	The certification ECU (smart key ECU assembly) sends registered key ID information to the electrical key transmitter sub-assembly using LF waves. (Up to 7 key IDs can be registered.)
*f	The electrical key transmitter sub-assembly sends the key ID information using RF waves. When the certification ECU (smart key ECU assembly) receives it, verification completes.
*g	Wave interference (Channel switching)

The multi channel system changes the channels when the RF band (*b, *d and *f) is interrupted by wave interference.

Refer to the table below to confirm when the system changes the channels.

	b or d is NG		*f is NG
Condition	RF waves cannot be received	RF waves cannot be received properly	RF waves cannot be received	RF waves cannot be received properly
Channel switching	The channels will not be switched.	The channels will be switched.	The channels will not be switched.	The channels will be switched*.

*: The channels are not switched during vehicle interior verification after an entry lock operation is performed.

HINT:

When the channels are switched, the history will be stored in the certification ECU (smart key ECU assembly). This history can be read using the Techstream. Refer to OPERATION HISTORY LIST [07/2015 - ]

SMART ACCESS SYSTEM WITH PUSH-BUTTON START SPECIFICATIONS

Some customers may inquire about the frequency used by the smart access system with push-button start (for Entry Function) on various models. This repair manual contains the applicable specifications of the smart access system with push-button start (for Entry Function).

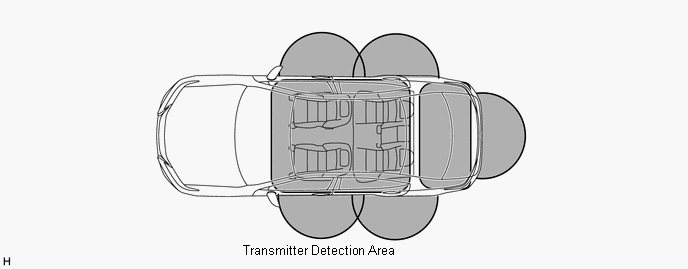

Fig 6: Transmitter Detection Areas

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SPECIFICATIONS FOR SMART ACCESS SYSTEM WITH PUSH-BUTTON START ANTENNA LF OUTPUT POWER

	Specification
	Frequency	Output Power/Electric Field Intensity	Modulation Method	Mounting Point in Vehicle
Inside Passenger Compartment	134.2 kHz	94.4 dBuV/m at 3 m	AM	Inside front floor
Inside Luggage Compartment	134.2 kHz	94.4 dBuV/m at 3 m	AM	Inside Luggage Compartment
Outside Vehicle	134.2 kHz	95 dBuV/m at 3 m	AM	Inside door handle
Outside Vehicle	134.2 kHz	95 dBuV/m at 3 m	AM	Inside rear bumper

SPECIFICATIONS FOR SMART ACCESS SYSTEM WITH PUSH-BUTTON START ANTENNA LF TRANSMISSION TIMING

	Transmission Timing
	Vehicle Remains Parked	Entering or Exiting the Vehicle	Vehicle is being Driven
Inside Passenger Compartment	Does not transmit	Operating door locks Operating power switch / depressing brake pedal Opening or closing doors With on (IG) or on (ACC), and in the P, closing a door when the electrical key transmitter sub-assembly cannot be detected inside the vehicle (continues for 3 seconds until the electrical key transmitter sub-assembly is detected or the power switch is turned off) Power switch is off after driving for more than 20 minutes (Not in P) when shutting the door, if the electrical key transmitter sub-assembly cannot be detected inside the vehicle (Transmits for 3 seconds until the electrical key transmitter sub-assembly is located)	When electrical key transmitter sub-assembly is not detected inside passenger compartment while car is being driven (transmits for 4 seconds)
Inside Luggage Compartment	Does not transmit	Operating door locks / pressing the luggage electrical key switch Closing the luggage compartment door Opening or closing doors	Does not transmit
Outside Vehicle	(1) When door is locked, transmits at 250 ms intervals (stops when door is unlocked) (2) Does not transmit	(1) Touch the lock sensor (2) Luggage electrical key switch is depressed (3) Touch the unlock sensor at power saving mode	Does not transmit

DIAGNOSIS IN ACCORDANCE WITH USER OPERATION

Operation 1

Operation

Turn the power switch off and lock all the doors, then take the electrical key transmitter sub-assembly approximately 3 m (9.84 ft.) or more away from the vehicle.
HINT:
The detection area of each electrical key antenna (outside) is formed by emitting a periodic LF band request signal every 0.25 seconds. The detection area formed by each front door outside handle assembly (electrical key antenna) has a detection range of approximately 0.7 m (2.30 ft.).

Waveform or Output Value

Pulse generation (H57-12 (CLG1) - A70-11 (E)*)

*: Refer to TERMINALS OF ECU [07/2015 - ]

Operation 2

Operation	Bring the electrical key transmitter sub-assembly within 0.7 m (2.30 ft.) of the driver door. HINT: The system is in unlock standby mode when the electrical key transmitter sub-assembly is in the detection area and the key ID code sent by the electrical key transmitter sub-assembly matches the key ID code stored by the certification ECU (smart key ECU assembly). The door unlocks if the unlock sensor is touched by hand with the system in unlock standby mode. Signal transmission: Certification ECU (smart key ECU assembly) → Front door outside handle assembly (electrical key antenna) → Electrical key transmitter sub-assembly → Door control receiver → Certification ECU (smart key ECU assembly) → Main body ECU (multiplex network body ECU)
Expected operation of the vehicle	The electrical key transmitter sub-assembly LED starts blinking. If it does not, check the suspected areas in the following table.
Waveform or Output Value	Pulse generation (H57-12 (CLG1) - A70-11 (E)) Pulse generation (Q1-5 (RCO) - A70-11 (E)) Pulse generation (Q1-17 (RDAM) - A70-11 (E)) Pulse generation (Q1-6 (CSEL) - A70-11 (E))

*: Refer to TERMINALS OF ECU [07/2015 - ]

Suspected Area	Diagnosis
Electrical key transmitter sub-assembly	The key ID code sent by the electrical key transmitter sub-assembly does not match the key ID code stored in the certification ECU (smart key ECU assembly). Use another electrical key transmitter sub-assembly to check the operation. If the LED of the electrical key transmitter sub-assembly does not blink when it is brought within 0.7 m (2.30 ft.) of the driver door, perform the following procedure. Press the lock and unlock switches of the electrical key transmitter sub-assembly to check the operation. If the doors can be locked and unlocked, that means the detection area has not been formed. Parts other than the electrical key transmitter sub-assemblies and front door outside handle assemblies may be malfunctioning. If the electrical key transmitter sub-assembly malfunctions, the hybrid system cannot be started and the power switch cannot be turned on (ACC or IG). Under normal operation, "Power On" is displayed on the multi-information display in the combination meter assembly when the power switch is pressed with the electrical key transmitter sub-assembly in the driver seat, the shift lever in P and the brake pedal not depressed. HINT: Before replacing the electrical key transmitter sub-assembly, check if the transmitter battery is depleted. If the door cannot be opened, use the mechanical key installed in the electrical key transmitter sub-assembly to open the door.
Transmitter battery is depleted	Press and hold the lock switch of the electrical key transmitter sub-assembly for 5 seconds and check the number of times that the transmitter LED blinks. If the transmitter LED does not blink or blinks only once or twice, the transmitter battery may be depleted. If the transmitter LED does not blink at all, the electrical key transmitter sub-assembly may be malfunctioning. If the transmitter battery voltage at the time the electrical key transmitter sub-assembly sends a signal drops to 2.2 V or less, "Yes" is displayed for "Key Low Battery" in the Data List. If the transmitter battery voltage drops to 2.0 V or lower, operation cannot be assured. HINT: The output of the electrical key transmitter sub-assembly will decrease if it is in low temperatures. When the transmitter battery is depleted, the hybrid system cannot be started and the power switch cannot be turned on (ACC or IG). If the electrical key transmitter sub-assembly is held near the power switch, the hybrid system can be started. Make sure that the transmitter battery type and installation direction are correct.
Wave Interference	If the problem occurs in certain locations or times of day, the possibility of wave interference is high. When the electrical key transmitter sub-assembly is malfunctioning, the transmitter battery is depleted, an electrical key transmitter sub-assembly from another vehicle has been used or wave interference is suspected. "Yes" may be displayed for any of the following Data List items: "Unmatch Code or Form", "No Response", "ID Code Difference" or "Unmatched Vehicle-ID"
Certification ECU (smart key ECU assembly)	-
Front door outside handle assembly	Vehicle exterior detection area is not formed properly. If the electrical key transmitter sub-assembly LED does not blink within 0.7 m (2.30 ft.) of the front door outside handle assembly of the driver door, but blinks within 0.7 m (2.30 ft.) of the front passenger door, the front door outside handle assembly of the driver door may be malfunctioning. Even if the vehicle exterior detection area is not formed properly, the power switch can be turned on (ACC) and the hybrid system can be started. Formation of the vehicle exterior detection area can be confirmed by using the Techstream. Refer to OPERATION CHECK [07/2015 - ] Even if the vehicle exterior detection area is not formed properly, the doors can be unlocked by pressing the unlock switch of the electrical key transmitter sub-assembly.
Door Control Receiver	If the door control receiver is malfunctioning, it is not possible to unlock the front passenger door. If the door control receiver is malfunctioning, it is not possible to unlock the doors by a wireless unlock operation. If the door control receiver is malfunctioning, the hybrid system cannot be started and the power switch cannot be turned on (ACC or IG) unless in an emergency. Formation of the vehicle exterior detection area can be confirmed by using the Techstream. Refer to OPERATION CHECK [07/2015 - ]
Vehicle Auxiliary Battery is discharged	It may be possible to tell whether the vehicle auxiliary battery is discharged by operating the horn.
Others	If the smart access system with push-button start function has been canceled through the customize function, the detection area cannot be formed, therefore the electrical key transmitter sub-assembly LED will not blink even if the electrical key transmitter sub-assembly is brought near a front door outside handle assembly. If the electrical key transmitter sub-assembly is in battery saving mode, even if it receives LF waves from the vehicle, it does not respond using RF waves, therefore the electrical key transmitter sub-assembly LED does not blink. In the smart access system with push-button start, if the electrical key transmitter sub-assembly is constantly in the exterior detection area of one of the doors, the transmitter battery could be drained. For this reason, if this state continues longer than 10 minutes, the smart access system with push-button start automatically deactivates the exterior detection area that the electrical key transmitter sub-assembly is in. If the electrical key transmitter sub-assembly is left in the vehicle and the doors are locked using another electrical key transmitter sub-assembly, the electrical key transmitter sub-assembly LED will not blink even if it is brought near a front door outside handle assembly.

Operation 3

Operation	Touch the unlock sensor of the driver door with the electrical key transmitter sub-assembly in the exterior detection area.
Expected operation of the vehicle	While the doors are unlocked, the answer-back is performed at the same time. If they do not, check the suspected areas in the following table.
Waveform or Output Value	Pulse generation (H57-22 (SEN1) - A70-11 (E)) Tester connection (instrument panel junction block assembly (ACT-) - body ground)

*: Refer to TERMINALS OF ECU [07/2015 - ]

Suspected Area	Diagnosis
The suspected parts below overlap with the parts covered in operation 2 for when the electrical key transmitter sub-assembly LED does not blink.	-
Front door outside handle assembly (unlock sensor)	If the doors can be unlocked by touching the unlock sensor of the front passenger door while carrying the electrical key transmitter sub-assembly, the unlock sensor of the driver door may be malfunctioning. Under normal operation, "ON" is displayed for the Data List item "D-Door Touch Sensor" when the unlock sensor is touched.
Door lock/unlock mechanism	If a door cannot be locked/unlocked by operating the door control switch on the door in the cabin, the door lock mechanism is malfunctioning.

Operation 4

Operation

After getting into the vehicle while carrying the electrical key transmitter sub-assembly, close the door and press the power switch once with the shift lever in P while not depressing the brake pedal.

Expected operation of the vehicle

The blinking security indicator light goes off, and then the set immobilizer function cancels, allowing the vehicle to be driven.
The steering is unlocked.

If any of the preceding did not happen, check the suspected areas in the following table.HINT: When the power switch is pressed, the indoor electrical key antenna forms a key detection area inside the vehicle and detects the electrical key transmitter sub-assembly in the cabin. The electrical key transmitter sub-assembly sends the ID code upon receiving a request signal and the electrical key transmitter sub-assembly LED illuminates for a short time. After pressing the power switch, if the key ID code sent by the electrical key transmitter sub-assembly matches the key ID code stored by the certification ECU (smart key ECU assembly), the ACC relay turns on and the smart warning light in the combination meter assembly "Power On" is displayed on the multi-information display in the combination meter assembly. Then after the power source mode has changed, L code and S code verification has been completed, the steering will be unlocked and the immobilizer will be inactive. Then the Data List status of "Immobilizer" will be changed from "Set" to "Unset".Signal transmission: Certification ECU (smart key ECU assembly) → Indoor electrical key antenna → Electrical key transmitter sub-assembly → Certification ECU (smart key ECU assembly)HINT: The interior detection area is formed when any of the following conditions are met:

Within approximately 30 seconds after any of the doors have been closed and opened.
Within approximately 30 seconds after any of the doors have been opened and closed.
The brake pedal is depressed.
Within approximately 30 seconds after the brake pedal has been depressed.
Right after the power switch is pressed.

Waveform or Output Value

Pulse generation (Q1-17 (RDAM) - A70-11 (E)*)
Pulse generation (H57-3 (CLG5) - A70-11 (E)*)

*: Refer to TERMINALS OF ECU [07/2015 - ]

Suspected Area	Diagnosis
Certification ECU (smart key ECU assembly)	-
Wave Interference	If malfunctions occur at a specific location/time, wave interference may be the cause. If wave interference is suspected in the cabin, disconnect all the connectors of electronic devices besides standard equipment, or remove the electronic devices and check for noise.
Indoor electrical key antenna assemblies that form the interior detection areas	If the interior detection areas are not formed properly, the hybrid system cannot be started and the power switch cannot be turned on (ACC or IG). If the electrical key transmitter sub-assembly is held near the power switch in an emergency, the hybrid system can be started. Using the Techstream, enter key diagnostic mode to forcibly form the interior detection area. If the electrical key transmitter sub-assembly is brought near the area, short beeps sound. Refer to OPERATION CHECK [07/2015 - ]
Power switch	Under normal operation, after the power switch is pressed, "ON" is displayed for the Data List items "Start Switch1" and "Start Switch2".
ID code box (immobilizer code ECU)	In order to unlock the steering, it is necessary for "S Code Check" in the Date List to display "OK". If "S Code Check" displays "OK", the certification ECU (smart key ECU assembly) code and ID code box (immobiliser code ECU) code match.
Steering lock ECU (steering lock actuator assembly)	If "OK" is displayed for the Data List item "L Code Check" and "S Code Check" when the power switch is turned on (ACC), power will be supplied to the steering motor for approximately 10 seconds. Then the ECU sends an unlock signal to the steering motor and the Data List item "Unlock Request Receive" temporarily changes from "NG" to "OK". After the steering unlocks, the ECU receives the unlocked signal from the steering motor and the Data List item "Steering Unlock" changes from "Unset" to "Set". In order to unlock the steering, it is necessary that "OK" is displayed for the Data List item "L Code Check" (the ID code stored in the steering lock ECU (steering lock actuator assembly) matches that of the ID code box (immobiliser code ECU)).

HINT:

The electrical key transmitter sub-assembly, the transmitter battery and the vehicle auxiliary battery should have already been inspected in the previous operation steps. However, if they have not been inspected, inspect them.

Operation 5

Operation	Depress the brake pedal with the shift lever in P while carrying an electrical key transmitter sub-assembly.
Expected operation of the vehicle	The smart warning light appears on the multi-information display. If it does not, check the suspected areas in the following table.

Suspected Area	Diagnosis
Stop light switch assembly	If the brake pedal is depressed, "ON" is displayed for the Data List item "Stop Light Switch1".
Certification ECU (smart key ECU assembly)	Start function-Terminals of ECU. Refer to TERMINALS OF ECU [07/2015 - ]

Operation 6

Operation	After getting into the vehicle while carrying the electrical key transmitter sub-assembly, press the power switch with the shift lever in P while depressing the brake pedal.
Expected operation of the vehicle	The hybrid system starts. If it does not, check the suspected areas in the following table. HINT: If the power switch is pressed with the steering unlocked, 12 V will be supplied from terminal STAR of the certification ECU (smart key ECU assembly) to the ST relay.

Suspected Area	Diagnosis
Steering lock system	Under normal operation, the steering will be unlocked and "ON" is displayed for the Data List item "Steering Unlock Switch".
Certification ECU (smart key ECU assembly)	The Data List item "Starter SW" is an instruction to operate the starter. If this turns "ON", 12 V will be supplied from terminal STAR of the certification ECU (smart key ECU assembly) to the ST relay.
Starter relay	The Data List item "Starter Relay" indicates the voltage at the STA terminal of the certification ECU (smart key ECU assembly). This indicates whether voltage is being supplied to the ST relay.
Starter	-
Vehicle Auxiliary Battery is discharged	Whether the vehicle auxiliary battery is discharged or not can be checked easily by operating the horn.

Operation 7

Operation	Press the power switch.
Expected operation of the vehicle	The hybrid system stops, the smart warning light illuminates green and then goes off and the security indicator light changes from off to blinking.

Operation 8

Operation	Open any of the doors with the power switch off.
Expected operation of the vehicle	The steering locks. If it does not, check the suspected areas in the following table.

Suspected Area	Diagnosis
Steering lock system	-
Door courtesy light switch assembly	When any of the doors are opened, "ON" is displayed for the Data List item "FL Door Courtesy SW".

Operation 9

Operation	Touch the lock sensor of the driver door outside handle while carrying the electrical key transmitter sub-assembly.
Expected operation of the vehicle	Answer-back is performed at the same time when the doors are locked.

VEHICLE AUXILIARY BATTERY SAVING FUNCTION
1. When the smart access system with push-button start is operating, the vehicle performs key detection operations every 0.25 seconds. Therefore, if the vehicle is left as is for a long period of time, the vehicle auxiliary battery may become fully discharged. The following controls help reduce the rate at which the vehicle auxiliary battery is discharged.
  1. If the smart access system with push-button start is not operated for 5 days or more, periodic signal transmission from the electrical key antennas stops. However, the doors can still be unlocked by touching the unlock sensor of any door outside handle assembly.
  2. If the smart access system with push-button start is not operated for 14 days or more, the lock and unlock sensors other than those on the front door outside handle of the driver door are disabled. Therefore, only the unlock sensor of the front door outside handle assembly of the driver door can be used to unlock the doors.
  3. If 10 minutes or more elapse while the electrical key transmitter sub-assembly is in an exterior detection area, the front door outside handle assembly (electrical key antenna) detecting the electrical key transmitter sub-assembly will stop operating.
2. To restore operation of the smart access system with push-button start, perform any of the following operations.
  1. While carrying the electrical key transmitter sub-assembly, touch the lock or unlock sensor of the front door outside handle assembly of the driver door and perform a door lock or unlock operation.
  2. Lock or unlock the doors with the wireless operation.
  3. Insert the mechanical key into the door key cylinder of the driver door and lock or unlock the doors.
WIRELESS DOOR LOCK BUZZER VOLUME ADJUSTMENT FUNCTION
1. The volume of the wireless door lock buzzer can be changed through the customize function.
  HINT:

  The volume of the following wireless door lock buzzer operations cannot be adjusted.
  - Warning function buzzer operations
  - Customize function buzzer operations
  - Buzzer operations for key diagnostic mode using the Techstream
  - Key registration buzzer operations

WARNING FUNCTION

Warning

When any of the situations below occur, the smart access system with push-button start causes the certification ECU (smart key ECU assembly) to sound the wireless door lock buzzer and a buzzer in the combination meter assembly and display a message on the multi-information display in order to alert the driver.

Situation: The hybrid system is on and the shift lever is in a position other than P when the driver gets out of the vehicle.

There are 2 patterns for this situation.

Pattern 1:

When the hybrid system is on and the shift lever is in a position other than P, the driver opens the door and attempts to get out of the vehicle.

In this situation, the following control is performed:

Possible effects without warning	Sudden vehicle start, vehicle theft, vehicle roll-away
Warning Start Condition (All conditions are met)	The power switch is on (ACC) or on (IG). The shift lever is in a position other than P. The driver door is opened. The vehicle speed is 0 km/h (0 mph).
Warning description	Buzzer in combination meter assembly sounds continuously. "Shift to P Before Exiting Vehicle" is displayed on the multi-information display in the combination meter assembly.
Warning Stop Condition (One condition is met)	The power switch is turned off. The shift lever is in P. The driver door is closed. The vehicle speed is 5 km/h (3.11 mph) or more.

Pattern 2:

Under the situation of pattern 1, the driver closes the door and attempts to leave the vehicle while holding the electrical key transmitter sub-assembly.

In this situation, the following control is performed:

Possible effects without warning	Sudden vehicle start, vehicle theft, vehicle roll-away
Warning Start Condition (All conditions are met)	The power switch is on (ACC) or on (IG). The shift lever is in a position other than P. The driver door is opened → closed. The electrical key transmitter sub-assembly is not in the vehicle. The vehicle speed is 0 km/h (0 mph).
Warning description	Buzzer in combination meter assembly sounds continuously. Wireless buzzer sounds continuously. "Shift to P Before Exiting Vehicle" is displayed on the multi-information display in the combination meter assembly.[A] "Key not detected. Check key location." is displayed on the multi-information display in the combination meter assembly.[B]
Warning Stop Condition (One condition is met)	The power switch is turned off ([A] continues to be displayed). Electrical key transmitter sub-assembly is returned to the vehicle ([A] continues to be displayed). The vehicle speed is 5 km/h (3.11 mph) or more ([B] continues to be displayed). The shift lever is in P ([B] continues to be displayed).

Situation: The key reminder sounds.

When the driver door is open, the driver turns the power switch on (ACC) and attempts to leave the vehicle.

Possible effects without warning	Vehicle theft
Warning Start Condition (Either Condition 1 or 2 is met)	Condition 1 The shift lever is in P. The power switch is on (ACC). The driver door is opened.
Warning Start Condition (Either Condition 1 or 2 is met)	Condition 2 (Approval for one second or more) The shift lever is in P. The power switch is off. The steering is unlocked. The driver door is opened.
Warning description	Buzzer in combination meter assembly sounds continuously at short and even intervals.
Warning Stop Condition (One condition is met)	The warning is stopped when one of the following conditions is met: The power switch is turned on (IG). The driver door is closed. The power switch is turned off and the steering is locked.

Situation: The hybrid system is on with the shift lever in P when the driver gets out of the vehicle.

There are 2 patterns for this situation.

Pattern 1:

When the hybrid system is on with the shift lever in P, the driver closes the driver door and attempts to leave the vehicle while carrying the electrical key transmitter sub-assembly.

In this situation, the following control is performed:

Possible effects without warning	Vehicle theft
Warning Start Condition (All conditions are met)	The power switch is on (ACC) or on (IG). The shift lever is in P. The driver door is opened → closed. The electrical key transmitter sub-assembly is not in the vehicle. The vehicle speed is 0 km/h (0 mph).
Warning description	Buzzer in combination meter assembly sounds once. Wireless buzzer sounds 3 times. "Key not detected. Check key location." is displayed on the multi-information display in the combination meter assembly.
Warning Stop Condition (Either condition is met)	The power switch is turned off. The electrical key transmitter sub-assembly is returned to the vehicle.

Pattern 2:

Under the situation of pattern 1, the driver touches the lock sensor on the door outside handle assembly.

In this situation, the following control is performed:

Possible effects without warning	Vehicle theft
Warning Start Condition (All conditions are met)	The power switch is on (ACC) or on (IG). The shift lever is in P. The electrical key transmitter sub-assembly is not in the interior detection areas. The electrical key transmitter sub-assembly is in the exterior detection areas. The lock sensor is on. The vehicle speed is 0 km/h (0 mph).
Warning description	Buzzer in combination meter assembly sounds once. Wireless buzzer sounds continuously. "Turn Off Vehicle" is displayed on the multi-information display in the combination meter assembly for 60 seconds.[A] "Key not detected. Check key location." is displayed on the multi-information display in the combination meter assembly.[B]
Warning Stop Condition (One condition is met)	The power switch is turned off. With the shift lever in P, the shift lever is moved to a position other than P ([B] continues to be displayed). The vehicle speed is 5 km/h (3.11 mph) or more ([B] continues to be displayed). 5 seconds have elapsed after the wireless door lock buzzer is activated (only wireless buzzer stops). Any door is opened or closed (only wireless buzzer stops). Electrical key transmitter sub-assembly is returned to the vehicle ([A] continues to be displayed).

Situation: The hybrid system is on when a passenger gets out of the vehicle while carrying the electrical key transmitter sub-assembly.

When the hybrid system is on a passenger leaves the vehicle while carrying the electrical key transmitter sub-assembly.

In this situation, the following control is performed:

Possible effects without warning	Hybrid system cannot be restarted
Warning Start Condition (All conditions are met)	The power switch is on (ACC) or on (IG). A door other than the driver door is opened → closed. The electrical key transmitter sub-assembly is not in the vehicle. The vehicle speed is 0 km/h (0 mph).
Warning description	Buzzer in combination meter assembly sounds once. Wireless buzzer sounds 3 times. "Key not detected. Check key location." is displayed on the multi-information display in the combination meter assembly.
Warning Stop Condition (Either condition is met)	The power switch is turned off. The electrical key transmitter sub-assembly is returned to the vehicle.

Situation: The electrical key transmitter sub-assembly is not in the interior detection areas.

When the electrical key transmitter sub-assembly is not in the vehicle or the transmitter battery is depleted, the driver attempts to start the hybrid system or turn the power switch on (IG).

In this situation, the following control is performed:

Possible effects without warning	Confuses the user
Warning Start Condition (All conditions are met)	A door is not unlocked using the mechanical key and the power switch is pressed. The electrical key transmitter sub-assembly is not in the vehicle or the transmitter battery is depleted. The immobiliser system is set.
Warning description	Buzzer in combination meter assembly sounds once. "Key not detected. Check key location." is displayed on the multi-information display in the combination meter assembly for 15 seconds.
Warning Stop Condition (Either condition is met)	The electrical key transmitter sub-assembly is returned to the vehicle. 30 seconds have elapsed after the door is opened

Situation: The vehicle is driven without a registered electrical key transmitter sub-assembly.

When the vehicle starts moving without the registered electrical key transmitter sub-assembly in the vehicle.

In this situation, the following control is performed:

Possible effects without warning	Hybrid system cannot be restarted
Warning Start Condition (All conditions are met)	The power switch is on (IG). Warning indicating that the electrical key transmitter sub-assembly is being brought out of vehicle is output. The vehicle speed is 5 km/h (3.11 mph) or more. The electrical key transmitter sub-assembly is not in the vehicle.
Warning description	Buzzer in combination meter assembly sounds nine times. "Key not detected. Check key location." is displayed on the multi-information display in the combination meter assembly.
Warning Stop Condition (Either condition is met)	The power switch is turned off. The electrical key transmitter sub-assembly is returned to the vehicle.

Situation: The electrical key transmitter sub-assembly is left in the vehicle.

The lock sensor on a door outside handle assembly is touched to perform entry lock with the electrical key transmitter sub-assembly left in the vehicle.

In this situation, the following control is performed:

Possible effects without warning	Vehicle theft
Warning Start Condition (All conditions are met)	The power switch is off. All doors are closed. The electrical key transmitter sub-assembly is in the vehicle. The lock sensor on a door outside handle assembly is on (touched). Any door is unlocked. The vehicle speed is 0 km/h (0 mph).
Warning description	Buzzer in combination meter assembly sounds once. Wireless buzzer sounds continuously for 5 seconds. "Key Left inside Vehicle" is displayed on the multi-information display in the combination meter assembly for 60 seconds.
Warning Stop Condition (One condition is met)	The power switch is turned to a mode other than off. The vehicle speed is 5 km/h (3.11 mph) or more. Lock operation is detected. Any door is opened (only wireless buzzer stops)*.

Situation: Door is ajar.

The lock sensor on the door outside handle assembly is touched to perform entry lock with a door open.

In this situation, the following control is performed:

Possible effects without warning	Vehicle theft
Warning Start Condition (All conditions are met)	The power switch is off. Any door other than the door that performed the entry lock operation is open. The lock sensor on the door outside handle assembly is touched or lock switch on the electrical key transmitter sub-assembly is pressed. The electrical key transmitter sub-assembly is in the exterior detection areas.
Warning description	Wireless buzzer sounds continuously for 5 seconds.
Warning Stop Condition (One condition is met)	The power switch is turned to a mode other than off. All doors are closed. An unlock operation is performed using the wireless door lock remote function. The touch sensor on the inner side of a door outside handle assembly is used to perform entry unlock.

Situation: The electrical key transmitter sub-assembly is left in the luggage compartment door.

The luggage compartment door is closed with the electrical key transmitter sub-assembly left in the luggage compartment.

In this situation, the following control is performed:

Possible effects without warning	Vehicle theft
Warning Start Condition (All conditions are met)	The vehicle speed is 0 km/h (0 mph). Entry luggage compartment open function is available. All doors are closed and all doors are locked or the state where the doors are waiting to open after an unlock operation. The luggage compartment door is opened → closed. The electrical key transmitter sub-assembly is in the luggage compartment.
Warning description	Wireless buzzer sounds continuously for 5 seconds.
Warning Stop Condition (Either condition is met)	The vehicle speed is 5 km/h (3.11 mph) or more. The luggage compartment door is opened.

Situation: The electrical key transmitter sub-assembly is locked inside the vehicle.

With a door open and the electrical key transmitter sub-assembly in the vehicle, the lock knob is locked and then the door is closed with the door handle being pulled.

In this situation, the following control is performed:

Possible effects without warning	Vehicle theft
Warning Start Condition (All conditions are met)	With a door open, the lock knob is locked and then the door is closed with the door handle being pulled. The electrical key transmitter sub-assembly is in the vehicle. The vehicle speed is 0 km/h (0 mph).
Warning description	The buzzer in the combination meter assembly sounds once. Wireless buzzer sounds continuously for 5 seconds. "Key Left inside Vehicle" is displayed on the multi-information display in the combination meter assembly for 60 seconds.
Warning Stop Condition (One condition is met)	The power switch is turned to a mode other than off. Any door is opened (only wireless buzzer stops)*. Lock operation is detected. The vehicle speed is 5 km/h (3.11 mph) or more.

Situation: The transmitter battery is weak.

The vehicle is driven using an electrical key transmitter sub-assembly that has a low transmitter battery.

In this situation, the following control is performed:

Possible effects without warning	Depleted transmitter battery, hybrid system cannot be restarted
Warning Start Condition (Either Condition 1 or 2 is met)	Condition 1 The power switch is turned off after being left on (IG) for more than 20 minutes. The transmitter battery voltage is low. The electrical key transmitter sub-assembly is in the vehicle. The vehicle speed is 0 km/h (0 mph).
Warning Start Condition (Either Condition 1 or 2 is met)	Condition 2 The power switch is off → the hybrid system is started. The transmitter battery voltage is low. The electrical key transmitter sub-assembly is in the vehicle. The vehicle speed is 0 km/h (0 mph). Condition 1 has been met. (past)
Warning description	Buzzer in combination meter assembly sounds once. "Key Battery Low" is displayed on the multi-information display in the combination meter assembly for 15 seconds.
Warning Stop Condition (Either condition is met)	The vehicle speed is 5 km/h (3.11 mph) or more. The transmitter battery is replaced with a new one.

Situation: The steering cannot be released.

The steering wheel cannot be released, thus the hybrid system is prevented from starting.

The shift lever is moved to a position other than P before the steering is unlocked.

In this situation, the following control is performed:

Possible effects without warning	User does not notice that the steering is locked
Warning Start Condition	Steering wheel cannot be unlocked.
Warning description	Buzzer in combination meter assembly sounds once. "Steering Lock active" is displayed on the multi-information display in the combination meter assembly for 15 seconds.
Warning Stop Condition	Steering wheel is unlocked.

Situation: The smart access system with push-button start is malfunctioning.

An IG circuit malfunction, vehicle speed signal malfunction or a malfunction that interferes with the steering lock ECU (steering lock actuator assembly) operation, has been detected.

In this situation, the following control is performed:

Possible effects without warning	Malfunction cannot be detected
Warning Start Condition (One condition is met)	The steering lock ECU (steering lock actuator assembly), driver of the certification ECU (smart key ECU assembly) or unlock detection switch is malfunctioning. An IG relay output circuit malfunction occurs three times or more consecutively. The vehicle speed is judged as abnormal or vehicle speed signal communication is malfunctioning.
Warning description	The buzzer in the combination meter assembly sounds once. "Check Access System with Elec. Key" is displayed on the multi-information display in the combination meter assembly for 15 seconds.
Warning Stop Condition	The system returns to normal.

Situation: The hybrid system does not start. (Situation A)

When the power switch is pressed, the electrical key transmitter sub-assembly cannot be detected in the vehicle two times in a row.

In this situation, the following control is performed:

Possible effects without warning	Hybrid system cannot be restarted
Warning Start Condition (One condition is met)	The immobiliser system is set. The electrical key transmitter sub-assembly is not in the vehicle. Key code verification error occurs when the power switch is pressed twice or the driver door key linked unlock operation is performed.
Warning description	Buzzer in combination meter assembly sounds once. "Depress Brake and Then Touch Key to Power Switch" is displayed on the multi-information display in the combination meter assembly for 60 seconds.
Warning Stop Condition (Either condition is met)	The electrical key transmitter sub-assembly is returned to the vehicle. 30 seconds have elapsed after the door is opened

Situation: The hybrid system does not start. (Situation B)

There are two patterns for this situation.

Pattern 1:

A warning message appears on the multi-information display when the driver does not follow the proper procedure to start the vehicle.

In this situation, the following control is performed:

Possible effects without warning	Hybrid system cannot be restarted
Warning Start Condition (All conditions are met)	The power switch is off. Driver door is closed → opened. The power switch is turned from off to on (ACC) more than twice with the hybrid system off and the brake pedal not depressed.
Warning description	Buzzer in combination meter assembly sounds once. "Depress brake and power to start." is displayed on the multi-information display in the combination meter assembly for 5 seconds.
Warning Stop Condition (Either condition is met)	The power switch is turned off. The power switch is turned on (IG).

Pattern 2:

A message indicating how to start the hybrid system appears on the multi-information display when the shift lever is in any position other than P or N.

In this situation, the following control is performed:

Possible effects without warning	Hybrid system cannot be restarted
Warning Start Condition (All conditions are met)	The hybrid system is stopped. The vehicle speed is 0 km/h (0 mph). More than 0.5 seconds have elapsed after the power switch is turned on (IG). The shift lever is in a position other than P. The starter is not operating.
Warning description	Buzzer in combination meter assembly sounds once. "To Start Vehicle, Put Shift Lever into P" is displayed on the multi-information display in the combination meter assembly.
Warning Stop Condition (One condition is met)	The shift lever is in P. The vehicle speed is 5 km/h (3.11 mph) or more. The power source mode is changed to a mode other than on (IG). The hybrid system is started.

Situation: The power switch cannot be turned off.

There are 2 patterns for this situation.

Pattern 1:

A warning message appears on the multi-information display when the driver attempts to turn the power switch off with the shift lever in any position other than P.

In this situation, the following control is performed:

Possible effects without warning	Discharged vehicle auxiliary battery, vehicle roll-away
Warning Start Condition	Shift lever in any position other than P. Even though the power switch is pressed, the power source mode does not change to off (excluding emergency stop operation).
Warning description	The buzzer in the combination meter assembly sounds "Shift to P Before Exiting Vehicle." is displayed on the multi-information display in the combination meter assembly.
Warning Stop Condition (Either condition is met)	The power switch is turned to a mode other than on (ACC). The shift lever is moved to P.

Pattern 2:

Under the situation of pattern 1, the shift lever is moved to P.

In this situation, the following control is performed:

Possible effects without warning	Discharged vehicle auxiliary battery, vehicle roll-away
Warning Start Condition	The shift lever is moved to P.
Warning description	Buzzer in combination meter assembly sounds once. "Turn Off Vehicle" is displayed on the multi-information display in the combination meter assembly.
Warning Stop Condition (Either condition is met)	The power source mode is changed to a mode other than on (ACC). The shift lever is in any position other than P.

Situation: Auto power off operation occurs.

A warning message appears on the multi-information display when automatic power off operation occurs.

In this situation, the following control is performed:

Possible effects without warning	Discharged vehicle auxiliary battery
Warning Start Condition (All conditions are met)	The shift lever is in P. The power switch is on (ACC) or on (IG). The vehicle speed is 0 km/h (0 mph). The hybrid system is stopped. The power source control system is turned off by automatic power off function.
Warning description	"Power Turned Off to Save Battery" is displayed on the multi-information display in the combination meter assembly for 10 seconds.
Warning Stop Condition	The power switch is turned on (ACC) or on (IG).

Situation: Immobiliser system certification completion occurs.

When an electrical key transmitter sub-assembly with a depleted transmitter battery is held near the power switch while depressing the brake.

In this situation, the following control is performed:

Possible effects without warning	Malfunction cannot be detected
Warning Start Condition	Electrical key transmitter sub-assembly certification result is OK.
Warning description	Buzzer in combination meter assembly sounds once. "Depress brake and power to start." is displayed on the multi-information display in the combination meter assembly for 10 seconds.
Warning Stop Condition (One condition is met)	The electrical key transmitter sub-assembly is detected by the vehicle. The hybrid system is running at 500 rpm or more. The hybrid system is started. The immobiliser system is set and key recognition is stopped or the key cannot be recognized.
