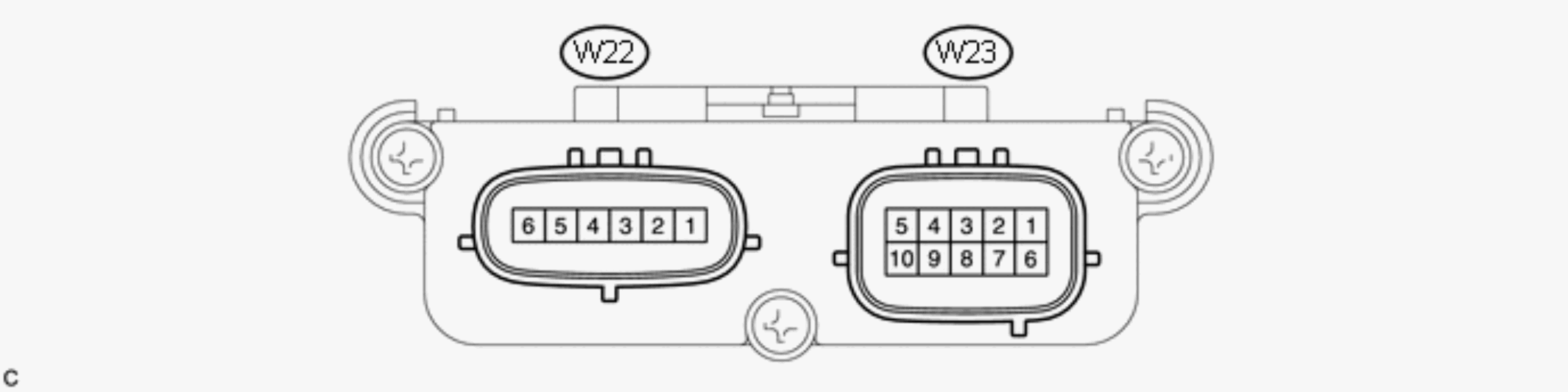

| W23-1 (+B) - W23-3 (GND) |
W - W-B |
Auxiliary battery |
Power switch off |
11 to 14 V |
| W23-2 (DIA) - W23-3 (GND) |
GR - W-B |
Diagnosis (DLC3) |
Power switch on (IG), Techstream not connected to DLC3 |
Below 1 V |
| W23-3 (GND) - Body ground |
W-B - Body ground |
Ground |
Always |
Below 1 V |
| W23-4 (FSR-) - W23-3 (GND) |
LG - W-B |
Airbag sensor assembly communication line |
Always |
Below 1 V |
| W23-5 (BGND) - W23-3 (GND) |
P - W-B |
Passenger side buckle switch ground line |
Always |
Below 1 V |
| W23-6 (IG) - W23-3 (GND) |
B - W-B |
Power source |
Power switch on (IG) |
11 to 14 V |
| W23-7 (FSR+) - W23-4 (FSR-) |
L - LG |
Airbag sensor assembly communication line |
Power switch on (IG) |
Pulse generation |
| W23-8 (BSW) - W23-5 (BGND) |
G - P |
Passenger side buckle switch line |
Always |
Pulse generation |
| W22-1 (SVC3) - W22-5 (SGD3) |
GR - W |
Rear occupant classification sensor LH power supply line |
Power switch on (IG) |
4.9 to 5.1 V |
| W22-2 (SVC4) - W22-6 (SGD4) |
V - BR |
Rear occupant classification sensor RH power supply line |
Power switch on (IG) |
4.9 to 5.1 V |
| W22-3 (SIG3) - W22-5 (SGD3) |
SB - W |
Rear occupant classification sensor LH signal line |
Power switch on (IG) |
Pulse generation |
| W22-4 (SIG4) - W22-6 (SGD4) |
B - BR |
Rear occupant classification sensor RH signal line |
Power switch on (IG) |
Pulse generation |
| W22-5 (SGD3) - W23-3 (GND) |
W - W-B |
Rear occupant classification sensor LH ground line |
Always |
Below 1 V |
| W22-6 (SGD4) - W23-3 (GND) |
BR - W-B |
Rear occupant classification sensor RH ground line |
Always |
Below 1 V |
