Parts Location [07/2015 - ]: Illustration

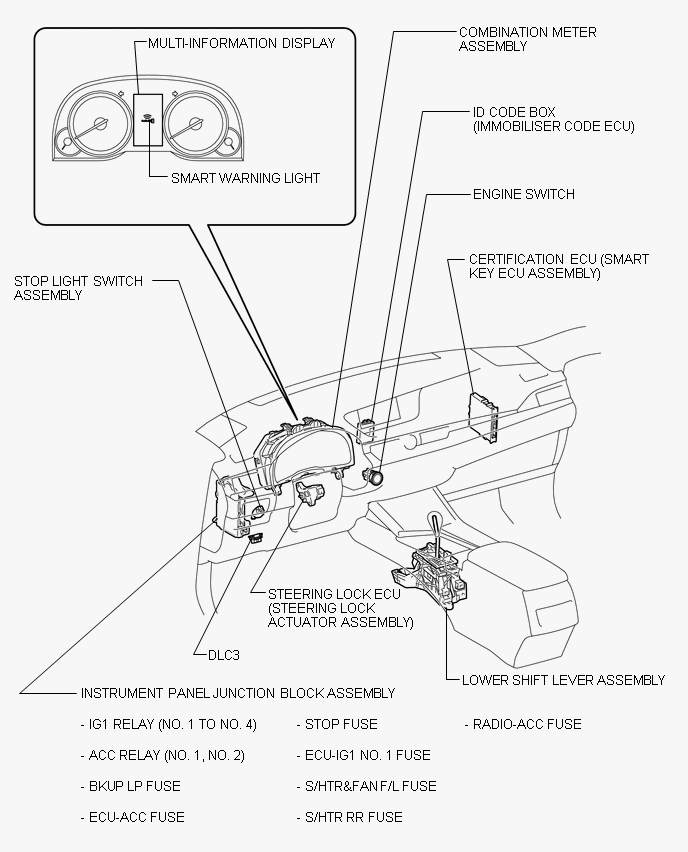

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (1 Of 4)
GTY628495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

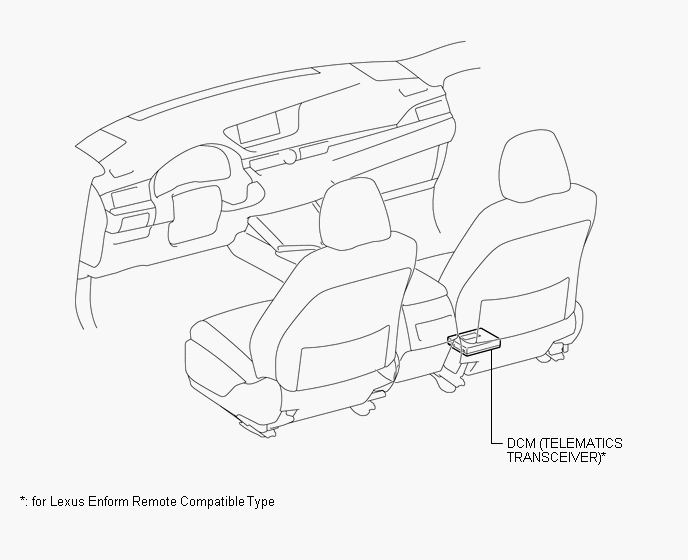

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (2 Of 4)
GTY641415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

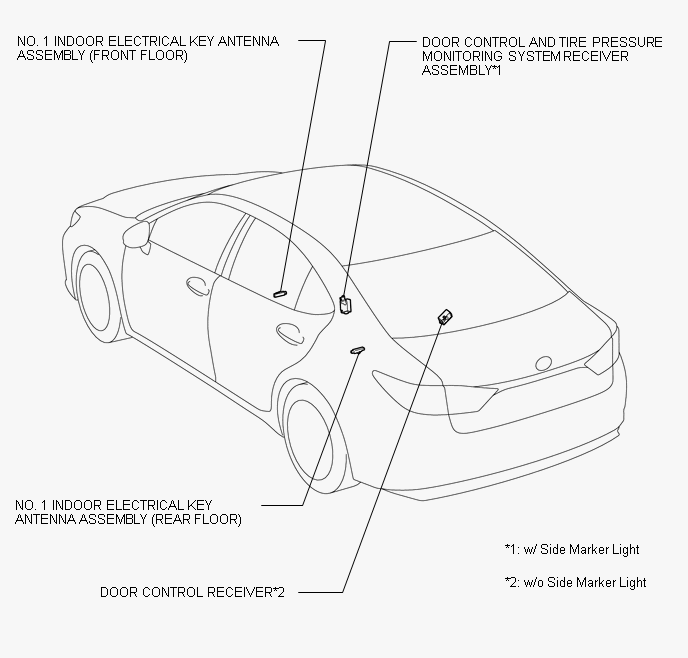

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (3 Of 4)
GTY682363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

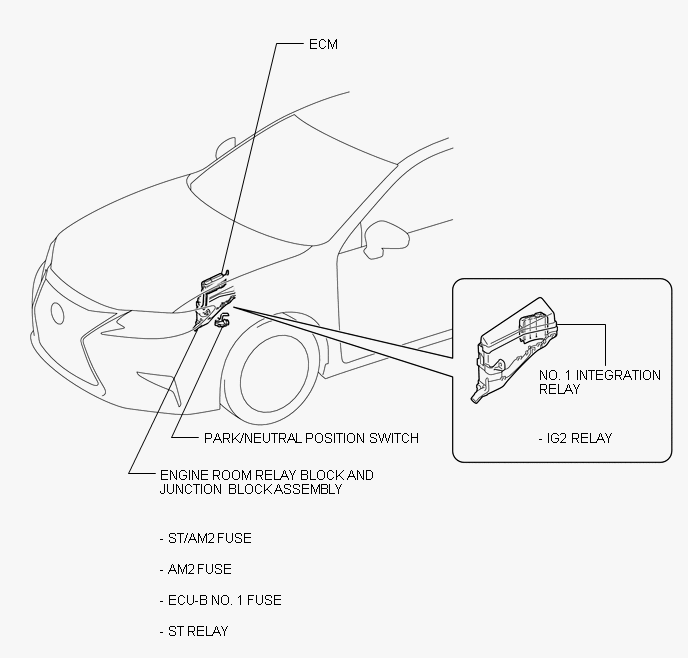

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (4 Of 4)
GTY650917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
