Operation Check [09/2014 - 10/2015]
- INPUT SIGNAL CHECK
- Connect the Techstream to the DLC3.

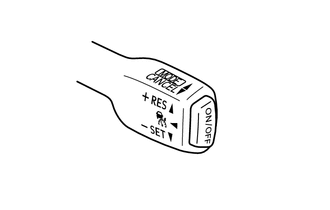

- Check the cruise control main switch (ON-OFF, CANCEL, SET/COAST, RES/ACC, and MODE) using the DATA LIST function in the Techstream.
- INSPECT MODE SWITCH
- Turn the engine switch on (IG).

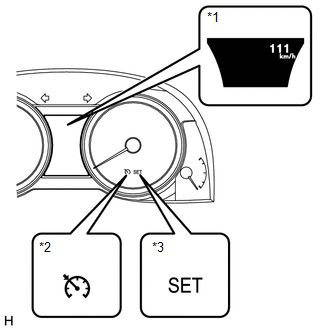

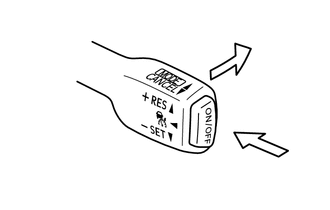

- Turn the cruise control switch on. Then push the cruise control switch to MODE for 1 second or more to change to constant speed control mode. Check that "SET" is indicated on the multi-information display.TEXT IN ILLUSTRATION
*1 Multi-information display *2 Cruise control indicator light *3 Cruise control SET indicator light NOTE:Do not push any other switches before pushing the cruise control switch to MODE. If another switch is pushed, turn the main switch off and repeat the procedure above.
HINT:
If a malfunction is detected, turn the engine switch off and repeat the procedure above.
- INSPECT STEERING PAD SWITCH
- Turn the engine switch on (IG).

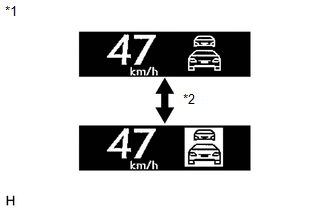

- Turn the cruise control switch on. Then push the cruise control switch to MODE for 1 second or more to change to vehicle-to-vehicle distance control mode. Check that "RADAR READY" is indicated on the multi-information display.

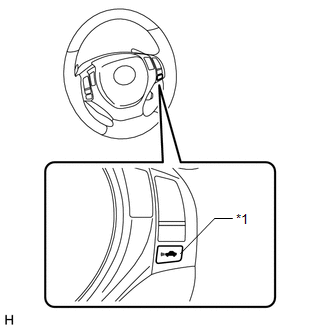

- Turn on the distance control switch of the steering pad switch.TEXT IN ILLUSTRATION

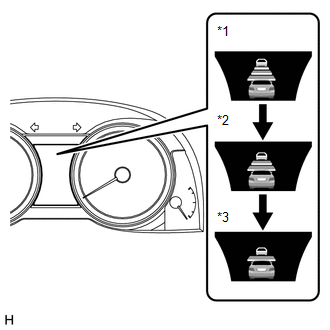

*1 Distance control switch - Check that the indication of the vehicle-to-vehicle distance, which is shown in the multi-information display on the combination meter, changes from long to middle to short in that order.TEXT IN ILLUSTRATION
*1 Long *2 Middle *3 Short HINT:
The indication is automatically set to long each time the engine is started.
- HEADUP DISPLAY (w/ Headup Display)
