System Diagram [09/2014 - 10/2015]

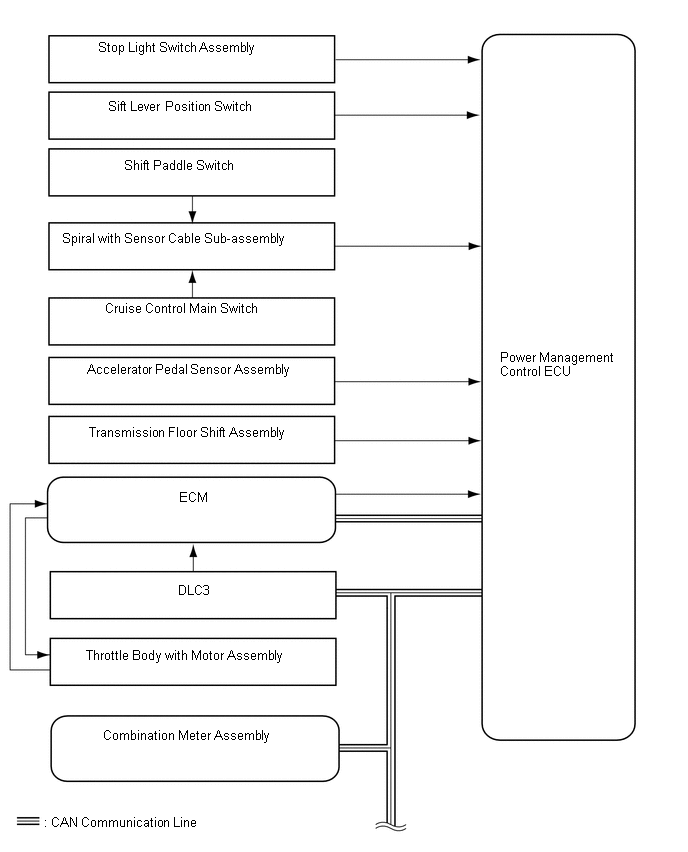

Fig 1: Cruise Control System Diagram (1 Of 2)
GTY531826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

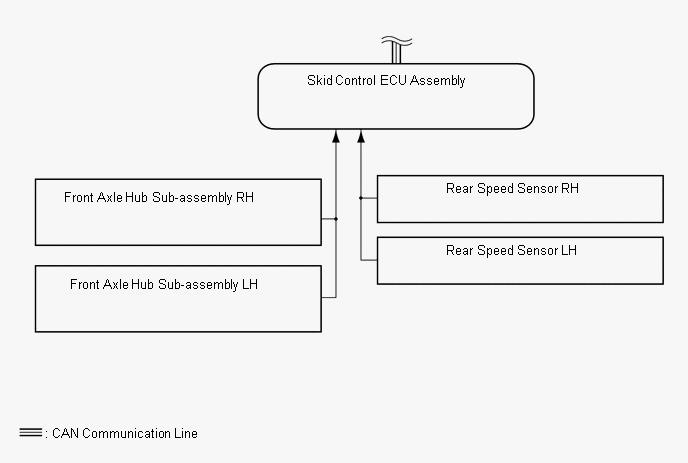

Fig 2: Cruise Control System Diagram (2 Of 2)
GTY525238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Combination meter Power management control ECU Cruise control indicator light signal CAN
Skid control ECU assembly Power management control ECU Vehicle speed signal CAN
