Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment [10/2015 - ]: Wiring Diagram

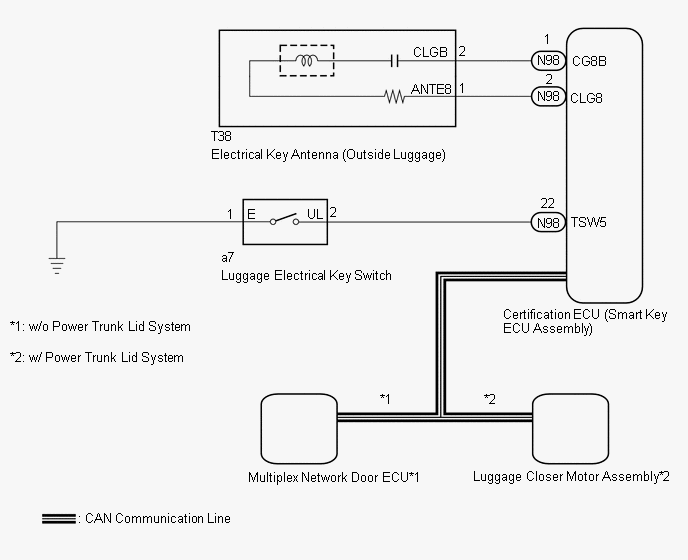

Fig 1: Luggage Compartment Door Entry Unlock Function Wiring Diagram
GTY527969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
