System Diagram [09/2014 - 10/2015]

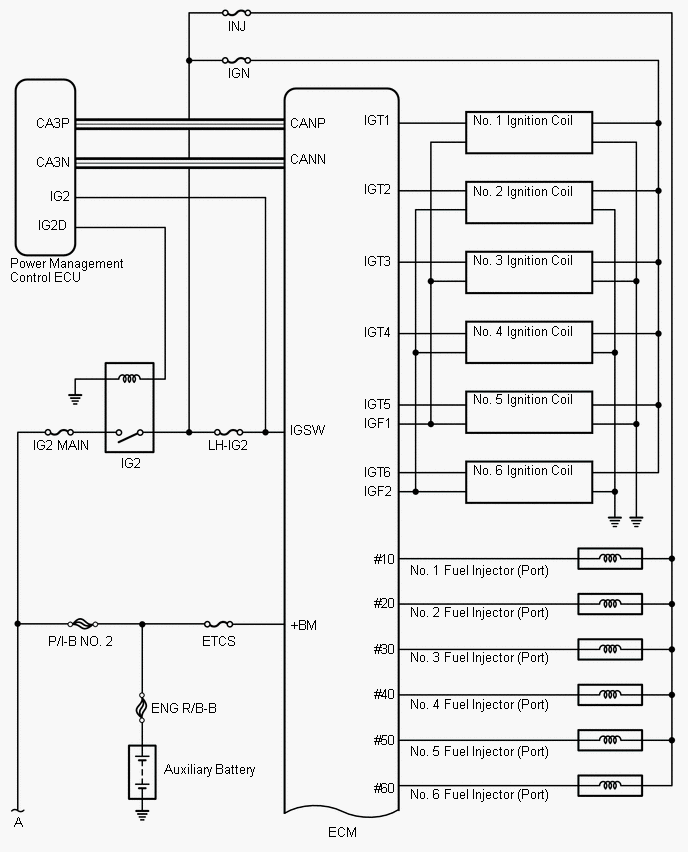

Fig 1: Engine Control System Wiring Diagram (1 Of 4)
GTY404147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

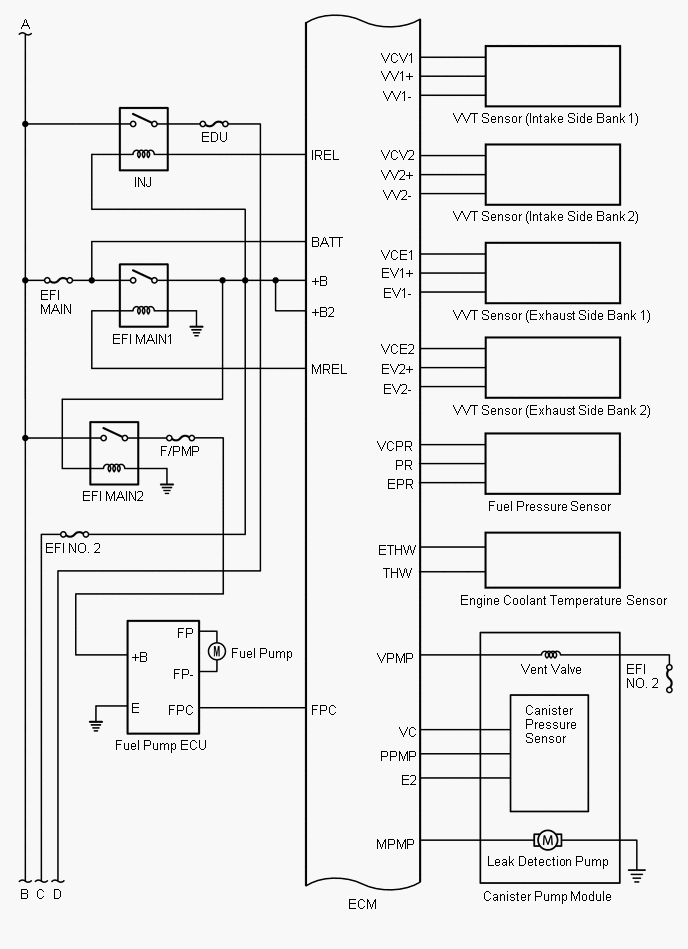

Fig 2: Engine Control System Wiring Diagram (2 Of 4)
GTY398828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

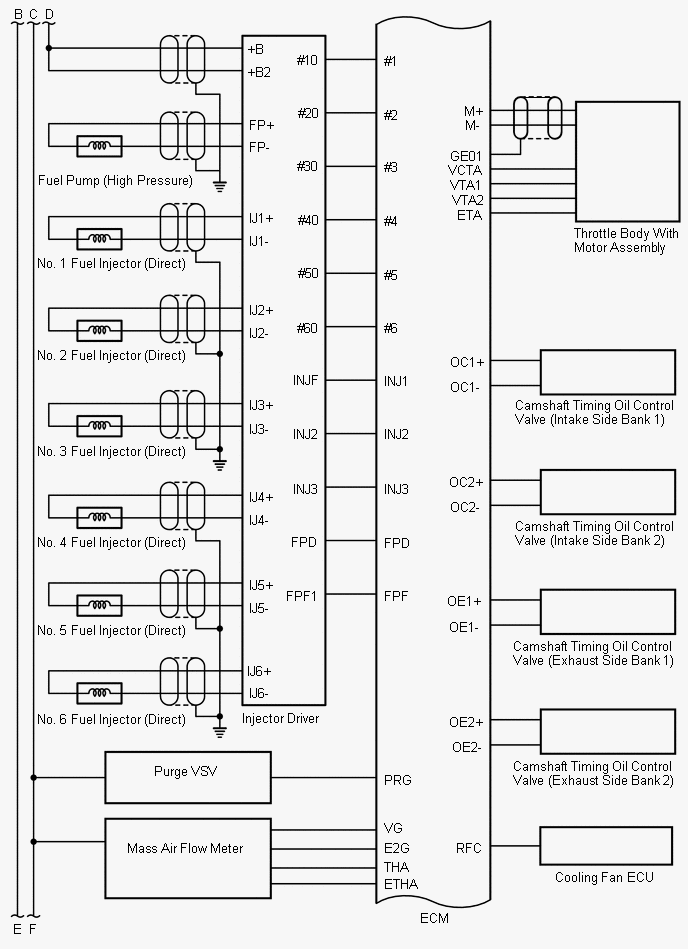

Fig 3: Engine Control System Wiring Diagram (3 Of 4)
GTY527817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

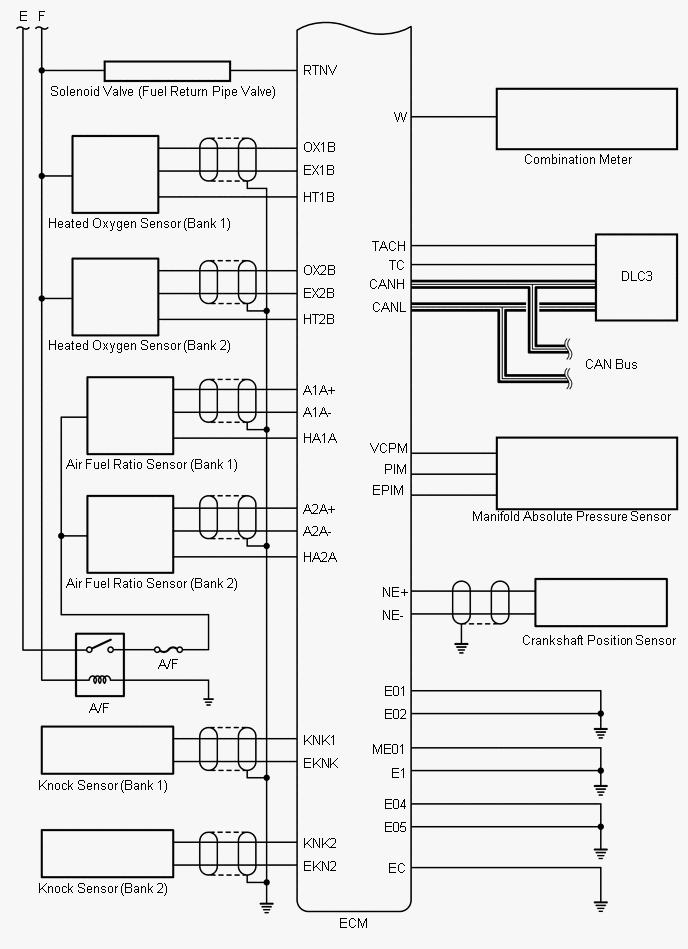

Fig 4: Engine Control System Wiring Diagram (4 Of 4)
GTY398455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
