Parts Location [09/2014 - 10/2015]: Illustration

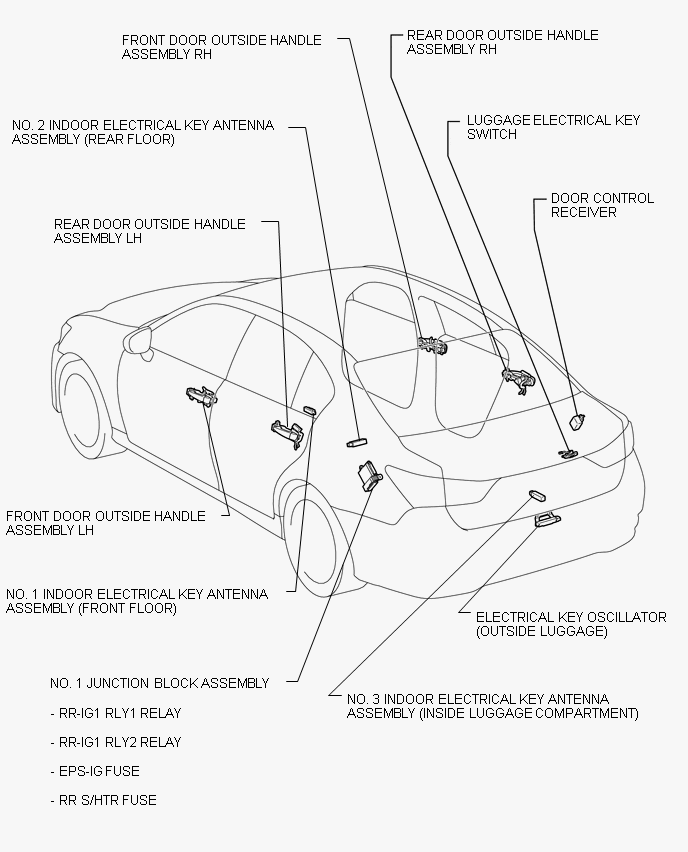

Fig 1: Smart Access System With Push-Button Start (For Start Function) Component Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

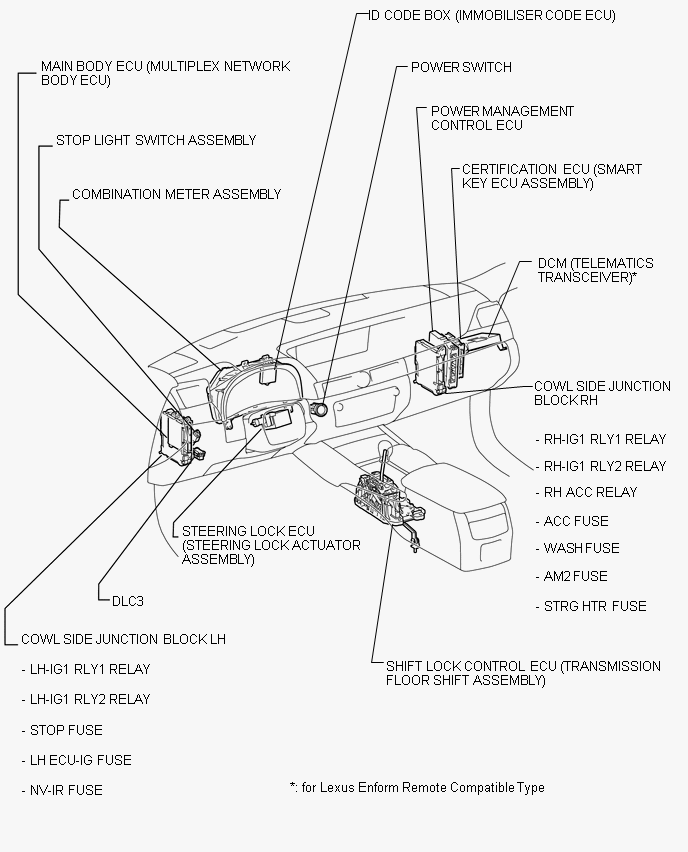

Fig 1: Smart Access System With Push-Button Start (For Start Function) Component Location (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

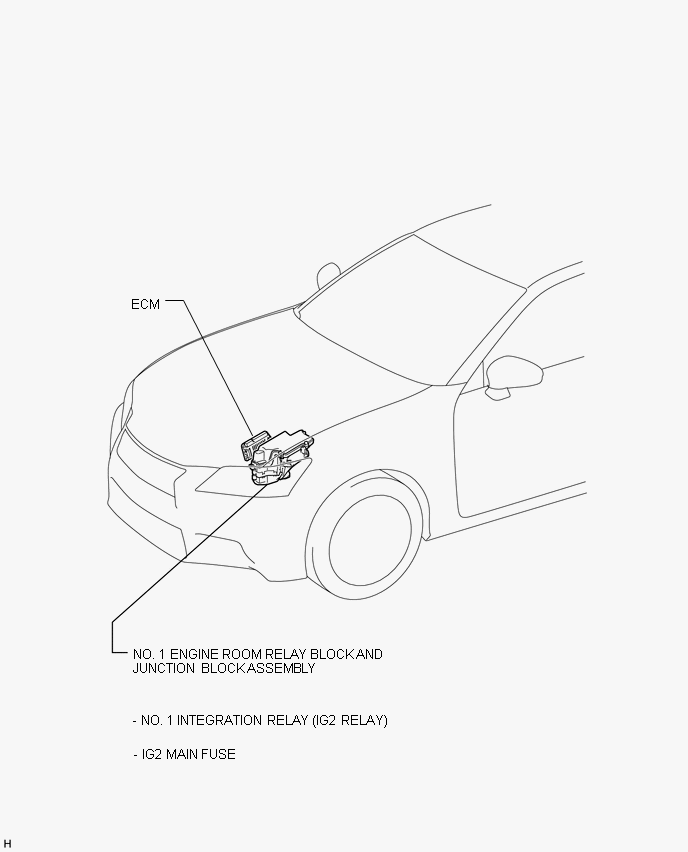

Fig 1: Smart Access System With Push-Button Start (For Start Function) Component Location (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
