Removal [10/2015 - ]: Procedure

See step  1

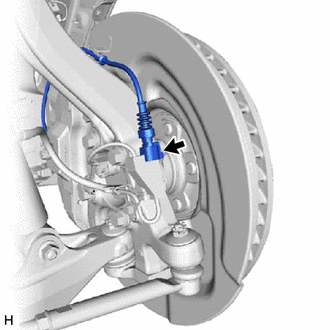

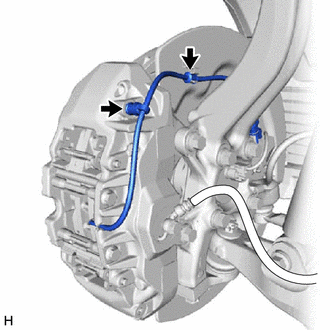

1. Disconnect the pad wear indicator wire connector from the front skid control sensor wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the pad wear indicator wire assembly from the clamp of the front disc brake dust cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disconnect the bleeder plug cap portion of the pad wear indicator wire assembly from the front disc brake bleeder plug.

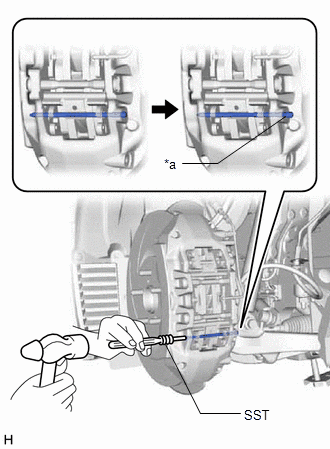

4. Using SST and a hammer, disengage the ring of the pad guide pin (upper) and push out the pad guide pin (upper) from the disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Ring

   • SST: 09719-77040
   NOTE:

   • Keep SST aligned with the pad guide pin (upper).
   • Do not damage the surface of the disc brake cylinder assembly.

5. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

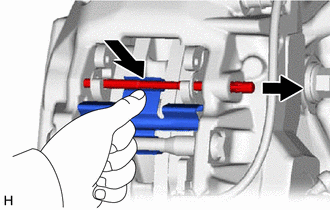

   While pushing the front disc brake anti-rattle spring (upper) as shown in the illustration, remove the pad guide pin (upper).

6. Remove the front disc brake anti-rattle spring (upper) from the pad guide tie rod.

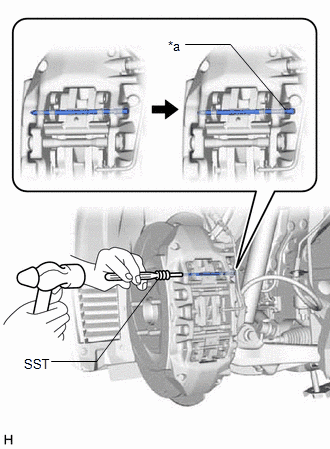

7. Using SST and a hammer, disengage the ring of the pad guide pin (lower) and push out the pad guide pin (lower) from the disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Ring

   • SST: 09719-77040
   NOTE:

   • Keep SST aligned with the pad guide pin (lower).
   • Do not damage the surface of the disc brake cylinder assembly.

8. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

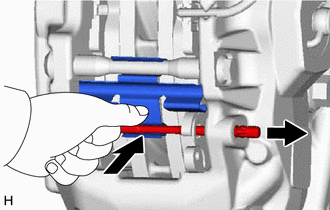

   While pushing the front disc brake anti-rattle spring (lower) as shown in the illustration, remove the pad guide pin (lower).

9. Remove the front disc brake anti-rattle spring (lower) from the pad guide tie rod.

10. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

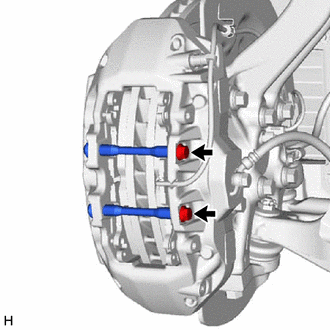

    Remove the 2 bolts and 2 pad guide tie rods from the disc brake cylinder assembly.

11. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *a

    Notch

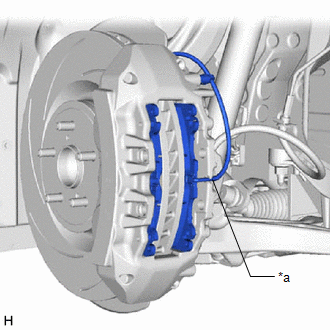

    Disengage the pad wear indicator wire assembly from the notch of the disc brake cylinder assembly.

12. Remove the 2 front disc brake pads from the disc brake cylinder assembly.

13. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

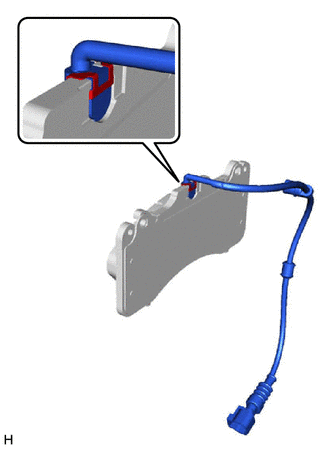

    Remove the pad wear indicator retainer and pad wear indicator wire assembly from the front disc brake pad (inner).

1. Remove the front disc brake anti-squeal shim from each front disc brake pad.
