System Description [09/2020 - ]
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- OPERATION EXPLANATION
- The reverse position signal is sent from the shift position switch to the parking assist ECU when the shift position is moved to R.
- An appropriate steering angle and timing information can be provided for the driver. This is based on the information from the steering angle sensor signal and the vehicle angle data signal that are sent to the parking assist ECU.
HINT:
The steering angle sensor signal is used to control parking assist only for estimated guide line mode.
- COMMUNICATION SYSTEM OUTLINE
- CAN communication system
- The panoramic view monitor system uses CAN communication for data communications between the parking assist ECU and each ECU.
- If a problem occurs in the CAN communication line, the parking assist ECU outputs a CAN communication malfunction DTC. (To check, use the GTS.)
Refer to DTC CHECK / CLEAR [09/2020 - ]
- If a problem occurs in the CAN communication line, the parking assist ECU outputs a CAN communication malfunction DTC. (To check, use the multi-display assembly diagnosis screen.)
Refer to DIAGNOSIS SYSTEM [09/2020 - ]
- If a CAN communication line malfunction DTC is output, repair the malfunction in the communication line and troubleshoot the panoramic view monitor system when data communication is normal.
- Since the CAN communication line has its own length and route, it cannot be repaired temporarily with a bypass wire, etc.
- CAN communication system
- VIDEO SIGNALS

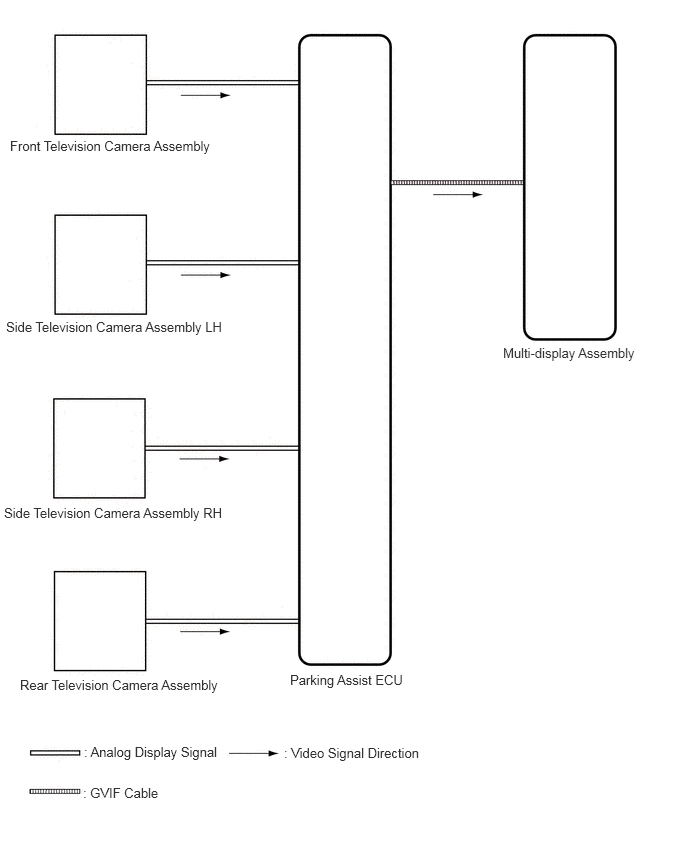

- Video signal circuit
- Video signals from the front television camera assembly are input into the parking assist ECU via analog communication lines (vehicle wire harness).
- Video signals from the side television camera assembly LH are input into the parking assist ECU via analog communication lines (vehicle wire harness).
- Video signals from the side television camera assembly RH are input into the parking assist ECU via analog communication lines (vehicle wire harness).
- Video signals from the rear television camera assembly are input into the parking assist ECU via analog communication lines (vehicle wire harness).
- Video signals from the parking assist ECU are input into the multi-display assembly via GVIF cable.
- Screen display
- Video signals input from each camera are processed in the parking assist ECU and displayed on the multi-display assembly as the panoramic view monitor system screen.
- Video signal circuit
- DIAGNOSTIC FUNCTION OUTLINE
- This panoramic view monitor system has a diagnostic function displayed in the multi-display assembly. This function enables the calibration (adjustment and verification) of the panoramic view monitor system.
Refer to DIAGNOSIS SYSTEM [09/2020 - ]
- The panoramic view monitor system can check the following items by using the GTS.
Item Proceed to DTC Refer to DTC CHECK / CLEAR [09/2020 - ] Data List / Active Test Refer to DATA LIST / ACTIVE TEST [09/2020 - ]
- This panoramic view monitor system has a diagnostic function displayed in the multi-display assembly. This function enables the calibration (adjustment and verification) of the panoramic view monitor system.
- CALIBRATION
- Use the panoramic view monitor system diagnosis screen for calibration and checking of the panoramic view monitor system.
Refer to DIAGNOSIS SYSTEM [09/2020 - ]
NOTE:Part replacement and work performed during servicing may require calibration of the panoramic view monitor system and other systems.
Refer to CALIBRATION [09/2020 - ]
- Use the panoramic view monitor system diagnosis screen for calibration and checking of the panoramic view monitor system.
