Installation [04/2013 - 09/2020]: Procedure

  1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

    HINT:

    Use the same procedure to for child restraint seat tether anchor brackets.

    1. Engage the guide to install the child restraint seat tether anchor bracket with the bolt.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  2. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER

    HINT:

    Use the same procedure for all child restraint seat tether anchor covers.

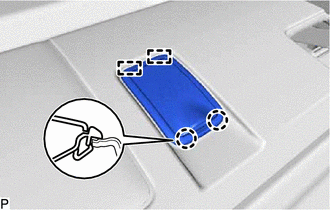

    1. Engage the 2 guides and 2 claws to install the child restraint seat tether anchor cover.
      GTY457071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 7 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 7 [10/2016 - 09/2020]

  4. INSTALL REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 6 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 6 [10/2016 - 09/2020]
