Components [10/2016 - ]

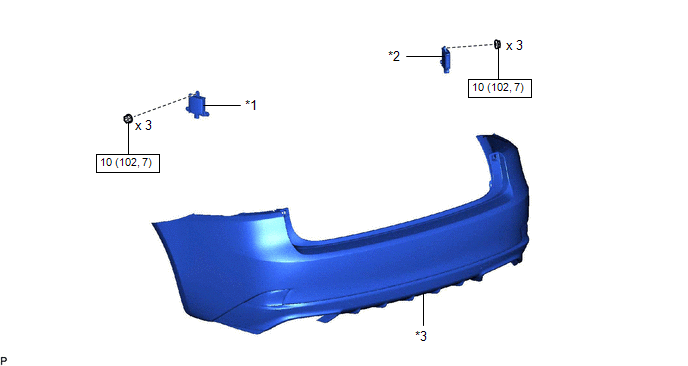

Fig 1: Blind Spot Monitor Sensor Replacement Components With Torque Specifications [10/2016 - ]
GTY678956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BLIND SPOT MONITOR SENSOR LH *2 BLIND SPOT MONITOR SENSOR RH
*3 REAR BUMPER ASSEMBLY - -
N.m (kgf/cm, ft.lbf) : Specified torque - -
