Adjustment [09/2015 - ]: Procedure

  1. ADJUST OBJECT RECOGNITION CAMERA
    NOTE:
    GTY285445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Make sure there are no black and white patterned objects in front of the vehicle.

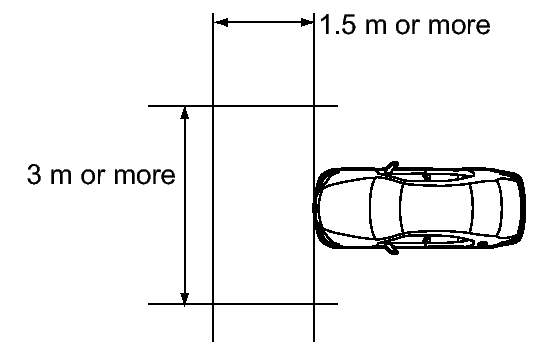

    • Perform the measurement in a place with no wind, and make sure there is a distance of 1.5 m (4.92 ft.) or more in front of the vehicle and that the surface is level with no obstacles.
    • Check that there are no reflective materials in the surroundings or on the ground within a 3 m (9.84 ft.) or more x 3 m (9.84 ft.) or more area in front of the vehicle.
    • Perform the inspection in a bright area.
    • Turn the taillights on.
    • Do not turn the headlights on.
    1. Beam axis learning preparation
      1. Move the vehicle to a level surface.
      2. Make sure the engine oil in the vehicle is at the specified amount.
      3. Make sure the engine coolant in the vehicle is at the specified amount.
      4. Make sure the fuel tank is full.
      5. Make sure the spare tire is in the vehicle.
      6. Make sure the standard tools are in the vehicle.
      7. Make sure nobody is in the vehicle.
      8. Make sure no extra loads are in the vehicle.
      9. Adjust the tire pressures to the specified pressure.
      10. Set the height control switch to normal.
      11. Clean the front glass.
      12. If the lens of the object recognition camera sensor is dirty, apply a small amount of lens cleaner to a clean, soft cloth and clean the lens.
    2. Perform height control sensor adjustment
      1. Perform height control sensor adjustment (Refer to ADJUSTMENT [09/2015 - ] ).
        NOTE:

        Perform this procedure as accurately as possible.

    3. Perform the front wheel alignment adjustment
      1. for 2WD:

        Perform the front wheel alignment adjustment (Refer to ADJUSTMENT [09/2015 - 09/2016] Refer to ADJUSTMENT [09/2016 - ] ).

        NOTE:

        Perform this procedure as accurately as possible.

      2. for AWD:

        Perform the front wheel alignment adjustment (Refer to ADJUSTMENT [09/2015 - ] ).

        NOTE:

        Perform this procedure as accurately as possible.

    4. Perform the rear wheel alignment adjustment
      1. Perform the rear wheel alignment adjustment (Refer to ADJUSTMENT [09/2015 - ] ).
        NOTE:
        • Perform this procedure as accurately as possible.
        • Press the height control switch, change the vehicle height to HIGH and return it to NORM. Then repeat.
    5. Target sheet creation

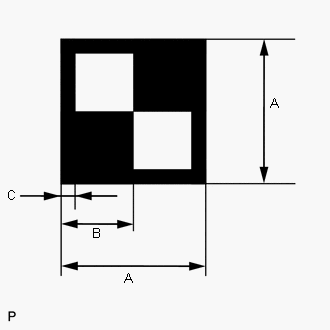

      1. Print or copy the illustration below. Check that the dimensions are +/-5 mm of the ones in the table below.
        GTY685314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Dimension

        Area Specification
        A 160 mm (6.30 in.)
        B 80 mm (3.15 in.)
        C 16 mm (0.630 in.)
        NOTE:
        • Make sure that the black areas of the target sheets are not glossy.
        • Make sure that the borders of the black and white areas on the target sheets are straight, and are not warped or blurry.

        If the print or copy's dimensions are not as specified, adjust settings and reprint or recopy the illustration so that the print or copy's dimensions are as specified.

        GTY220241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Target sheet attachment

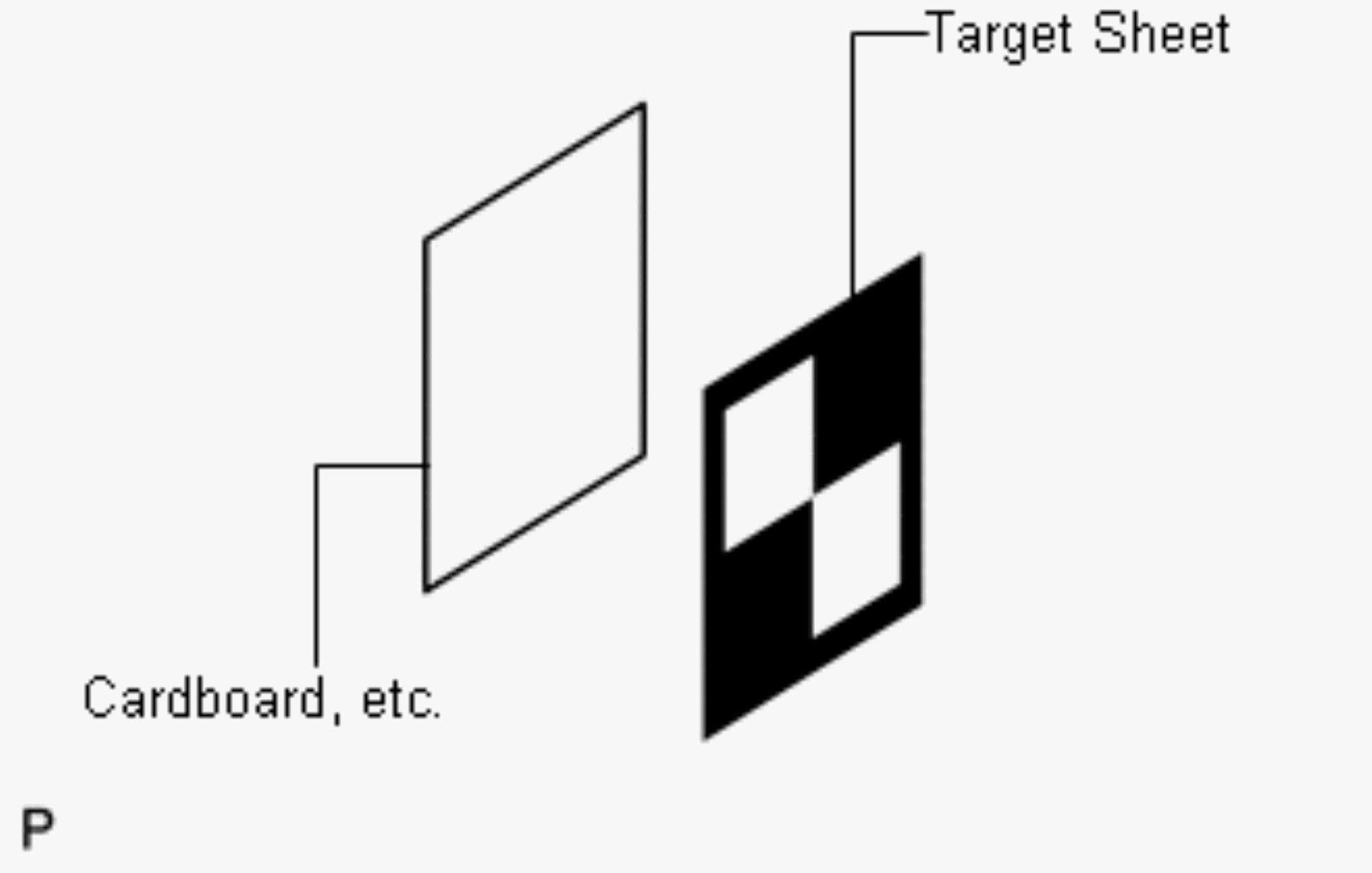

      GTY645326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Place the prepared target sheet on a piece of cardboard of the same size with the black area on the top right as shown in the illustration. Then use double-sided tape to fix the target sheet in place.
        NOTE:

        Do not attach reflective tape such as scotch tape, etc. to the target face as this may affect target recognition.

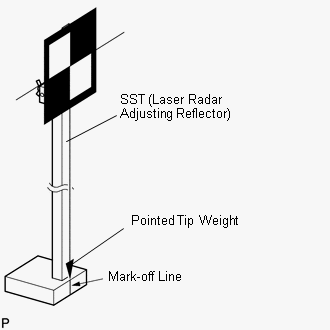

      2. Hang a weight with a pointed tip from the center of the target sheet. Then with double-sided tape, attach the target sheet to the reflector so that the weight aligns with the mark-off line of SST (laser radar adjusting reflector).
        • SST: 09870-60000
          • 09870-60010
          • 09870-60020
        GTY289693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Perform this procedure as accurately as possible.
        • Attach the target sheet so that it is horizontal with the ground.

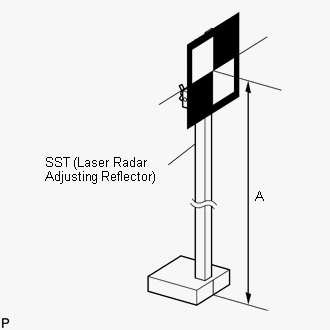

      3. Move the reflector up and down to position the center of the target at the height shown in the illustration, and then fix it in place.

        Dimension A

        1270 mm (4.17 ft.)

        GTY655904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09870-60000
          • 09870-60010
          • 09870-60020
        NOTE:

        Perform this procedure as accurately as possible.

    7. Target placement point measurement
      NOTE:
      • Perform this procedure as accurately as possible.
      • Do not place reflective materials in the area behind the target.
      • Make sure there are no patterns on the wall behind the target.
      • Make sure the distance between the target and wall is within 3 m (9.84 ft.).
      • Do not place black and white patterned objects near the target.
      • Make sure the target's shadow is not on the wall, as the camera may have a recognition error.

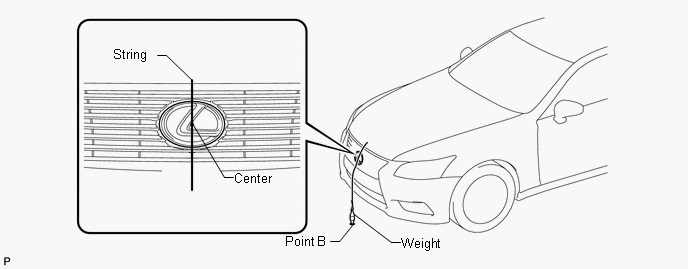

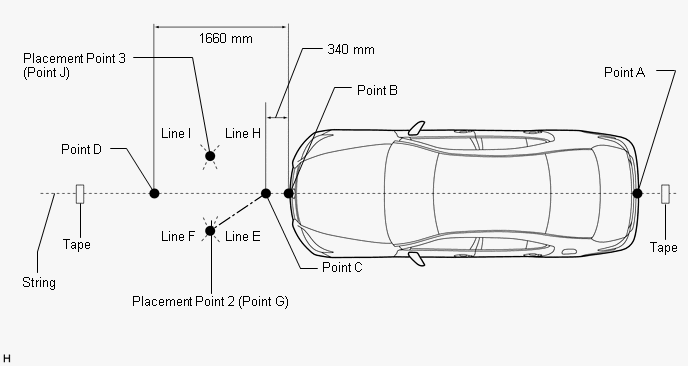

      1. From the center of the front bumper (center of the emblem), hang a weight with a pointed tip, and mark point B on the ground.
        GTY668843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

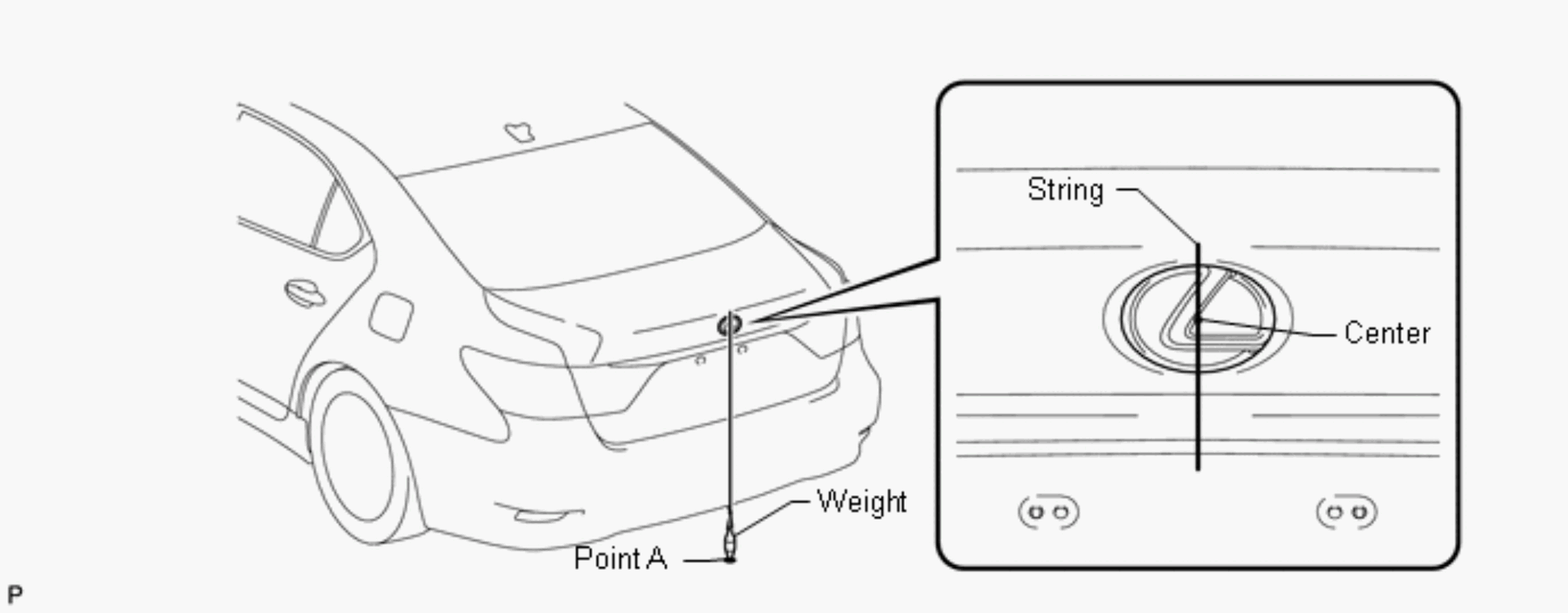

      2. From the center of the rear bumper (center of the emblem), hang a weight with a pointed tip, and mark point A on the ground.
        GTY672924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Using a piece of string that uses point A as a starting point and that passes through point B, make a straight line on the ground ahead of the vehicle 2 m (6.56 ft.) or more from point B.

        HINT:

        • Make sure to secure the string (using tape, etc.) when it is taut.
        • Lightly flick the string with your fingers several times to confirm that the string is aligned above point B.
      4. Mark point C at a position 340 mm (1.12 ft.) from point B.
        GTY653875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Mark point D at a position 1660 mm (5.44 ft.) from point B.
      6. Using the string, mark line E at a position 1000 mm (3.28 ft.) from point C.
      7. Using the string, mark line H at a position 1000 mm (3.28 ft.) from point C.
      8. Using the string, mark line F at a position 1000 mm (3.28 ft.) from point D.
      9. Using the string, mark line I at a position 1000 mm (3.28 ft.) from point D.
      10. Mark point G at the point where line E and line F intersect (placement point 2).
      11. Mark point J at the point where line H and line I intersect (placement point 3).
      12. Secure a string that connects point G and point J to the ground (target placement line).

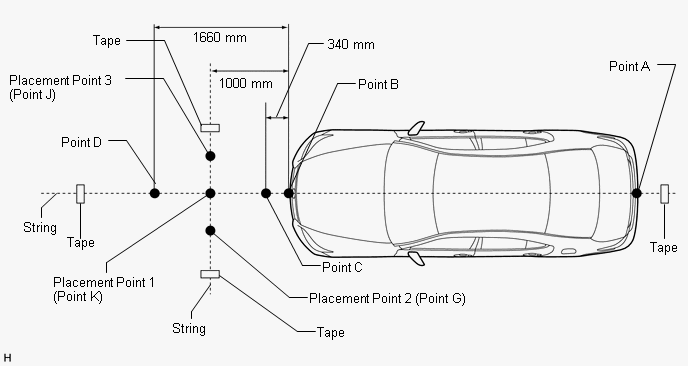

        GTY683740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      13. Mark point K at the intersection between the string connecting points C and D and the string connecting points G and J (placement point 1).
      14. Confirm the distance measurements for points K, G, and J (placement points 1, 2, and 3) again.

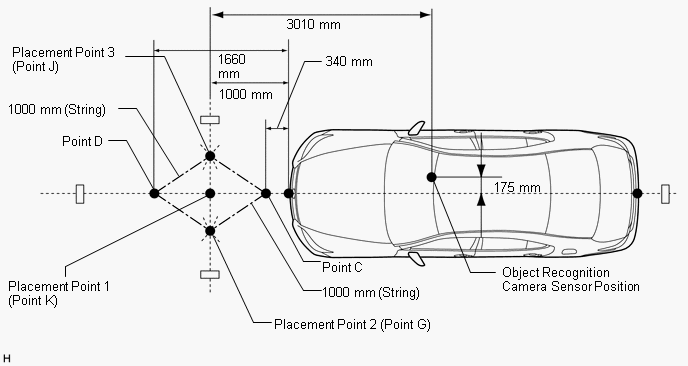

        GTY671289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Object recognition camera sensor height measurement
      NOTE:
      • Do not place black and white patterned objects near the target.
      • Face the vehicle toward a wall with no patterns, or make sure the background behind the target has no patterns.
      • Perform this procedure as accurately as possible.
      • Do not place reflective materials in the area behind the target.
      • Make sure there are no patterns on the wall behind the target.
      • Make sure the distance between the target and wall is within 3 m (9.84 ft.).
      • Make sure the target's shadow is not on the wall, as the camera may have a recognition error.

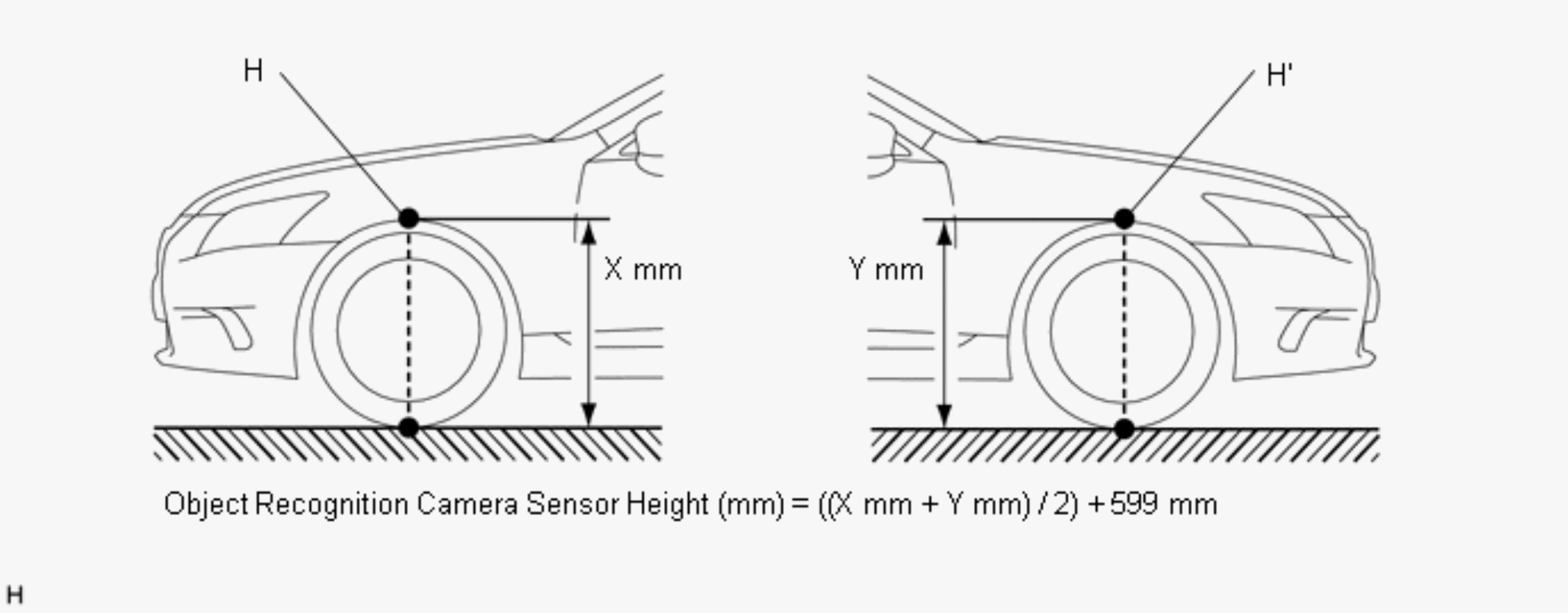

      1. Measure the distance (X mm or in.) from the ground to point H for the front left wheel arch.
        GTY617740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Measure the distance (Y mm or in.) from the ground to point H for the front right wheel arch.
      3. The average of the 2 distances (X mm or in., Y mm or in.) plus 599 mm (1.96 ft.) is the height of the object recognition camera sensor.
    9. Memorize camera/target position
      NOTE:
      • Close all doors.
      • Perform the procedure with no one in the vehicle.
      • During the procedure, do not lean on the vehicle.
      • Illuminate the clearance lights.
      • Do not illuminate the headlights.
      1. When using the Techstream:
        1. Connect the Techstream to the DLC3.
        2. Turn the engine switch on (IG).*1
        3. Turn the Techstream main switch ON.
        4. Select "Connect to Vehicle".
        5. Under "Option", select "LKA System".
        6. Under "System Selection Menu", select "All ECUs".
        7. Select "Lane Keeping Assist" or "Pre-Collision 2", and then select "Camera/Target Position Memory".

          HINT:

          A buzzer will sound for 1 second.

        8. Follow the Techstream display and continue with the adjustment.
      2. Input the measured height of the object recognition camera sensor and the horizontal position of the camera "175 mm (6.89 in.)" into the input screen. Then press the "Enter" button on the display screen.
      3. Input "3010 mm (119 in.)" for the distance from the camera to the target and "1270 mm (50.0 in.)" for the height of the target into the input screen. Then press the "Enter" button on the display screen.
      4. Press the "Exit" button to finish the camera/target position memory mode.
        NOTE:

        If "Error Camera/target position memory" is displayed on the screen, press the "Try Again" button, and repeat from procedure *1 again.

    10. Beam axis learning
      1. Select "LKA System" from the display screen.*1
      2. Select "Utility" from the display screen.
      3. Select "Camera axis adjust" from the display screen.
      4. Follow the Techstream display and continue with the adjustment.
      5. Align the target sheet with the target placement line and align the mark-off line with placement point 1 (point K).
        GTY658362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Check that the screen displays beam axis learning for target 1, and then press the "Enter" button on the display screen.

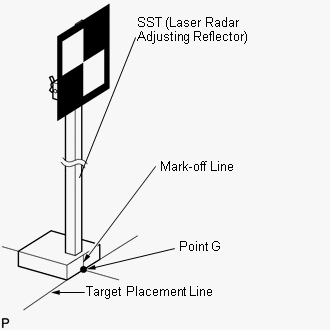

      7. Align the target sheet with the target placement line and align the mark-off line with placement point 2 (point G).
        GTY684147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Check that the screen displays beam axis learning for target 2, and then press the "Enter" button on the display screen.
        NOTE:

        Within 3 minutes after the screen displays the beam axis learning for target 2, move the target and press the "Enter" button on the display screen.

      9. Align the target sheet with the target placement line and align the mark-off line with placement point 3 (point J).
        GTY622095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      10. Check that the screen displays beam axis learning for target 3, and then press the "Enter" button on the display screen.
        NOTE:

        Within 3 minutes after the screen displays the beam axis learning for target 3, move the target and press the "Enter" button on the display screen.

      11. Press the "Exit" button to finish the beam axis learning mode.
        NOTE:

        If "Error camera axis adjust" is displayed on the screen, press the "Exit" button. Then after checking the conditions below, turn the engine switch on (IG) and off, and repeat from procedure *1 again.

        • Height of the target.
        • Distance from the object recognition camera sensor to the target.
        • Orientation of target (black area positioned on the top right).
        • If surrounding area is bright enough.
        • If black and white patterned objects are placed near the target.
