Removal [09/2015 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. REMOVE VISOR BRACKET COVER

    Refer to PROCEDURE - Step 32

  3. REMOVE VISOR ASSEMBLY LH

    Refer to PROCEDURE - Step 33

  4. REMOVE VISOR ASSEMBLY RH

    Refer to PROCEDURE - Step 34

  5. REMOVE VISOR HOLDER

    Refer to PROCEDURE - Step 35

  6. REMOVE RAIN SENSOR COVER

    Refer to PROCEDURE - Step 3

  7. REMOVE INNER REAR VIEW MIRROR ASSEMBLY
    1. w/o Automatic High Beam System, Adaptive High Beam System:

      (Refer to PROCEDURE - Step 4 )

    2. w/ Automatic High Beam System, Adaptive High Beam System:

      (Refer to PROCEDURE - Step 5 )

  8. REMOVE OBJECT RECOGNITION CAMERA
    1. Partially remove the roof headlining assembly.

      HINT:

      It is not necessary to completely remove the roof headlining. Slightly lower the front section of the roof headlining so that the object recognition camera can be removed.

    2. Disconnect the 3 connectors.
    3. Detach the 2 wire harness clamps.
    4. Detach the claw and disconnect the connector clamp.
    5. Remove the 3 bolts.
    6. Detach the clip and remove the object recognition camera.

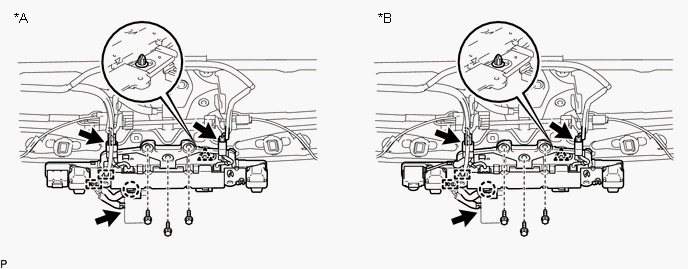

      GTY403987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A w/o Night View System *B w/ Night View System
