Installation [09/2015 - ]: Procedure

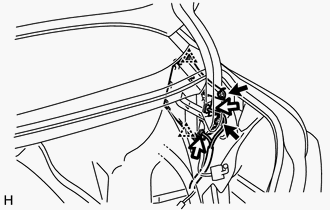

INSTALL OBJECT RECOGNITION ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Attach the 2 clips to install the object recognition ECU.
2. Install the 2 bolts.
  Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)
3. Connect the 2 connectors.
  NOTE:
  Do not use an object recognition ECU which has been dropped or subjected to any strong shocks.
INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH
Refer to PROCEDURE - Step 4
INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 8
INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (w/o Rear Cooler)
Refer to PROCEDURE - Step 9
INSTALL NO. 1 COOLER COVER
Refer to PROCEDURE - Step 19
INSTALL ROPE HOOK
Refer to PROCEDURE - Step 14
INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 10
INSTALL REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 6
INSTALL DECK TRIM SIDE BOARD RH
Refer to PROCEDURE - Step 12
INSTALL DECK TRIM SIDE BOARD LH
Refer to PROCEDURE - Step 11
INSTALL ROPE HOOK ASSEMBLY
Refer to PROCEDURE - Step 13
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 15
ADJUST OBJECT RECOGNITION CAMERA
See step 1
