DTC P00AC: Intake Air Temperature Sensor 1 Circuit Low Bank 2; DTC P00AD: Intake Air Temperature Sensor 1 Circuit High Bank 2; DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [09/2015 - ]: Description

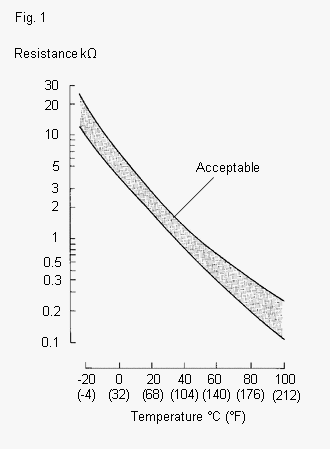

Fig 1: Intake Air Temperature Sensor Resistance Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

• The Intake Air Temperature (IAT) sensor, mounted on the Mass Air Flow (MAF) meter, monitors the IAT. The IAT sensor has a built-in thermistor with a resistance that varies according to the temperature of the intake air. When the IAT is low, the resistance of the thermistor increases. When the temperature is high, the resistance drops. These variations in resistance are transmitted to the ECM as voltage changes (See Fig. 1).
• The IAT sensor is powered by a 5 V supply from the THA and THA2 terminals of the ECM, via resistor R.
• Resistor R and the IAT sensor are connected in series. When the resistance value of the IAT sensor changes, according to changes in the IAT, the voltage at terminal THA and THA2 also varies. Based on this signal, the ECM increases the fuel injection volume when the engine is cold to improve drivability.

  HINT:

  When DTC P00AC, P00AD, P0112 or P0113 is set, the ECM enters fail-safe mode. During fail-safe mode, the IAT is estimated to be 20°C (68°F) by the ECM. Fail-safe mode continues until a pass condition is detected.

HINT:

When any of these DTCs are stored, check the IAT by entering the following menus: Powertrain / Engine and ECT / Data List / All Data / Intake Air Temp B1S1 or Intake Air Temp B2S1.
