System Diagram [10/2014 - 09/2017]

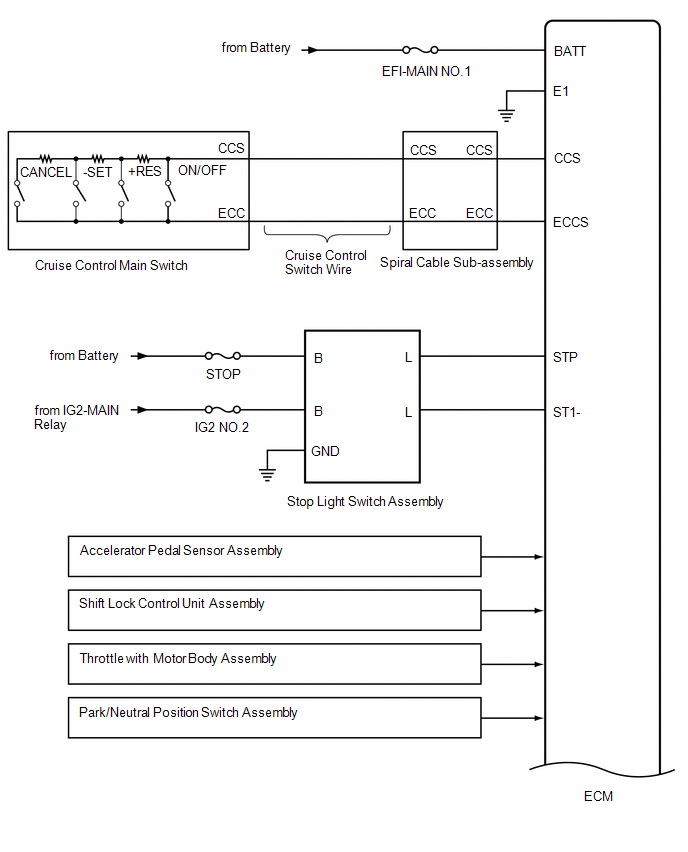

Fig 1: Cruise Control System Wiring Diagram (1 Of 2)
GTY959089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

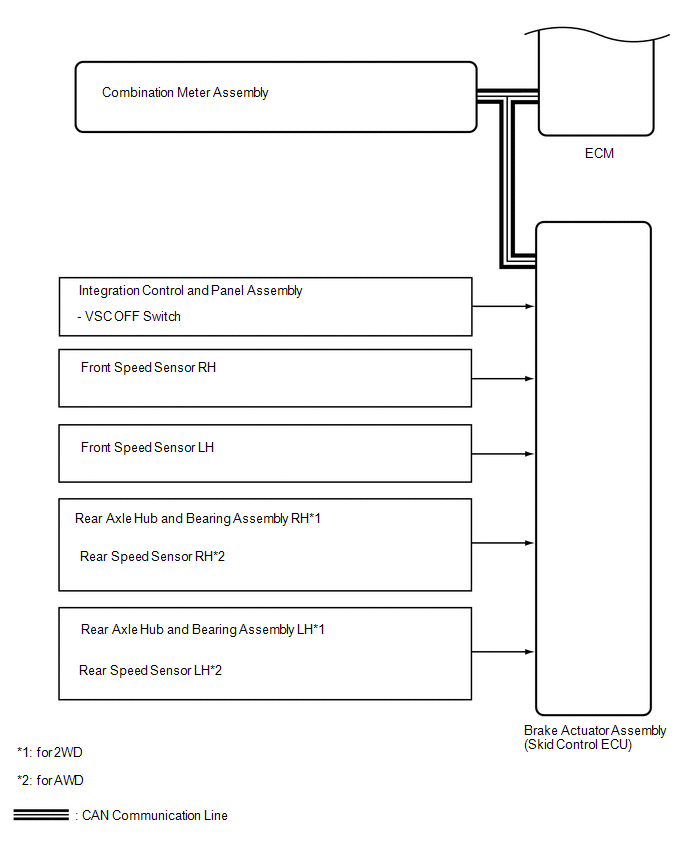

Fig 2: Cruise Control System Wiring Diagram (2 Of 2)
GTY516809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Combination Meter Assembly
  • Cruise Control Indicator Light
  • Cruise Control SET Indicator Light
 Cruise control indicator light and cruise control SET indicator light operation signal CAN
Brake Actuator Assembly (Skid Control ECU) ECM Vehicle speed signal CAN
