Check For Intermittent Problems [09/2020 - 11/2021]
- CHECK FOR INTERMITTENT PROBLEMS
HINT:
A momentary interruption (open circuit) in the connectors and/or wire harness between the sensors and ECUs can be detected using the Data List function of the Techstream.
- Turn the engine switch off.
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Follow the directions on the Techstream to display the Data List and select areas where momentary interruption should be monitored.
HINT:
- A momentary interruption (open circuit) cannot be detected for 3 seconds after the engine switch is turned on (IG) (initial check).
- If Under intermittent remains displayed for one of the items on the Techstream, check for continuity between the ECU and the item for which Under intermittent is displayed.
- If a momentary interruption occurs and Under intermittent is displayed on the Techstream, Under intermittent will remain displayed on the Techstream for 1 second after the circuit returns to normal.
Chassis > Brake/EPB > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note FR Speed Open Front speed sensor RH open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C0506-14, C14E3-14 FL Speed Open Front speed sensor LH open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C0500-14, C14E0-14 RR Speed Open Rear speed sensor RH open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C0512-14, C14E9-14 RL Speed Open Rear speed sensor LH open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C050C-14, C14E6-14 EFI Communication Open ECM communication open detection Under intermittent or Normal Under intermittent: ECM communication invalid state detected
Normal: ECM communication invalid state not detected- Related Vehicle Control History (RoB): X2079
- Related DTC: U0100-87
Yaw Rate Open Yaw rate sensor open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: U0125-87 Deceleration Open Acceleration sensor open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: U0125-87 Steering Open Steering angle sensor open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: U0126-87 Master Cylinder Open Master cylinder pressure sensor open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C0540-31 FR Speed Sensor Voltage Open Front speed sensor RH voltage open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C0506-1F FL Speed Sensor Voltage Open Front speed sensor LH voltage open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C0500-1F RR Speed Sensor Voltage Open Rear speed sensor RH voltage open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C0512-1F RL Speed Sensor Voltage Open Rear speed sensor LH voltage open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C050C-1F M/C Pressure Sensor Noise Master cylinder pressure sensor noise detection Under intermittent or Normal Under intermittent: Noise detected
Normal: Noise not detectedRelated DTC: C0540-1F Brake Pedal Switch Open Brake pedal load sensing switch open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C0040-13 Yaw Rate Sensor Voltage Open Yaw rate sensor voltage open detection Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C14D7-1C EFI Communication Invalid ECM communication invalid detection Under intermittent or Normal Under intermittent: ECM communication invalid state detected
Normal: ECM communication invalid state not detected- Related Vehicle Control History (RoB): X2079
- Related DTC: U0100-87
Master Cylinder Pressure Sensor Power Supply Open Master cylinder pressure sensor power supply voltage status Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C0540-49 Solenoid Power Supply Open Solenoid power supply voltage status Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C143A-7F Motor Power Supply Open Motor power supply voltage status Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C052F-14 Stop Switch Open Momentary interruption (open circuit) status in wire harness between skid control ECU (brake actuator assembly) and stop light switch assembly status Under intermittent or Normal Under intermittent: Momentary interruption detected
Normal: Momentary interruption not detectedRelated DTC: C1380-7E, C1380-7F, P0571-13 - Select the line graph display.
- Using the line graph, check whether the status is "Under intermittent" or "Normal".
OK
Normal is displayed.
HINT:
If the display changes, this indicates that there has been a momentary interruption (open circuit) in the connector and/or wire harness. In this case, repair or replace the connectors and/or wire harnesses as one of them is faulty.
- While observing the screen, gently jiggle the connector or wire harness between the ECU and each sensors, or between ECUs.
OK
Normal is displayed.
HINT:

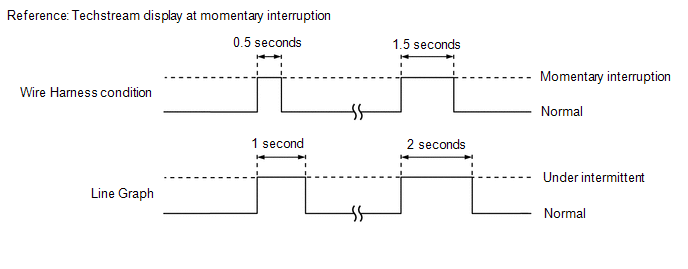

- If a momentary interruption occurs and Under intermittent is displayed on the Techstream, Under intermittent will remain displayed on the Techstream for 1 second after the circuit returns to normal.
- If the display changes, this indicates that there has been a momentary interruption (open circuit) in the connector and/or wire harness. In this case, repair or replace the connectors and/or wire harnesses as one of them is faulty.
- If a momentary interruption occurs and Under intermittent is displayed on the Techstream, Under intermittent will remain displayed on the Techstream for 1 second after the circuit returns to normal.
