System Diagram [09/2014 - 11/2017]

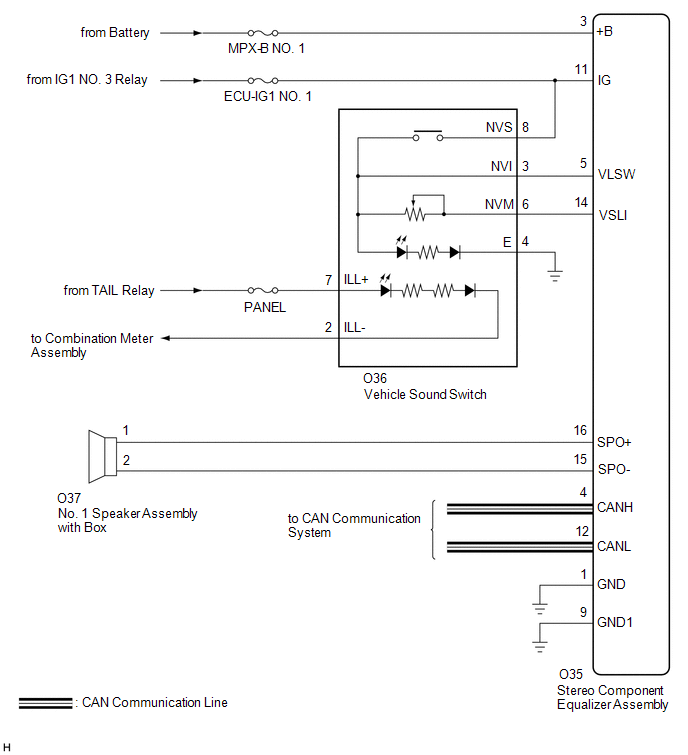

  1. GTY510420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    COMMUNICATION TABLE

    Sender Receiver Signal Line
    Skid Control ECU Assembly Stereo Component Equalizer Assembly Vehicle speed signal CAN
    ECM Stereo Component Equalizer Assembly Engine RPM signal
    Accelerator pedal angle signal
    Integration sports mode indicator signal
    Shift position P signal
    Shift position R signal
    Shift position D signal
    Shift position N signal
    Sport mode indicator signal
    Shift gear signal
    ECO mode indicator signal
    SNOW mode indicator signal
    Integration sports mode signal
    Under speed change signal
    Gear position signal
    Power mode signal
    Main Body ECU (Multiplex Network Body ECU) Stereo Component Equalizer Assembly Trip count signal
    Time count signal
