Components [09/2014 - ]

WARNING: This page is about a different variant/trim than selected.

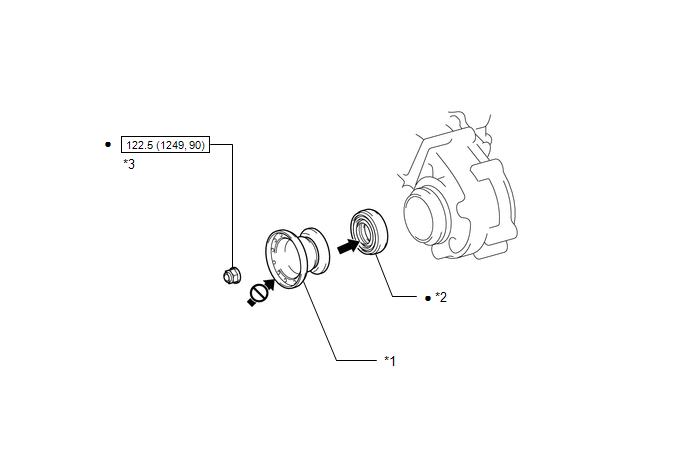

Fig 1: Transfer Case Front Oil Seal Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	FLANGE YOKE ASSEMBLY	*2	TRANSFER CHAIN CASE OIL SEAL
*3	FLANGE YOKE NUT	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP Grease		Do not apply lubricants to the threaded parts
