Components [09/2014 - ]

WARNING: This page is about a different variant/trim than selected.

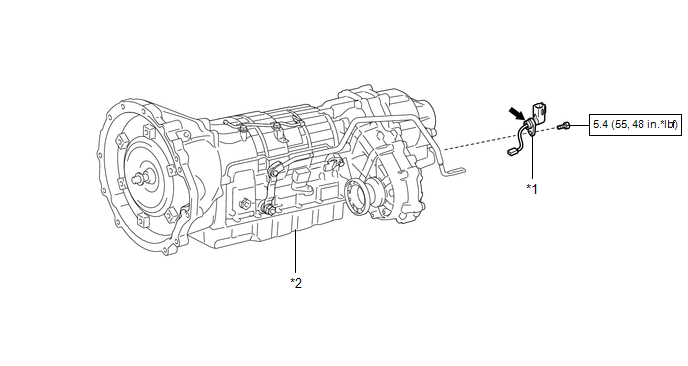

Fig 1: Transfer Wire Replacement Components With Torque Specifications
GTY514437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSFER TRANSMISSION WIRE *2 AUTOMATIC WITH TRANSFER TRANSMISSION ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque ATF WS
