System Diagram [10/2015 - 11/2017]

GTY516194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY521517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

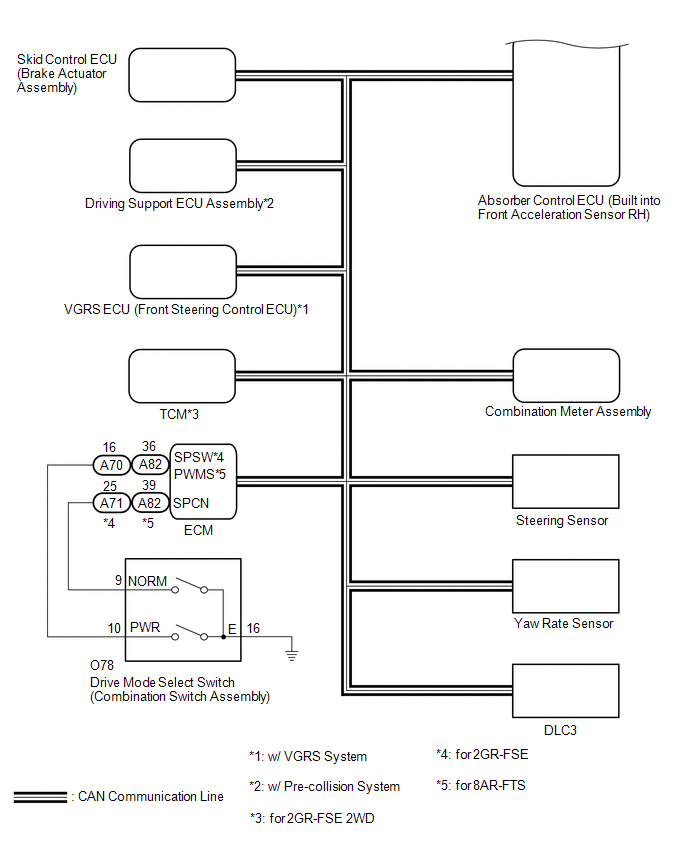

GTY649380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
