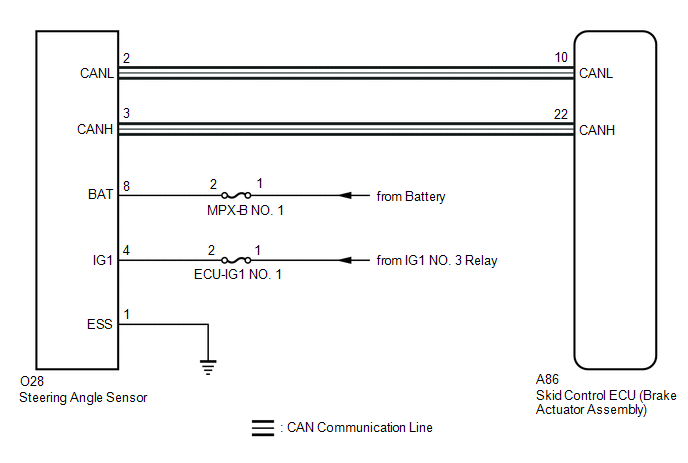

DTC C0526-2A: Steering Angle Sensor Module Signal Stuck In Range [03/2019 - 01/2023]: Wiring Diagram

GTY954362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
