Smart Access System With Push-Button Start (For Entry Function) - Diagnostics - Symptom Tests
>>
SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)
>>
Entry Exterior Alarm and Answer-back Buzzer do not Sound [09/2015 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Entry Exterior Alarm and Answer-back Buzzer do not Sound [09/2015 - ]: Wiring Diagram

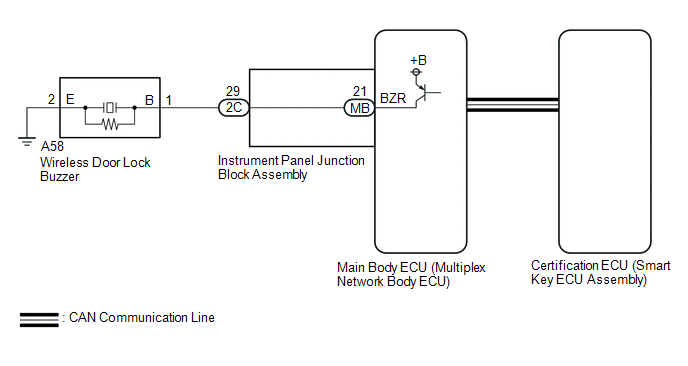

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
