System Diagram [08/2019 - ]

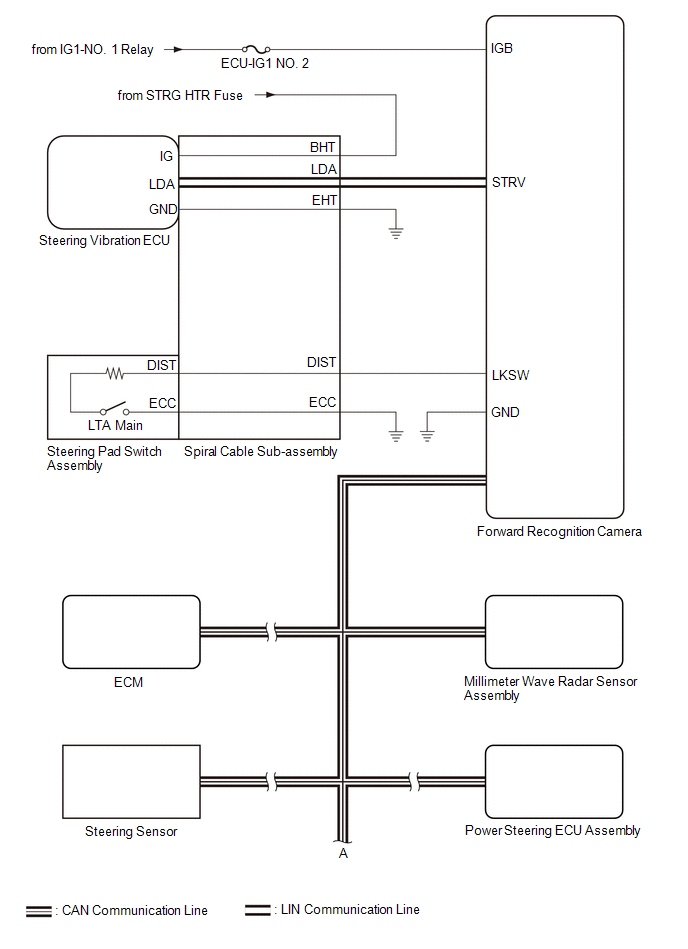

GTY947418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

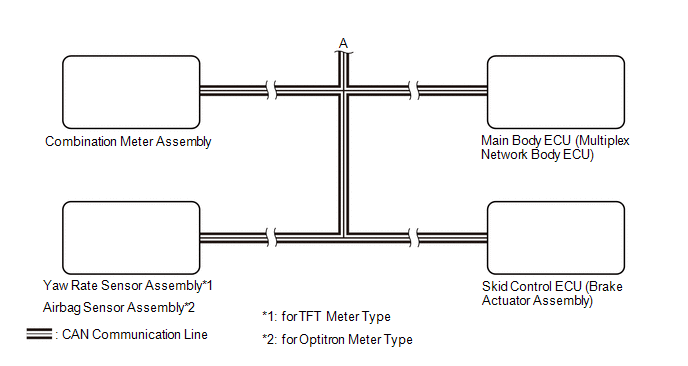

GTY948184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

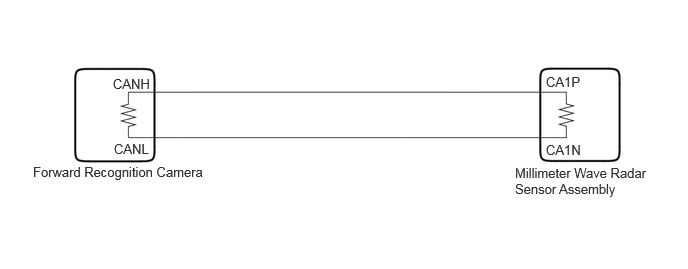

  1. LOCAL BUS
    GTY929748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
