System Diagram [09/2015 - 08/2019]

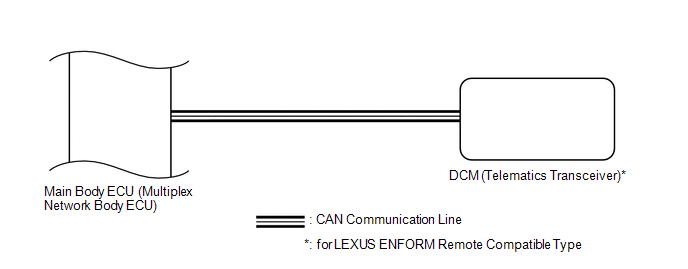

Fig 1: Power Door Lock Control System Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

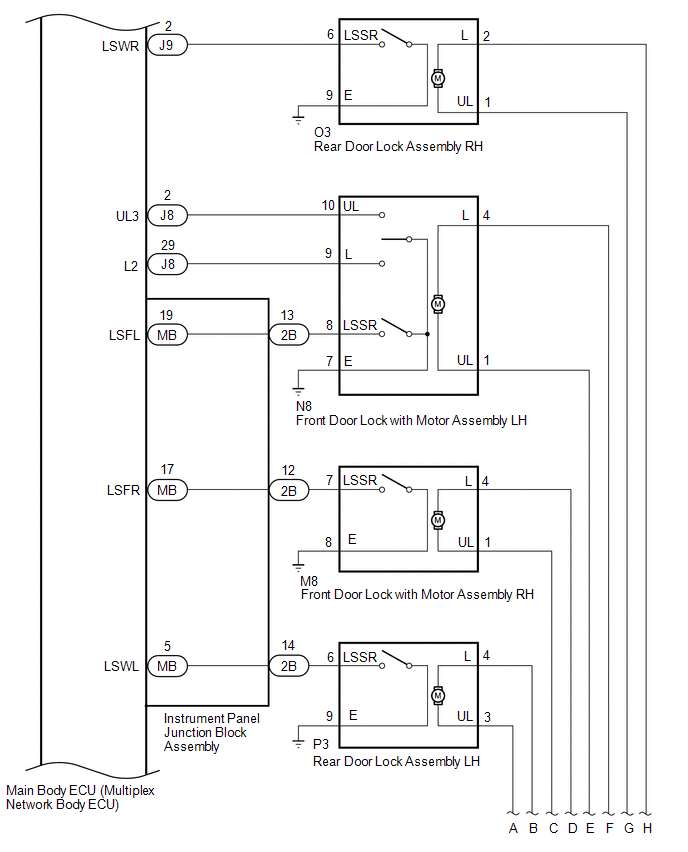

Fig 2: Power Door Lock Control System Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

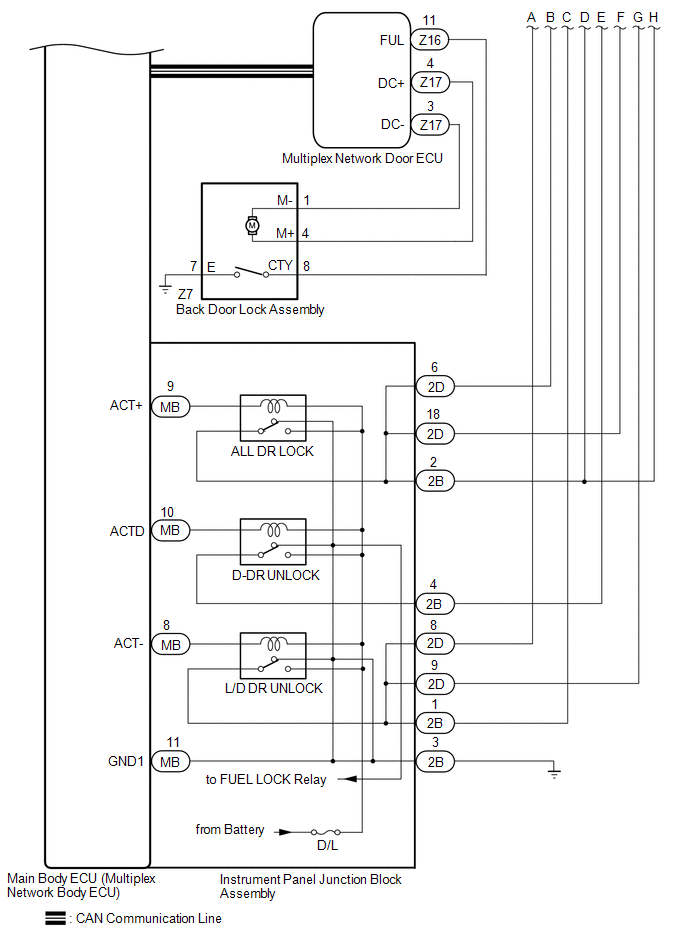

Fig 3: Power Door Lock Control System Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

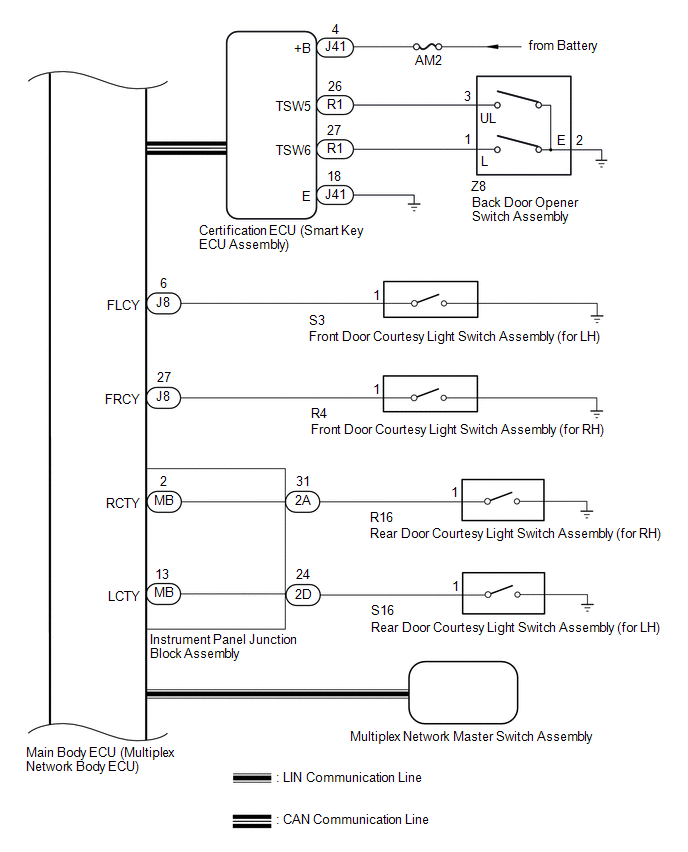

Fig 4: Power Door Lock Control System Diagram (4 Of 5)

Fig 5: Power Door Lock Control System Diagram (5 Of 5)

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Multiplex Network Master Switch Assembly	Main Body ECU (Multiplex Network Body ECU)	Door control switch signal	LIN
Certification ECU (Smart Key ECU Assembly)	Main Body ECU (Multiplex Network Body ECU)	Back door opener switch signal	CAN
Multiplex Network Door ECU	Main Body ECU (Multiplex Network Body ECU)	Power back door control signal	CAN
