RX 350 Base, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window Control System - Diagnostic Codes & Symptom Tests
>>
Power Window Control System
>>
Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH [09/2015 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH [09/2015 - ]: Wiring Diagram

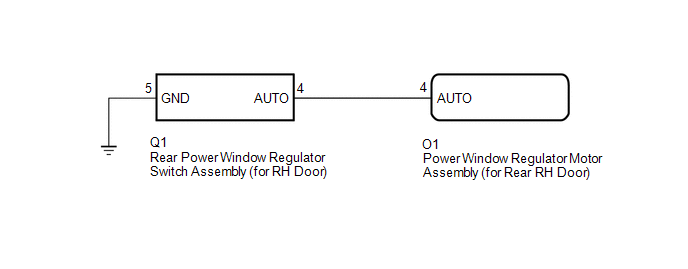

Fig 1: Power Window Control System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
