Monitor Description
This monitor will run when the engine is started at an engine coolant temperature of -10 to 50°C (14 to 122°F). The DTC will be stored after the engine idles for 13 seconds (2 trip detection logic).

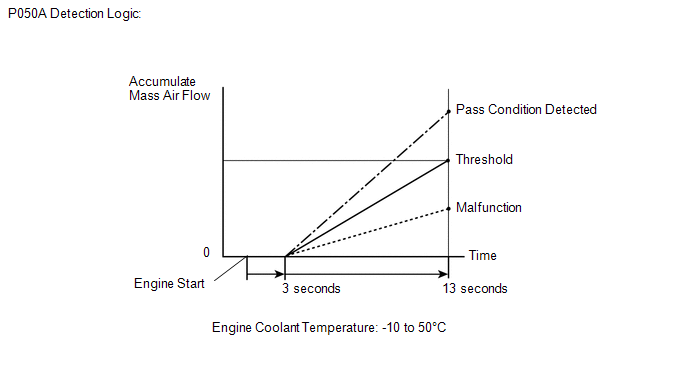

The DTC is designed to monitor the idle air control at cold start. When the engine is started at an engine coolant temperature of less than 50°C (122°F), the ECM assembly measures the accumulated mass air flow during engine idling. If the accumulated mass air flow does not reach the specified level within 10 seconds, the ECM assembly interprets this as a malfunction. The MIL is illuminated and a DTC is stored when the malfunction is detected in consecutive driving cycles (2 trip detection logic).
The electronic throttle control system controls the idle speed. The electronic throttle control system operates the throttle actuator to open and close the throttle valve, and adjusts the intake air amount to achieve the target idle speed.
The idle speed control learned values are cleared by performing a learned value reset. Idle speed control learning needs to be performed before this DTC can be stored.
HINT:
Idle speed control learning* is performed when the engine is warmed up and has been idling for 5 minutes.
*: Refer to Initialization.
Refer to INITIALIZATION [10/2015 - ]
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory |
|---|---|---|---|---|---|
| P050A | Cold Start Idle Air Control System Performance | Insufficient mass air flow after a cold start (2 trip detection logic). |
|
Comes on | DTC stored |
