DTC P0107: Manifold Absolute Pressure / Barometric Pressure Circuit Low Input; DTC P0108: Manifold Absolute Pressure / Barometric Pressure Circuit High Input [08/2015 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / MAP.
5. Read the MAP value.

   OK

   Same value as the actual atmospheric pressure.

   HINT:

   • Standard atmospheric pressure is 101 kPa(abs) [758 mmHg(abs)]. For every 100 m (328 ft.) increase in altitude, pressure drops by 1 kPa (7.5 mmHg). The pressure also varies due to the weather (high atmospheric pressure, low atmospheric pressure).
   • Also, check "Atmosphere Pressure" in the Data List.

Result:  OK

OK

CHECK FOR INTERMITTENT PROBLEMS

(See article. Refer to CHECK FOR INTERMITTENT PROBLEMS [08/2014 - ] )

Result:  NG

NG

See step  2

1. Disconnect the manifold absolute pressure sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Turn the power switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   D3-3 (VC) - D3-2 (E2)	Power switch on (IG)	4.75 to 5.25 V
   D3-1 (PIM) - D3-2 (E2)	Power switch on (IG)	3.0 to 5.25 V

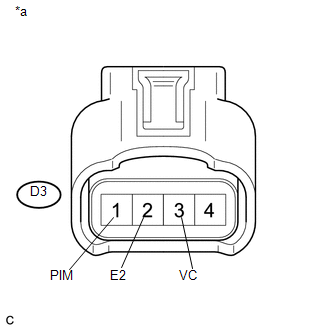

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Manifold Absolute Pressure Sensor)

   RESULT



   Result	Proceed to
   Outside of standard range	A
   Within standard range	B

Result:  B

B

See step  4

Result:  A

A

See step  3

1. Disconnect the manifold absolute pressure sensor connector.
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D3-3 (VC) - D27-72 (VCPM)	Always	Below 1 Ω
   D3-2 (E2) - D27-71 (EPIM)	Always	Below 1 Ω
   D3-1 (PIM) - D27-69 (PIM)	Always	Below 1 Ω
   D3-3 (VC) or D27-72 (VCPM) - Body ground	Always	10 kΩ or higher
   D3-2 (E2) or D27-71 (EPIM) - Body ground	Always	10 kΩ or higher
   D3-1 (PIM) or D27-69 (PIM) - Body ground	Always	10 kΩ or higher

Result:  OK

OK

REPLACE ECM

(See article. Refer to REMOVAL [08/2014 - ] )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Replace the manifold absolute pressure sensor (See article. Refer to REMOVAL [08/2014 - ] ).

Result:  NEXT

NEXT

See step  5

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (See article. Refer to DTC CHECK / CLEAR [08/2014 - ] ).
4. Turn the power switch off and wait for at least 30 seconds.
5. Turn the power switch on (IG).
6. Turn the Techstream on.
7. Drive the vehicle in accordance with the diving pattern described in the Confirmation Driving Pattern.
8. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
9. Read the DTCs.
   RESULT



   Result	Proceed to
   DTC is not output	A
   DTC P0107 or P0108 is output	B

Result:  A

A

END

Result:  B

B

REPLACE ECM

(See article. Refer to REMOVAL [08/2014 - ] )
