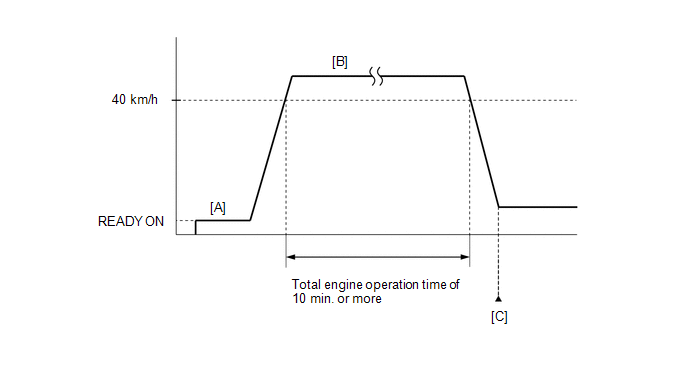

Confirmation Driving Pattern
NOTE:
If the MIL or master warning light illuminates, stop the road test immediately. If DTC P3190, P3191 or P3193 is stored and engine operation is disabled, the vehicle can be driven only a short distance as the HV battery will not be charged.
- Apply the parking brake firmly.
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the power switch off and wait for at least 30 seconds.
- Turn the power switch on (READY) and turn the Techstream on.
- Fully depress the accelerator pedal for 10 seconds with the vehicle stopped, park (P) selected and the brake pedal depressed. [A]NOTE:
As soon as the engine starts, release the accelerator pedal.
- Drive the vehicle at an average of approximately 40 km/h (25 mph) or more until the total engine operation time is 10 minutes or more. [B]WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
It is not necessary to maintain the vehicle speed at 40 km/h (25 mph) throughout the road test.
- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. [C]
- Read the DTCs (including pending DTCs).
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
- Input the DTC: P3190 or P3191.
- Check the DTC judgment result.
Techstream Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
N/A - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
HINT:
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or N/A, idle the engine for 10 seconds or more and check the DTC judgment result again.
- If no pending DTC is output, perform a universal trip and check for permanent DTCs (See article. Refer to DTC CHECK / CLEAR [08/2014 - ]
).
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
