DTC B2274: ACC Monitor Malfunction (07/2015 -): Wiring Diagram

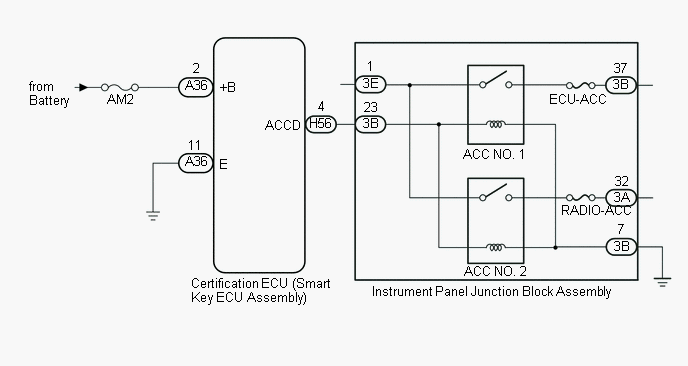

Fig 1: Certification ECU And instrument Panel Junction Block Wiring Diagram
GTY634714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
