DTC B2286: Runnable Signal Malfunction; DTC P0335: Crankshaft Position Sensor Circuit Malfunction (NE Signal) (07/2015 -): Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Power Source Control or Starting Control / Data List.
5. Read the Data List according to the display on the Techstream.
   POWER SOURCE CONTROL



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Engine Condition	Engine state/Stop or Run	Stop: Engine stopped Run: Engine running	-

   STARTING CONTROL



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Engine Speed	Engine speed/0 to 16383 r/min	Fluctuates in accordance with engine speed	-

   OK

   On the Techstream screen, the display changes as shown in the charts above.

   Result

   Result	Proceed to
   NG	A
   OK	B

Result:  B

B

GO TO SFI SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING (07/2015 -) )

Result:  A

A

See step  2

See step  1

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR IN CIRCUIT CONNECTED TO POWER SOURCE

Result:  OK

OK

See step  3

See step  2

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  4

1. Disconnect the A22 ECM connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A36-16 (NE) - A22-22 (NEO)	Always	Below 1 Ω
   A36-16 (NE) or A22-22 (NEO) - Body ground	Always	10 kΩ or higher

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  5

1. Reconnect the A36 certification ECU (smart key ECU assembly) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

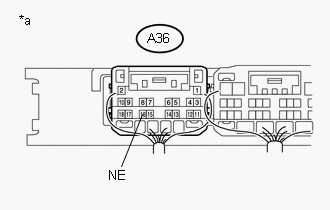

2. Check the engine speed input signal waveform at the terminal of the certification ECU.

   Standard Frequency

   Tester Connection	Condition	Specified Condition
   A36-16 (NE) - Body ground	Engine stopped	No pulse generated
   	Engine running	Pulse generated

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Certification ECU (Smart Key ECU Assembly)

Result:  OK

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(Refer to REMOVAL (07/2015 -) )

Result:  NG

NG

GO TO SFI SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING (07/2015 -) )
