DTC B2286: Runnable Signal Malfunction; DTC P0335: Crankshaft Position Sensor Circuit Malfunction (NE Signal) (07/2015 -): Wiring Diagram

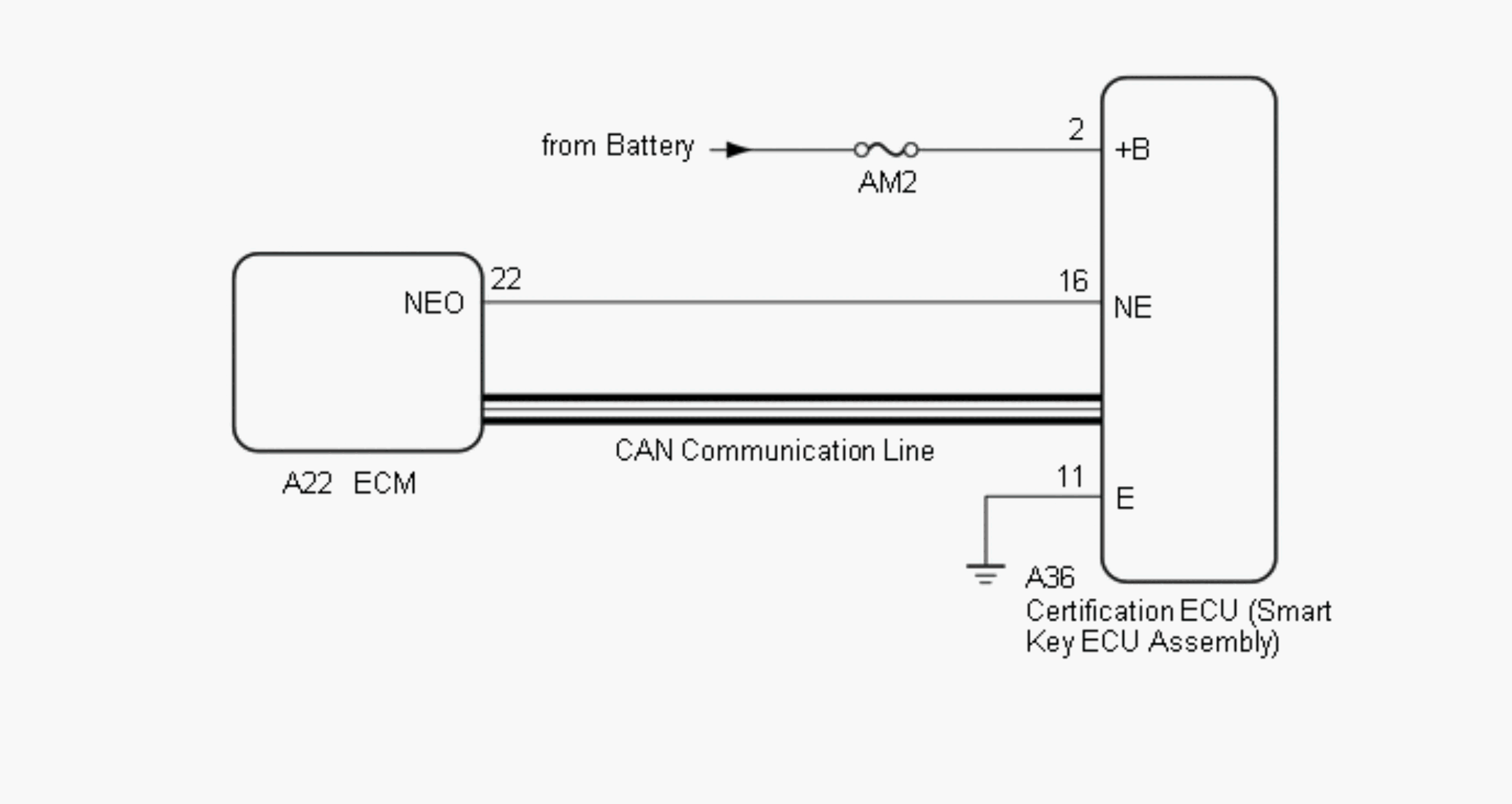

Fig 1: A22 ECU And Certification ECU Wiring Diagram
GTY673258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
