Active Control Engine Mount System [07/2015 - ]: Procedure
- CHECK VACUUM HOSES
- Check the air and vacuum hoses for looseness, disconnection and blockage.
OK
No looseness, disconnection or blockage.
TEXT IN ILLUSTRATION*1 Engine *2 Duty Vacuum Switching Valve (for Active Control Engine Mount) *3 Front Engine Mounting Insulator Assembly *4 ECM *5 Air Cleaner *6 Vacuum Tank *a to Vacuum Switching Valve (for Air Intake Control Valve)
Result: NG
NG
REPAIR OR REPLACE VACUUM HOSES
Result: OK
OK
See step 2
- Check the air and vacuum hoses for looseness, disconnection and blockage.
- CHECK VACUUM
- Disconnect the vacuum hose from the air cleaner cap.
- Start the engine.
- Check that the disconnected port located on the vacuum tank applies suction to your finger.
OK
Vacuum exists.
Result: NG
NG
CHECK AND REPLACE VACUUM SOURCE AND HOSES
Result: OK
OK
See step 3
- Disconnect the vacuum hose from the air cleaner cap.
- INSPECT DUTY VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT) (OPERATION)
- Inspect the duty vacuum switching valve (for active control engine mount) operation (Refer to PROCEDURE - Step 1 ).
Result: NG
NG
REPLACE DUTY VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT)
(Refer to REMOVAL [07/2015 - ] )
Result: OK
OK
See step 4
- INSPECT DUTY VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT) (RESISTANCE)
- Inspect the duty vacuum switching valve (for active control engine mount) resistance (Refer to PROCEDURE - Step 2 ).
Result: NG
NG
REPLACE DUTY VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT)
(Refer to REMOVAL [07/2015 - ] )
Result: OK
OK
See step 5
- INSPECT FRONT ENGINE MOUNTING INSULATOR ASSEMBLY
- Inspect the front engine mounting insulator assembly (Refer to ON-VEHICLE INSPECTION [07/2015 - ] ).
Result: NG
NG
REPLACE FRONT ENGINE MOUNTING INSULATOR ASSEMBLY
(Refer to REMOVAL [07/2015 - ] )
Result: OK
OK
See step 6
- CHECK TERMINAL VOLTAGE (POWER SOURCE OF DUTY VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT))
- Disconnect the duty vacuum switching valve (for active control engine mount) connector.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

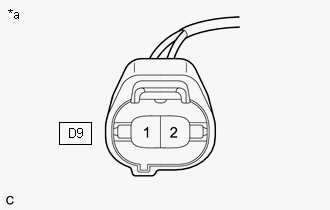

Tester Connection Condition Specified Condition D9-1 - Body ground Engine switch on (IG) 11 to 14 V TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Duty Vacuum Switching Valve (for Active Control Engine Mount))
Result: NG
NG
See step 8
Result: OK
OK
See step 7
- Disconnect the duty vacuum switching valve (for active control engine mount) connector.
- CHECK HARNESS AND CONNECTOR (DUTY VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT) - ECM)
- Disconnect the duty vacuum switching valve (for active control engine mount) connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition D9-2 - A22-8 (ACM) Always Below 1 Ω D9-2 or A22-8 (ACM) - Body ground Always 10 kΩ or higher
Result: OK
OK
REPLACE ECM
(Refer to REMOVAL [07/2015 - ] )
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- CHECK HARNESS AND CONNECTOR (DUTY VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT) - NO. 1 INTEGRATION RELAY)
- Disconnect the duty vacuum switching valve (for active control engine mount) connector.
- Remove the No. 1 integration relay from the engine room relay block and junction block assembly.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition D9-1 - 1A-8 Always Below 1 Ω D9-1 or 1A-8 - Body ground Always 10 kΩ or higher
Result: OK
OK
GO TO ECM POWER SOURCE CIRCUIT
(Refer to ECM Power Source Circuit [07/2015 - ] )
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
