Power Seat Power Easy Access System Function does not Operate [09/2014 - ]: Wiring Diagram

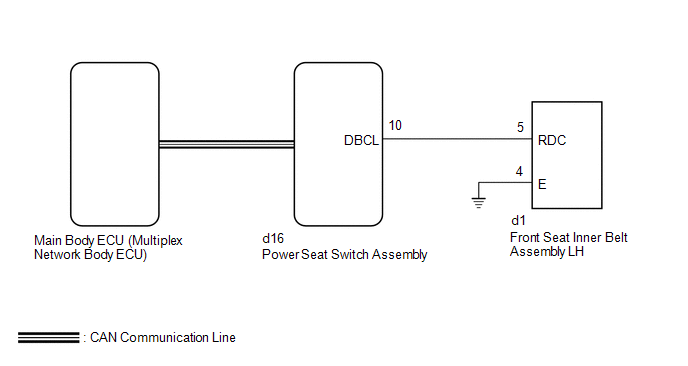

  1. for Driver Side, Standard Seat Type:
    GTY532641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

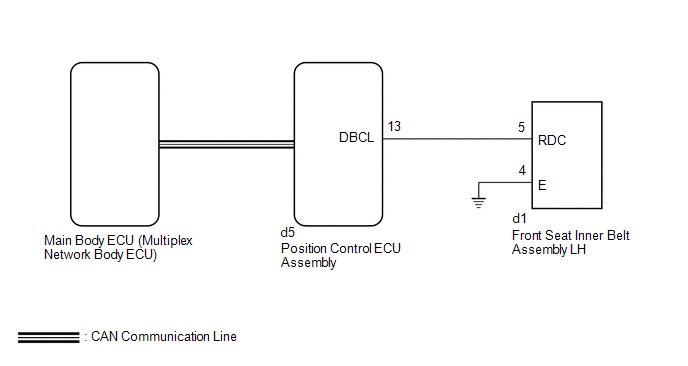

  2. for Driver Side, Sports Seat Type, Luxury Seat Type:
    GTY532643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

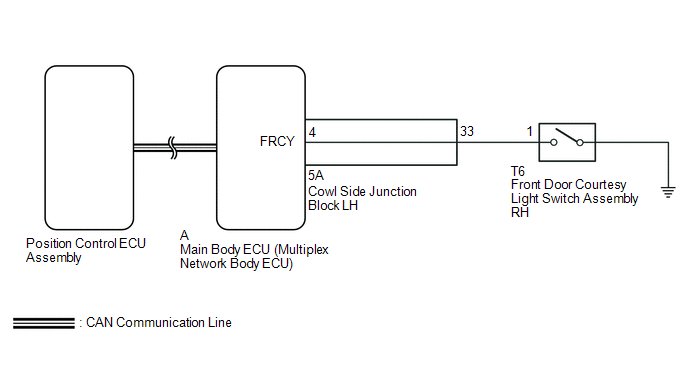

  3. for Front Passenger Side, Luxury Seat Type:
    GTY523685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
