Installation [09/2014 - 10/2015]: Procedure
WARNING: This page is about a different car, the 2015 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL KNOCK SENSOR

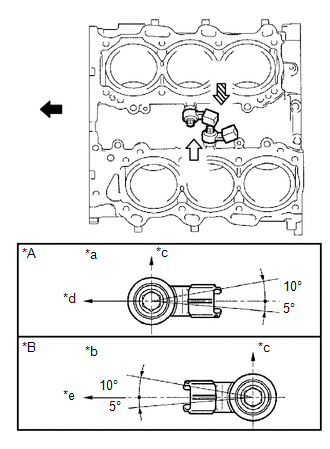

- Install the 2 knock sensors so that they are horizontal as shown in the illustration. Then install the 2 bolts.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
TEXT IN ILLUSTRATION*A for Bank 1 *B for bank 2 *a View A *b View B *c Top *d Engine Front *e Engine Rear Front View A View B NOTE:It is acceptable for the sensor to be tilted +10° to -5°.
HINT:
Perform "Inspection After Repairs" after replacing the knock sensor (Refer to INITIALIZATION [09/2014 - 10/2015] ).
- Connect the 2 knock sensor connectors.
- Install the 2 knock sensors so that they are horizontal as shown in the illustration. Then install the 2 bolts.
- INSTALL FUEL INJECTOR SEAL
(Refer to INSTALLATION [09/2014 - 10/2015] )
