DTC B2659: Side Support Sensor Circuit [09/2014 - ]: Wiring Diagram

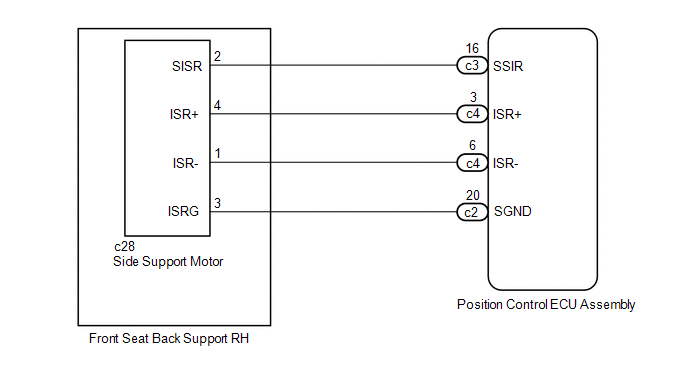

for Driver Side (Sports Seat Type, Luxury Seat Type):
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Front Passenger Side (Luxury Seat Type):
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
