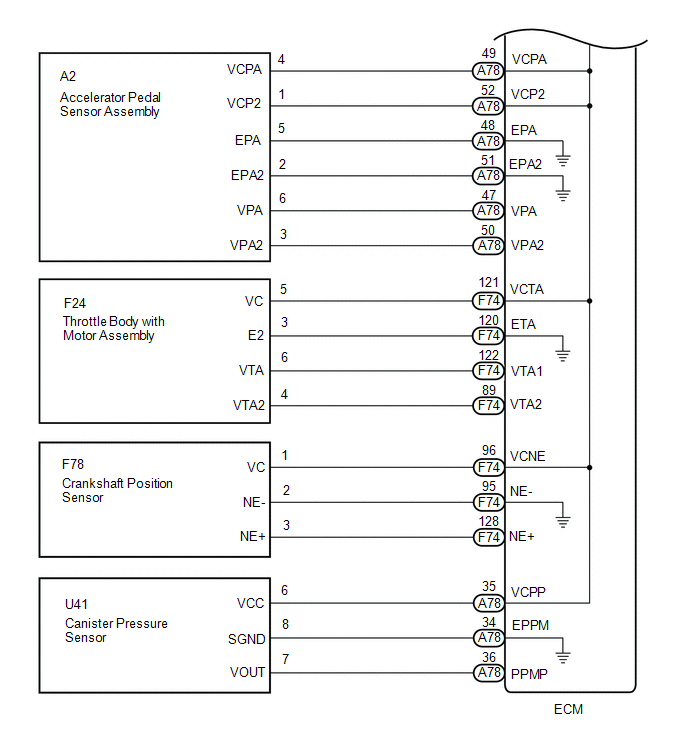

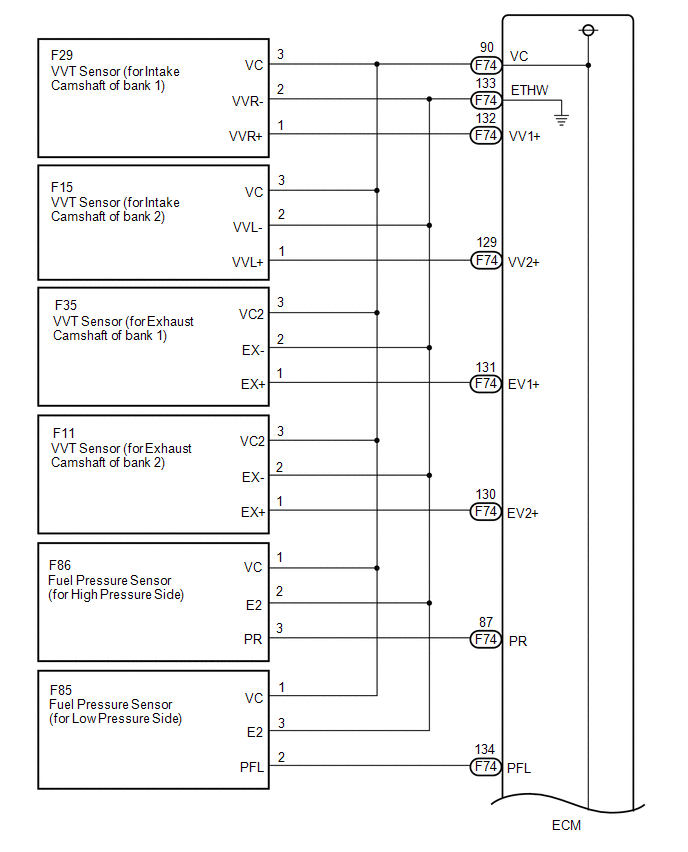

VC Output Circuit [10/2015 - ]: Wiring Diagram

For the circuit diagram of the ECM power source, refer to the ECM power source circuit.
Refer to WIRING DIAGRAM
