Parts Location [10/2015 - ]: Illustration

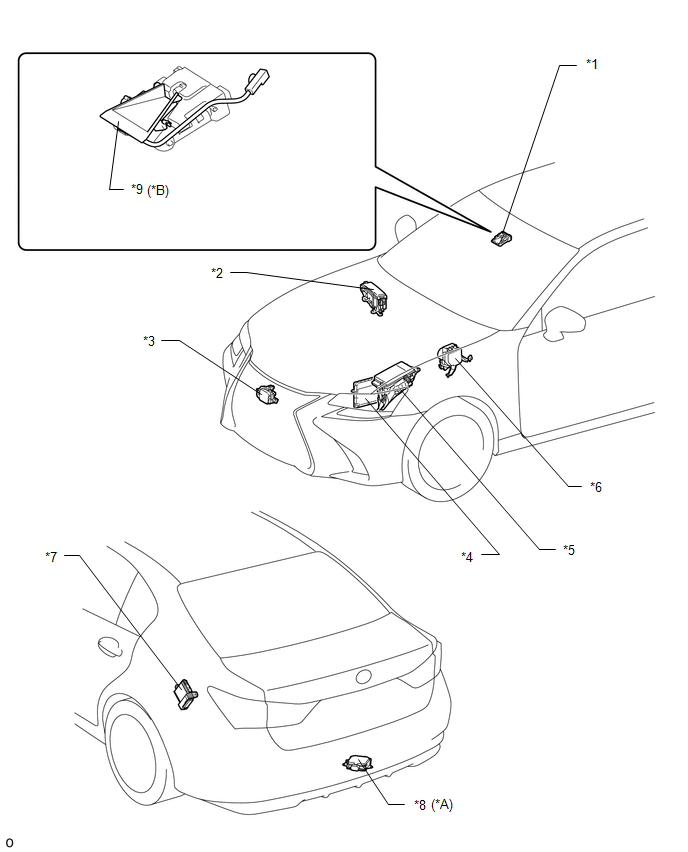

| *A | w/ Dynamic Rear Steering System | *B | w/ Camera Heater |
| *1 | FORWARD RECOGNITION CAMERA | *2 | NO. 1 ENGINE ROOM RLEAY BLOCK - P/I-B NO. 1 FUSE |
| *3 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *4 | ECM |
| *5 | NO. 2 ENGINE ROOM RELAY BLOCK - NO. 2 INTEGRATION RELAY |
*6 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *7 | NO. 1 JUNCTION BLOCK ASSEMBLY - RR-IG1 FUSE |
*8 | REAR STEERING CONTROL ECU |
| *9 | FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY | - | - |

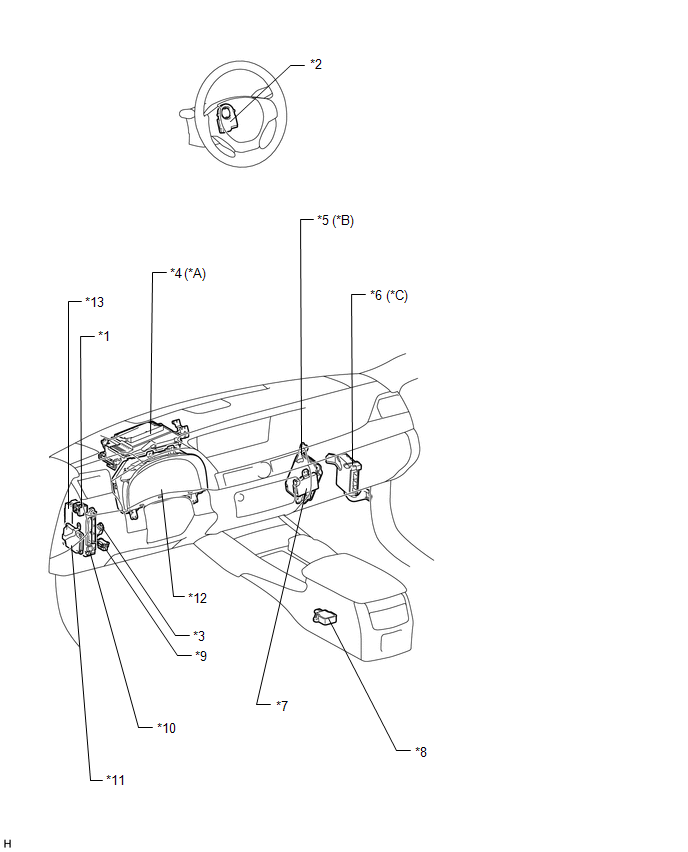

| *A | w/ Headup Display System | *B | w/ Variable Gear Ratio Steering System |
| *C | w/ Adaptive Variable Suspension System | - | - |
| *1 | SKID CONTROL BUZZER ASSEMBLY | *2 | STEERING SENSOR |
| *3 | STOP LIGHT SWITCH ASSEMBLY | *4 | COMBINATION METER MIRROR ECU |
| *5 | FRONT STEERING CONTROL ECU | *6 | ABSORBER CONTROL ECU |
| *7 | NETWORK GATEWAY ECU | *8 | YAW RATE SENSOR |
| *9 | DLC3 | *10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | DRIVING SUPPORT ECU ASSEMBLY | *12 | COMBINATION METER ASSEMBLY |
| *13 | COWL SIDE JUNCTION BLOCK LH - LH ECU-IG FUSE |
- | - |
