System Diagram [10/2015 - ]

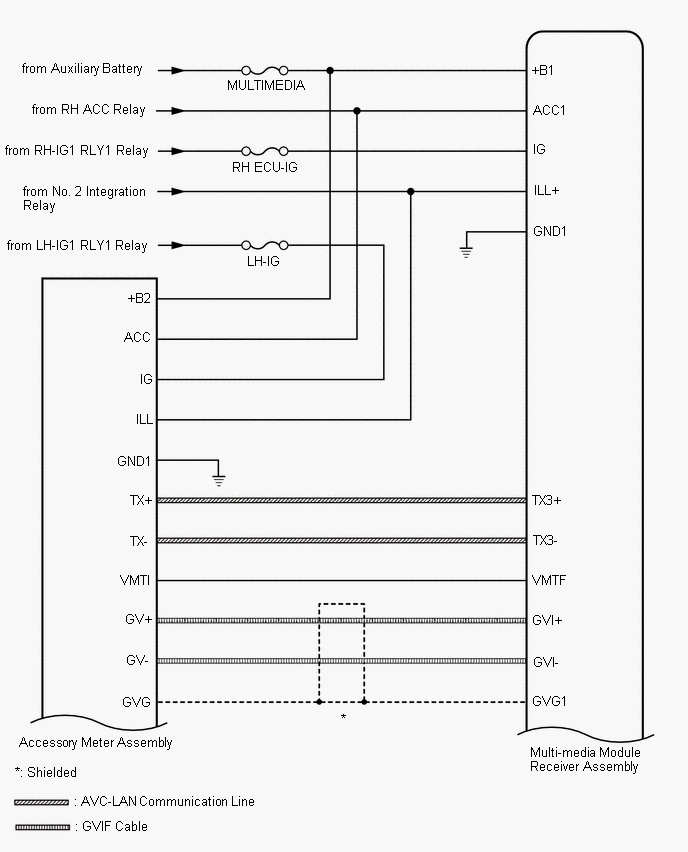

Fig 1: Navigation System Wiring Diagram (1 Of 8)

GTY527741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Navigation System Wiring Diagram (2 Of 8)

GTY522633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

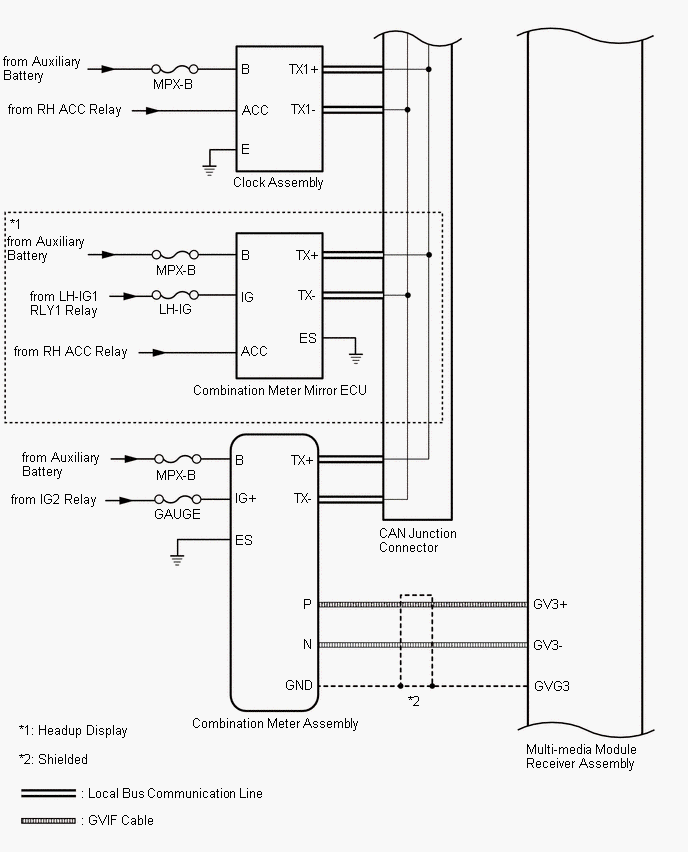

Fig 3: Navigation System Wiring Diagram (3 Of 8)

GTY534256

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

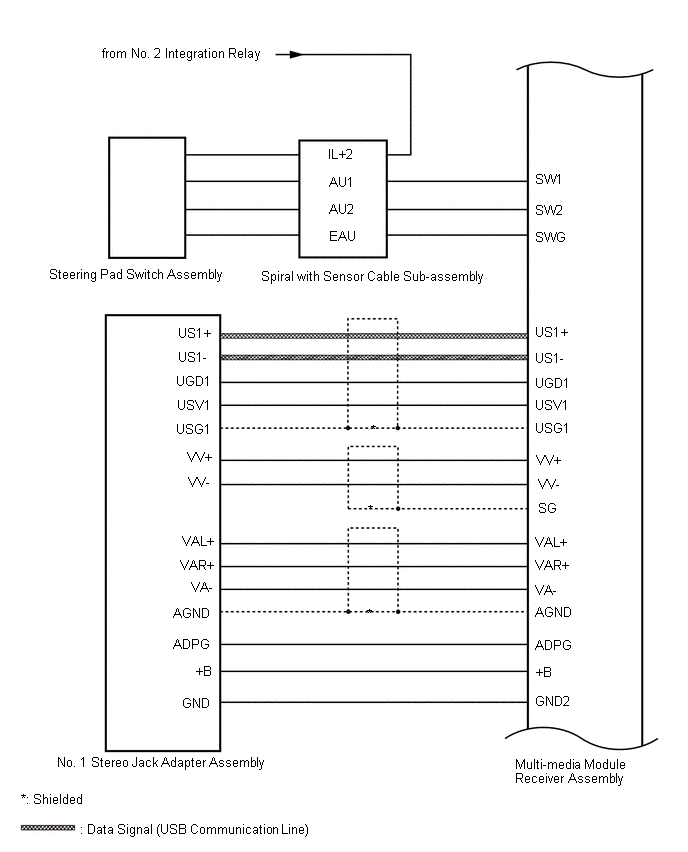

Fig 4: Navigation System Wiring Diagram (4 Of 8)

GTY524213

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

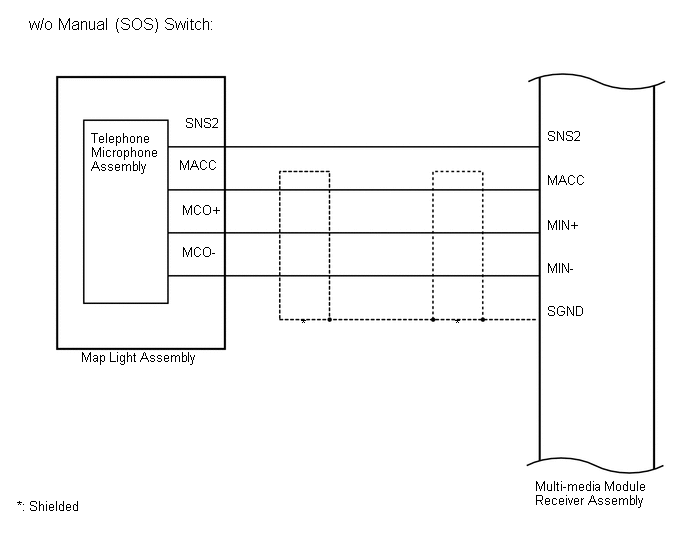

Fig 5: Navigation System Wiring Diagram (5 Of 8)

GTY525477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

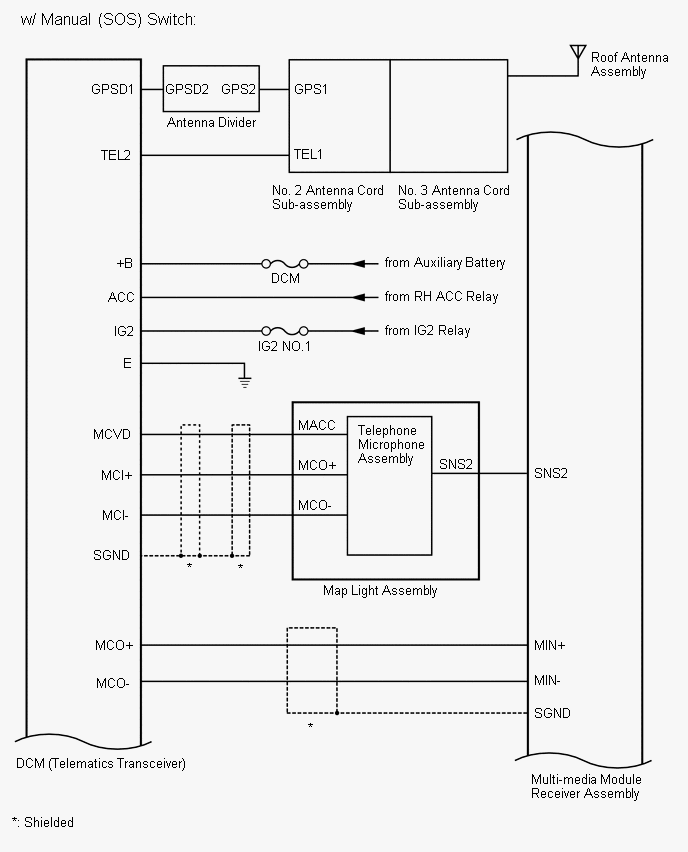

Fig 6: Navigation System Wiring Diagram (6 Of 8)

GTY535054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

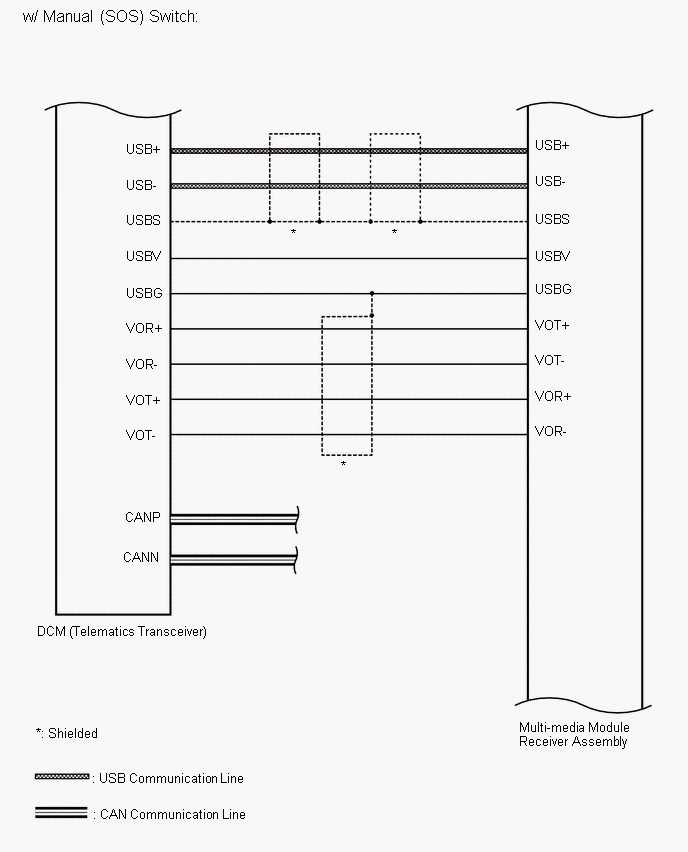

Fig 7: Navigation System Wiring Diagram (7 Of 8)

GTY528033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

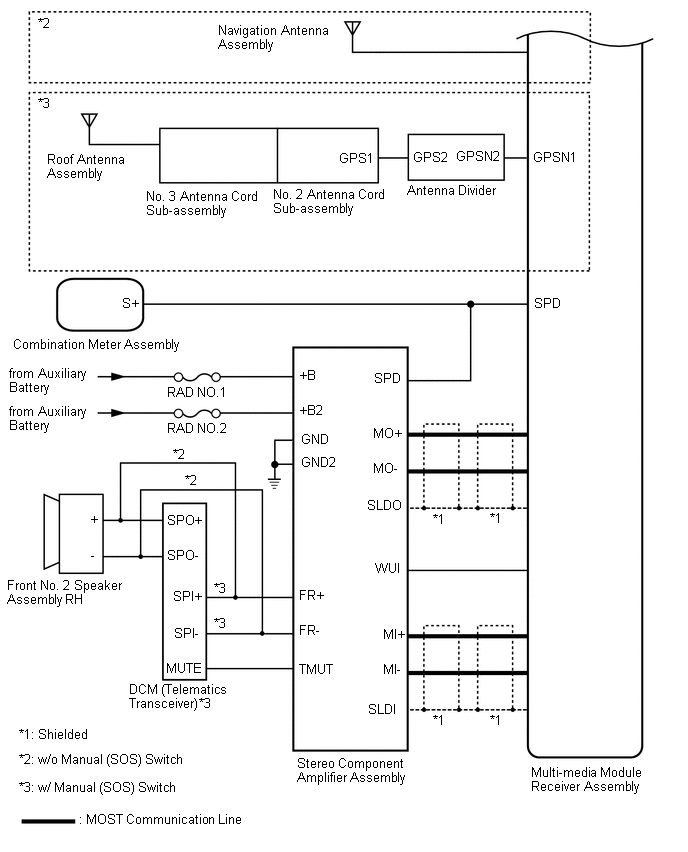

Fig 8: Navigation System Wiring Diagram (8 Of 8)

GTY535731

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
