Power Window Control System (Diagnostic Codes & Symptom Tests)
>>
Power Window Control System
>>
Symptom Tests
>>
Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [09/2014 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [09/2014 - ]: Wiring Diagram

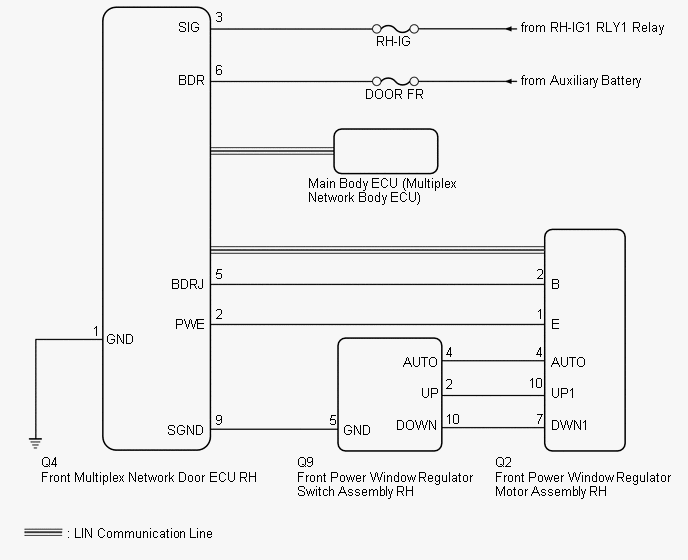

Fig 1: Front Power Window Regulator Motor RH Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
