DTC B27A7: Open in Inside Luggage Compartment Electrical Key Oscillator Circuit [09/2014 - ]: Procedure

1. Turn the power switch off.
2. Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and No. 3 indoor electrical key antenna assembly (inside luggage compartment).

   OK

   Connectors are properly connected.

Result:  NG

NG

CONNECT CONNECTORS PROPERLY

Result:  OK

OK

See step  2

1. Disconnect the N94 and N98 certification ECU (smart key ECU assembly) connectors.
2. Disconnect the T37 No. 3 indoor electrical key antenna assembly (inside luggage compartment) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N98-4 (CLG7) - T37-1 (ANTE7)	Always	Below 1 Ω
   N98-3 (CG7B) - T37-3 (CLGB)	Always	Below 1 Ω
   N94-1 (E) - Body ground	Always	Below 1 Ω
   N98-4 (CLG7) or T37-1 (ANTE7) - Body ground	Always	10 kΩ or higher
   N98-3 (CG7B) or T37-3 (CLGB) - Body ground	Always	10 kΩ or higher

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  3

1. Connect the N94 and N98 certification ECU (smart key ECU assembly) connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

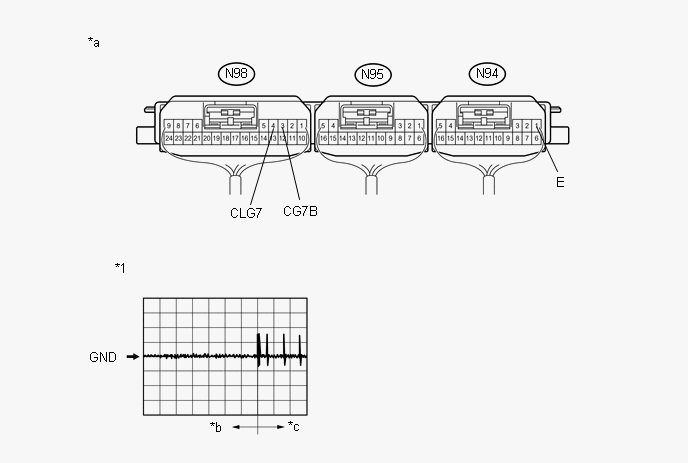

   TEXT IN ILLUSTRATION



   *1	Waveform	-	-
   *a	Component with harness connected (Certification ECU [Smart Key ECU Assembly])	*b	Before driver door lock sensor touched
   *c	After driver door lock sensor touched	-	-

2. Connect the T37 No. 3 indoor electrical key antenna assembly (inside luggage compartment) connector.
3. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Switch Condition	Tool Setting	Specified Condition
   N98-4 (CLG7) - N94-1 (E)	Proceed: Power switch off Electrical key transmitter sub-assembly not inside vehicle All doors closed Driver door lock sensor not touched → touched	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)
   N98-3 (CG7B) - N94-1 (E)	Proceed: Power switch off Electrical key transmitter sub-assembly not inside vehicle All doors closed Driver door lock sensor not touched → touched	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)

Result:  NG

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(Refer to REMOVAL [09/2014 - ] )

Result:  OK

OK

See step  4

1. Temporarily replace the No. 3 indoor electrical key antenna assembly (inside luggage compartment) with a new or known good one (Refer to REMOVAL [09/2014 - ] ).

Result:  NEXT

NEXT

See step  5

1. Clear the DTCs (Refer to DTC CHECK / CLEAR [09/2014 - ] ).

Result:  NEXT

NEXT

See step  6

1. Check for DTCs (Refer to DTC CHECK / CLEAR [09/2014 - ] ).

   OK

   DTC B27A7 is not output.

Result:  OK

OK

END (NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY [INSIDE LUGGAGE COMPARTMENT] WAS DEFECTIVE)

Result:  NG

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(Refer to REMOVAL [09/2014 - ] )
