Smart Access System With Push-Button Start (For Entry Function) (Diagnostic Codes & Symptom Tests)
>>
SMART ACCESS SYSTEM WITH PUSH-BUTTON START(for Entry Function)
>>
Symptom Tests
>>
Key Luggage Compartment Lock-in Prevention Function does not Operate [09/2014 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Key Luggage Compartment Lock-in Prevention Function does not Operate [09/2014 - ]: Wiring Diagram

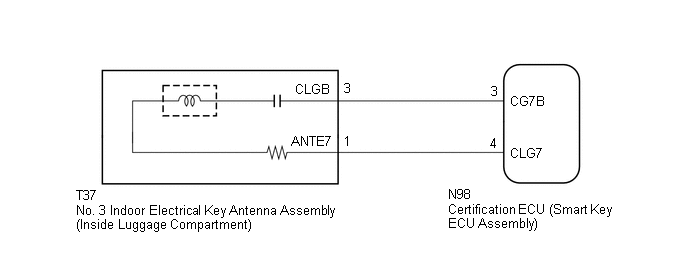

Fig 1: Key Luggage Compartment Lock-in Prevention Function Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
