DTC B2271: Ignition Hold Monitor Malfunction [10/2015 - ]: Wiring Diagram

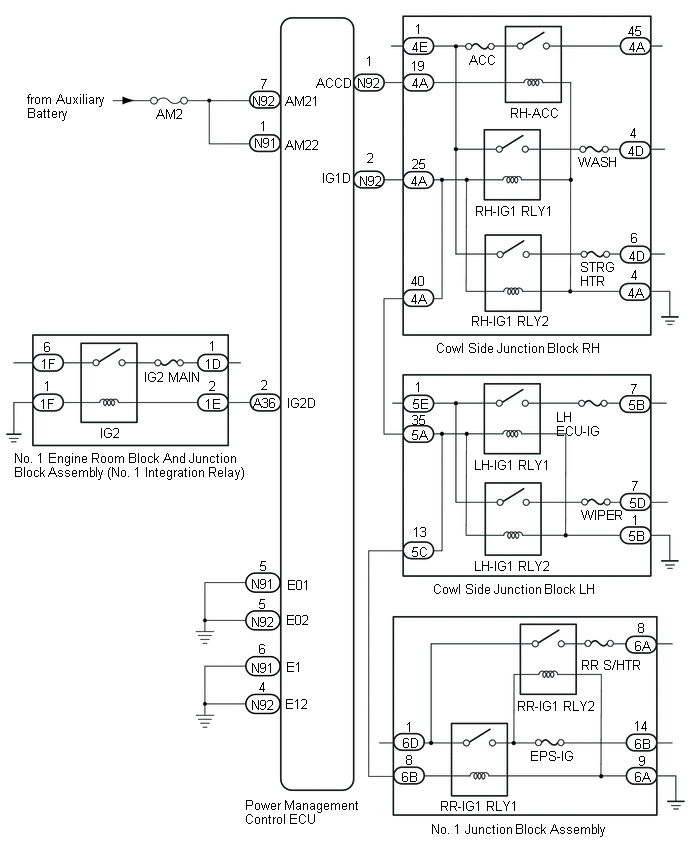

Fig 1: Ignition Hold Monitor Wiring Diagram
GTY538266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
