DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [09/2014 - ]: Wiring Diagram

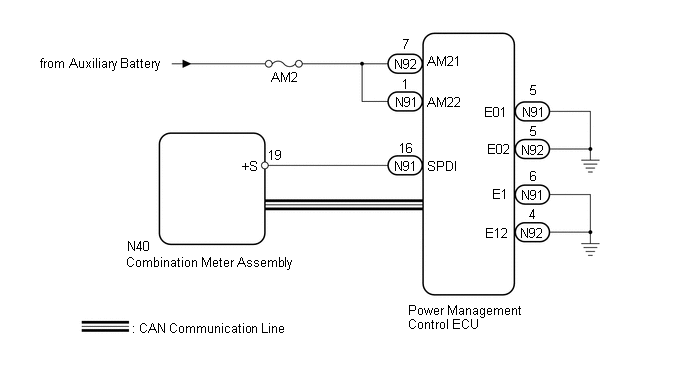

Fig 1: Vehicle Speed Sensor & Signal Wiring Diagram
GTY528910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
