DTC B2284: Brake Signal Malfunction [09/2014 - ]: Procedure

  1. READ VALUE USING TECHSTREAM (STOP LIGHT SWITCH ASSEMBLY)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Power Source Control / Data List.
    5. Read the Data List according to the display on the Techstream.
      POWER SOURCE CONTROL

      Tester Display Measurement Item/Range Normal Condition Specified Condition
      Stop Light Switch1 State of brake pedal/ON or OFF ON: Brake pedal depressed
      OFF: Brake pedal released
      • Use this item to determine whether the stop light switch is malfunctioning.
      • The hybrid control system cannot be started when this item is OFF.
      • When this item is malfunctioning, the hybrid control system can be started by pressing and holding the power switch for a certain period of time.

      OK

      ON (brake pedal is depressed) and OFF (brake pedal is released) appear on the screen.

    Result:  OK

    OK

    GO TO SFI SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

    (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2014 - ] )

    Result:  NG

    NG

    See step  2

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE)

    See step  1 See step  1

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR IN CIRCUIT CONNECTED TO POWER SOURCE

    Result:  OK

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (GROUND)

    See step  2 See step  2

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  OK

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - STOP LIGHT SWITCH ASSEMBLY)
    1. Disconnect the A5 connector from the stop light switch assembly.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N92-10 (STP) - A5-2(L) Always Below 1 Ω
      N92-10 (STP) or A5-2(L) - Body ground Always 10 kΩ or higher
    3. Reconnect the A5 stop light switch assembly connector.
    4. Disconnect the connector from the power management control ECU.

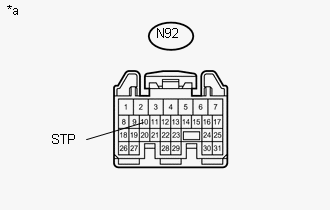

      GTY536927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      N92-10 (STP) - Body ground Brake pedal released 1 V or less
      Brake pedal depressed 9 V or higher
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Power Management Control ECU)

    Result:  OK

    OK

    REPLACE POWER MANAGEMENT CONTROL ECU

    (Refer to REMOVAL [09/2014 - ] )

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
