Power Source Mode does not Change to ON (IG and ACC) [10/2015 - ]: Wiring Diagram

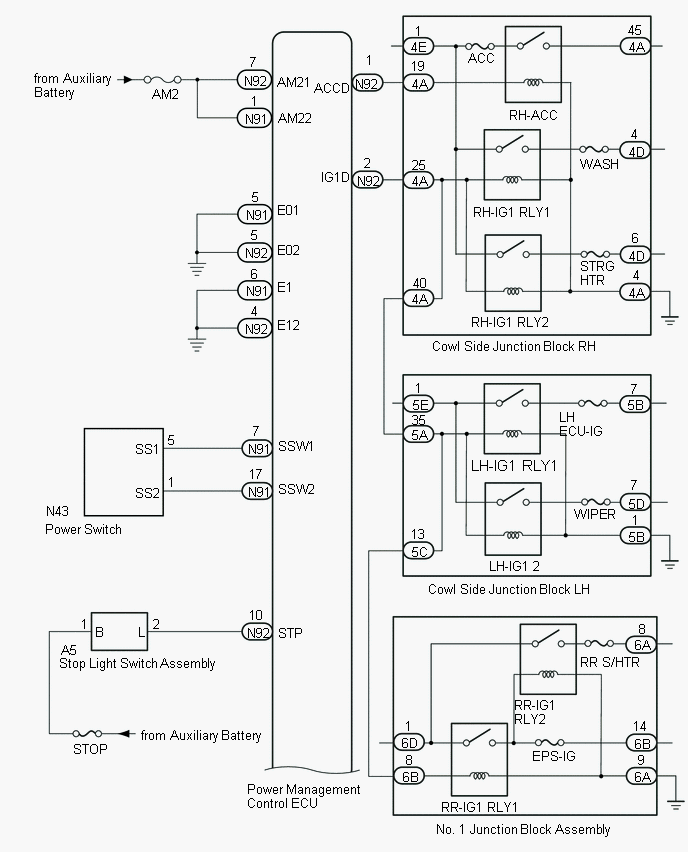

Fig 1: Power Source Mode Wiring Diagram (1 Of 2)
GTY532122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

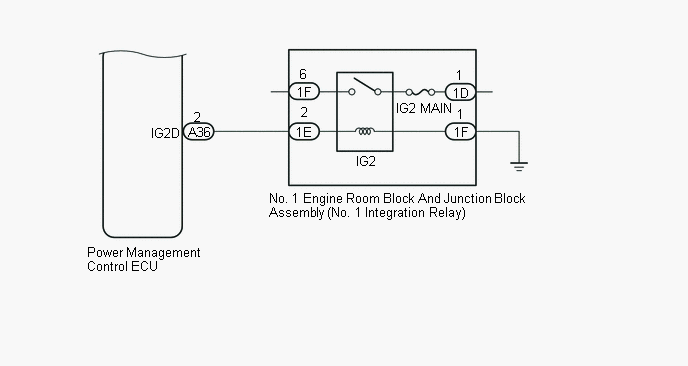

Fig 2: Power Source Mode Wiring Diagram (2 Of 2)
GTY530888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
