Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment [09/2014 - 10/2015]: Wiring Diagram

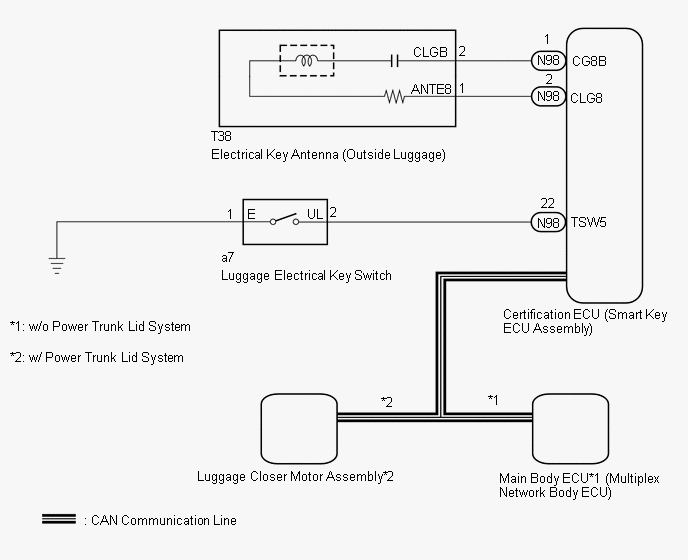

Fig 1: Luggage Compartment Door Entry Wiring Diagram
GTY418830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
