ECM Power Source Circuit [09/2014 - ]: Wiring Diagram

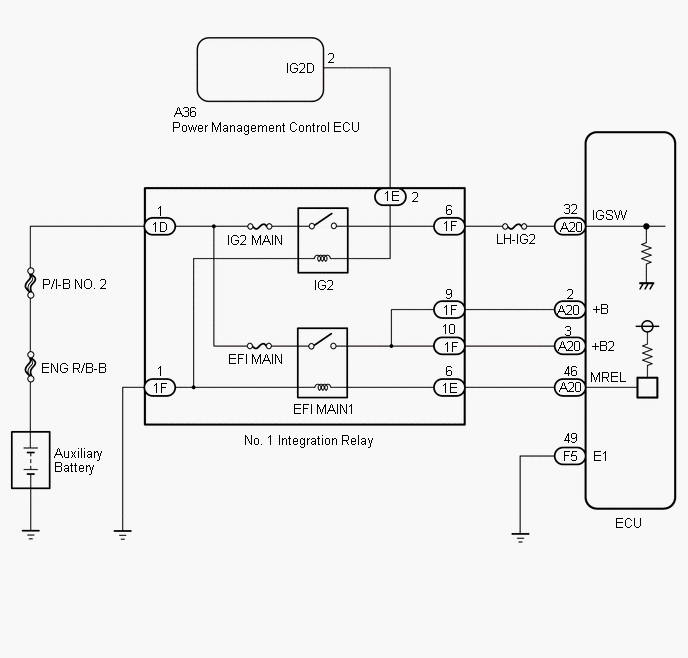

Fig 1: ECM Power Source Circuit Wiring Diagram
GTY527819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
